Home > Products > Specific Purpose > Mean Well 35w 12v switching power supply/35W Single Output Switching Power Supply/power supply 12v

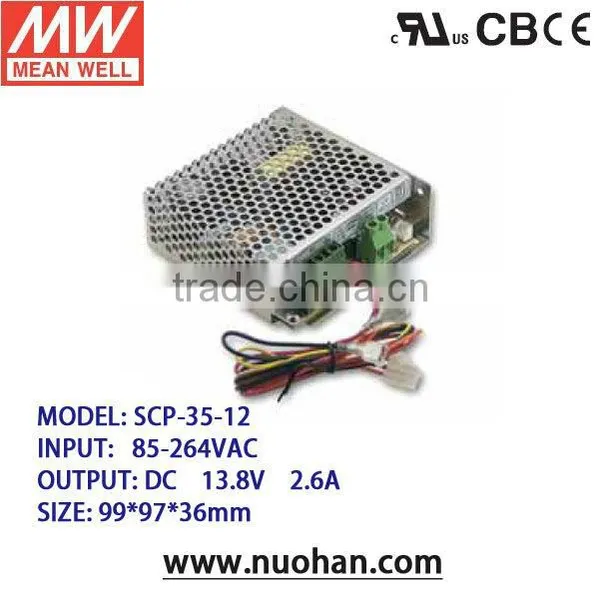

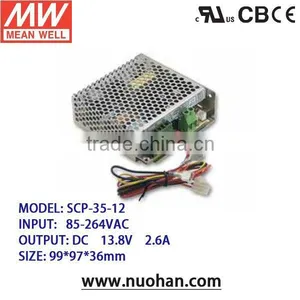

Mean Well 35w 12v switching power supply/35W Single Output Switching Power Supply/power supply 12v
- 900000 Piece / Pieces per Month
- Shanghai or Shenzhen
- T/T L/C D/P D/A Credit Card PayPal
Product Details
Place of Origin: | Zhejiang, China | Brand Name: | Mean Well | Model Number: | SCP-35-12 |
Output Power: | Other, 35.9W | Output Type: | Single | Input Voltage: | Other, 85~264VAC 120~370VDC |
Output Voltage: | 13.8V | Output Frequency: | 47~63Hz | Output Current: | 2.6A |
Product Description
MODEL | SCP-35-12 | |
OUTPUT | DC VOLTAGE | 13.8V |
RATED CURRENT | 2.6A | |
CURRENT RANGE | 0~ 2.6A | |
PEAK 5S Note6 | 3.1A | |
RATED POWER | 35.9W | |
RIPPLE & NOISE (max.) Note.1 | 120mVp-p | |
VOLTAGE ADJ. RANGE | +15,-5% | |
VOLTAGE TOLERANCE | ±2.0% | |
LINE REGULATION | ±1.0% | |
LOAD REGULATION | ±2.0% | |
SETUP ,RISE TIME | 500ms,30ms/230VAC 1200ms, 30ms/115VAC at full load | |
HOLD UP TIME | 50ms / 230VAC 16ms/115VAC at full load | |
INPUT | VOLTAGE RANGE | 85~264VAC 120~370VDC |
FREQUENCY RANGE | 47 ~ 63Hz | |
EFFICIENCY (Typ.) | 83% | |
AC CURRENT (Typ.) | 0.75A/115VAC 0.5A/230VAC | |
INRUSH CURRENT (Typ.) | COLD START 45A | |
LEAKAGE CURRENT | <0.2mA / 240VAC | |
FUNCTION | TEMP.COMPENSATION | By NTC(not provide with the power supply) |
OUTPUT VOLTAGE SENSOR | L=output voltage +0.2~0.7V(AC OK);L=OV(AC Fail) | |
PROTECTION | OVER LOAD | Hiccup mode, recovers automatically after fault condition is removed. |
3.1~4.2Arated output power | ||
OVER VOLTAGE | 16.6~19.3V | |
Protection type : Shut down o/p voltage, re-power on to recovery | ||
ENVIRONMENT | WORKING TEMP. | -20~+60°C (Refer to output load derating curve) |
WORKING HUMIDITY | 20~90% RH non-condensing | |
STORAGE TEMP., HUMIDITY | -40~+85°C, 10~95%RH | |
TEMP. COEFFICIENT | ±0.05%/°C (0~50°C) | |
VIBRATION | 10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes | |
SAFETY & EMC (Note 4) | SAFETY STANDARDS | UL60950-1,CB(IEC60950-1)CCC GB4943 approved |
WITHSTAND VOLTAGE | I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC | |
EMC EMISSION | Compliance to , EN55022 (CISPR22) Class B ; EN61000-3-2.3 | |
EMC IMMUNITY | Compliance to EN61000-4-2,3,4,5,6,8,11, ENV50204, EN55024,EN61000-6-1light industry level, criteria A | |
ISOLATION RESISTANCE | I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH | |
OTHERS | MTBF | 523.3Khrs min. MIL-HDBK-217F (25°C) |
DIMENSION | 99*97*36mm (L*W*H) | |
PACKING | 0.37Kg;45pcs/17.7Kg/1CUFT | |
NOTE | 1.Ripple & noise are measured at 20MHz of bandwidth by using a 12 twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 2.. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 of ambient temperature. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4.Load regulation is measured from 0% to 100% rated load. 5.Line regulation is measured from low line to high line at rated load/ 6.33% Duty cycle maximum within every 15 seconds. Average output power should not exceed the rated power 7.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
