Double reinfored scaleboard
- 2000000 Kilohertz per Month
- Tianjin
- T/T Credit Card
- Nak80/10ni3mncual die steel
- HPM75 mould steel
- S7 Performance Cold Working Die Steel
- AISI 4140 Hot Rolled Alloy Round Bar
- The manufacturer of the anchor bolts for the iron tower provides U-shaped screw embedded parts, steel structure embedded prefabricated parts, and samples can be provided according to the drawings
- Production of Monel400 N04400 Monel K-500 N05500 Monel Alloy Bar Round Steel
Product Details
Place of Origin: | Hebei, China | Brand Name: | RN | Model Number: | RN-REO-6 |
Product Description
Welcome to visit our Ronen company! Reinforced mesh welding machine
Our main products:
Our production series:
1) NZ-HA high wear-resistant & self-lubricating nylon oily nylon
2) Rare earth oily nylon series
3) MC oily nylon series
Double reinfored scaleboard
Application:
High wear resistance self lubricating casting type oily nylon is a new kind of engineering plastic which belongs to polyamide polymers. The comprehensive performance and utility ranks No. 1 among the 5 kinds of engineering plastics due to the following characters: self-lubricating, high wear resistance, shock resistance, noise reduction. It can widely replace non-ferrous alloys such as Tin-Zinc-Copper alloys, aluminum alloys, zinc-based alloys, SS, etc, for making kinds of mechanical structure parts, shock resistance parts, transmission parts, etc. specially suitable for making bearings bush, sliding bearings, lining baskets, gears, sliding blocks, gear wheels, turbines, guiding sleeves,etc, which is used in industries such as mining, metallic, rolling mills, chemical rubber, textile machine manufactures.
Properties:
1. this high wear resistance self lubricating oily nylon is one kind of polymer materials with average molecular No. is more than one hundred thousand, which is 5 times than normal nylon material. The comprehensive performance is superior to other thermal engineering plastic.
2. the density is 1.2 at 25℃, the weight is only 1/8 of the tin-zinc-copper alloy parts in same volume. It is easy installation and reduction the cost.
3. high mechanical strength and impact resistance. The simply supported beam notch impact strength is up to 6KJ/squre, which is 4 times of tin-zinc-copper alloys.
4. the fine mineral oil additives are added in the polymerization process to increase self-lubricating and reduce friction coefficient. The friction coefficient is 1/3 of ordinary nylons. Is 1/2 of zinc-copper alloys. The wear weight after milling with 45# steel for 2 hours is 2.5*10-3, which is 1/100 of zinc-copper alloys.
5. the viscose softening point is 212℃, heat deformation temperature is 200℃, highest continuous heat-resistance temperature is 170℃;
6. insulated, oxidation resistance, corrosion resistance, aging resisting.
Technical index:
| tensile strength | breaking elongation | elastic modulus | bending strength | compression strength | hardness | density | melting point | friction coefficient | impact strength | continuous thermostable temp. |
| 86Mpa | 40% | 1.9-3.2Gpa | 136Mpa | 125Mpa | HB90 | 1.2 | 240℃ | 0.1 | 6.5KJ/squre | 170-230℃ |
counter-current classifier&mixed pelletizing technology:
In order to improve various advantages of pelletizing by mixure, we developed pellet-grouping sintering technology characterized by pelletizing plates and fuel adding, and mini-pellets sintering technology characterized by lowering the angle of rotating drum mixer, adding feeding scrapper and retention ring and melting/burning separation. In the last two years, the mini-pellets sintering technology is widely applied. Many people neglected that mixed material force state is critical during the process. Based on this situation, we developed the counter current classifier&mixed pelletizing technology:
By changing the inside structure of mixer, we manage to change the mixed pellets force state and reduce the screw pitch of movement of pellets to prolong the mixture pelletizing time,increase materials rolling distance and improve the pelletizing effect.
Adopt built-in subsection and classification method to achieve automatic classification of mixture’s particle size, make oversize particles go forward the outside and small ones return to pelletizing.
Apply new lining technology to completely solve the root accumulation problem of mixer, achieve complete recycling of materials, improve pelletizing effect and mixer’s effective power.
| traditional process | pellet craft | traditional counter current | mini pellet counter current |
angle of mixer | 1.5 | 0.98 | 1.5 | 0.98 |
capacity | 240t/h | 240t/h | 240t/h | 240t/h |
filling rate | 11.91% | 11.91% | 11.91% | 11.91% |
rotating speed | 7.2r/min | 7.2r/min | 7.2r/min | 7.2r/min |
power | 143kw | 193kw | 163kw | 222kw |
pelletizing time | 231s | 353s | 264s | 432s |
rolling distance | 126m | 193m | 183m | 254m |
<3mm | 19.7% | 15.4% | 15.6% | 12.1% |

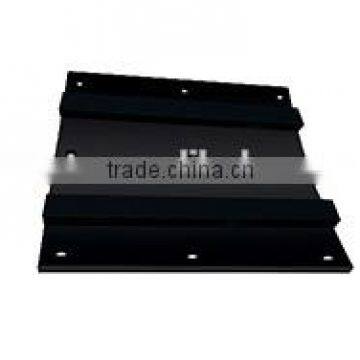

Based on the above technology, we suggest our single/double straight bars lining plate/scale board. This kind of lining plate can make material current form pathway of resultant force, effectively prolong the mixture time in the drum, to improve the uniformity. Due to two pcs of raised bars parallel with inside axis of the drum, the materials will be accumulated and form a material lining, which can prevent the materials direction friction with the lining plate and effectively prevent damage of inner wall of mixer.
After-sales Service |
1. Guarantee time: one year since machine was at buyer's factory but within 18 months against B/L date. |
Why Choose Us?
Advantages we have:
1.Have cooperated with a lot of importers for many years.
2.Experienced in doing business with big customers
3.Fast delivery, 15 working days/20'GP
4.Advanced production lines and inspection team to do the quality control.
5.Professional R&D team and sales department for your service
Benefit you get:
A. Stable quality- Coming from good materials and technique
B. Lower price- Not cheapest but the lowest at the same quality.
C. Good service- Satisfactory service before and after sale
D.Delivry time- 15-20days for mass production.
1. The bracket and auxiliary equipments will be with plastic package, spare parts in carton box.
2. The main machine will be fixed in the container by steel wire rope to make it stable.
3. It needs one 40"HC for shipment.
