Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell Harsh Environment 36V Transformer HEP-600-36 High Power Power Supply

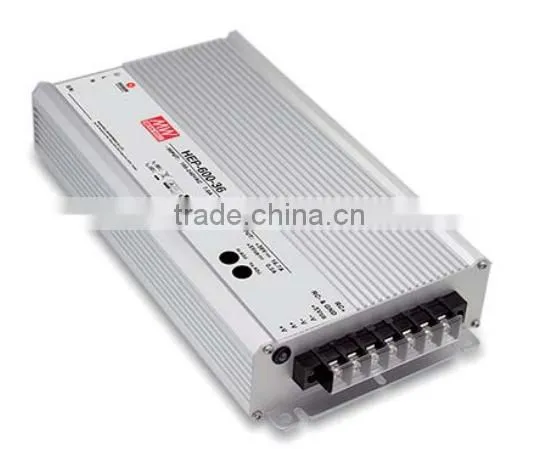

Meanwell Harsh Environment 36V Transformer HEP-600-36 High Power Power Supply

Name: Meanwell Harsh Environment 36V Transformer HEP-600-36 High Power Power Supply
Brand: Meanwell
SKU: 117435567
Availability: InStock

Meanwell Harsh Environment 36V Transformer HEP-600-36 High Power Power Supply thumbnail-1

Meanwell Harsh Environment 36V Transformer HEP-600-36 High Power Power Supply photo-1

US$ 1 - 50 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Taiwan, China

Brand Name:

Meanwell

Model Number:

HEP-600-36

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Taiwan, China

Brand Name Meanwell

Model Number HEP-600-36

Output Power Other, 601.2W

Output Type Single

Input Voltage Other, 90 ~ 305VAC 127 ~ 431VDC

Output Voltage 36V

Output Frequency 50/60Hz

Output Current 16.7A

Product Overviews

Original MEAN WELL

HEP-600-36

Output: 36V 16.7A 601.2W

Input: 90 ~ 305VAC 127 ~ 431VDC

Warranty: 6 years

Certificates: UL,CB,CE,EMC,TUV

Specifications

MODEL		HEP-600-36
OUTPUT	DC VOLTAGE	36V
	RATED CURRENT	16.7A
	CURRENT RANGE	0 ~ 16.7A
	RATED POWER	601.2W
	RIPPLE & NOISE (max.) Note.2	250mVp-p
	VOLTAGE ADJ. RANGE	30.6 ~ 37.8V
	CURRENT ADJ. RANGE	Can be adjusted by internal potentiometer
	CURRENT ADJ. RANGE	8.3 ~ 16.7A
	VOLTAGE TOLERANCE Note.3	±1.0%
	LINE REGULATION	±0.5%
	LOAD REGULATION	±0.5%
	SETUP, RISE TIME Note.5	500ms, 80ms at full load 230VAC /115VAC
	HOLD UP TIME (Typ.)	15ms at full load 230VAC /115VAC
INPUT	VOLTAGE RANGE Note.4	90 ~ 305VAC 127 ~ 431VDC
	FREQUENCY RANGE	47~63HZ
	POWER FACTOR (Typ.)	PF>0.98/115VAC, PF>0.95/230VAC, PF>0.93/277VAC at full load
	EFFICIENCY (Typ.)	95.5%
	AC CURRENT (Typ.)	7A / 115VAC 3.3A / 230VAC 2.9A / 277VAC
	INRUSH CURRENT (Typ.)	COLD START 70A(t =1000 s measured at 50% I ) at 230VAC
	LEAKAGE CURRENT	<0.75mA / 277VAC
PROTECTION	OVER CURRENT	105 ~ 125%
	OVER CURRENT	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	SHORT CIRCUIT	Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	39.5 ~ 43.5V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Shut down o/p voltage, re-power on to recover
FUNCTION	5V STANDBY	5VSB : 5V at 0.5A ; tolerance ± 5%, ripple : 100mVp-p(max.)
FUNCTION	REMOTE ON/OFF CONTROL	Power on : "Hi" >2 ~ 5V or Open circuit Power off : "Low" <0 ~ 0.5V or Short circuit
ENVIRONMENT	WORKING TEMP.	-40~+70℃ (Refer to derating curve)
	WORKING HUMIDITY	20~95% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85℃, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/℃(0~ 60℃)
	VIBRATION	20 ~ 500Hz, 10G 12min./1cycle, period for 72min. each along X, Y, Z axes
SAFETY&EMC (Note 6.)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3.75KVAC I/P-FG:2KVAC O/P-FG:1.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH
	EMC EMISSION	Compliance to EN55022 (CISPR22) Class B, EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level, criteria A
OTHERS	MTBF	76.9K hrs min. MIL-HDBK-217F (25℃ )
	DIMENSION	28014448.5mm (LWH)
	PACKING	3.9Kg; 4pcs/16.6Kg/0.9CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. Derating may be needed under low input voltages. Please check the derating curve for more details. 5. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time. 6. The power supply is considered as a component that will be operated in cpmbination with final equipment.Since EMC performance will be affected by the complete installation,the final equipment manufactures must re-qualify EMC Directive on the complete installation again. 7. The ambient temperature derating of 5℃/1000m is needed for operating altitude greater than 2000m(6500ft). 8.Refer to warranty statement.
