CNC Wedged Wire Johnson Mesh Welding Machine

CNC Wedged Wire Johnson Mesh Welding Machine photo-1
US$ 80,000 - 180,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Hebei, China
Material:
Stainless Steel Wire
Type:
Welded Mesh
Payment & Shipping
Payment Methods:
Port of Shipment:
Tianjin
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Hebei, China
Material Stainless Steel Wire
Type Welded Mesh
Application Screen
Wire Diameter 1200
Technique Welded Mesh
Model Number RN1200
Brand Name Ronen
Product Description

 Welcome to visit Ron-en company! ( wedged wire johnson mesh welding machine  )

Wire mesh filter welding machine (600*6000)



The feature of our wire mesh filter machine: low noise, low energy consumption, steady function, and safety.

1) the electirc system adopts Mitsubishi E60

2) the feeding spindle and the main spindle adopt Mitsubishi AC servo motors and drivers.

We offer perfect service and technical training for free.

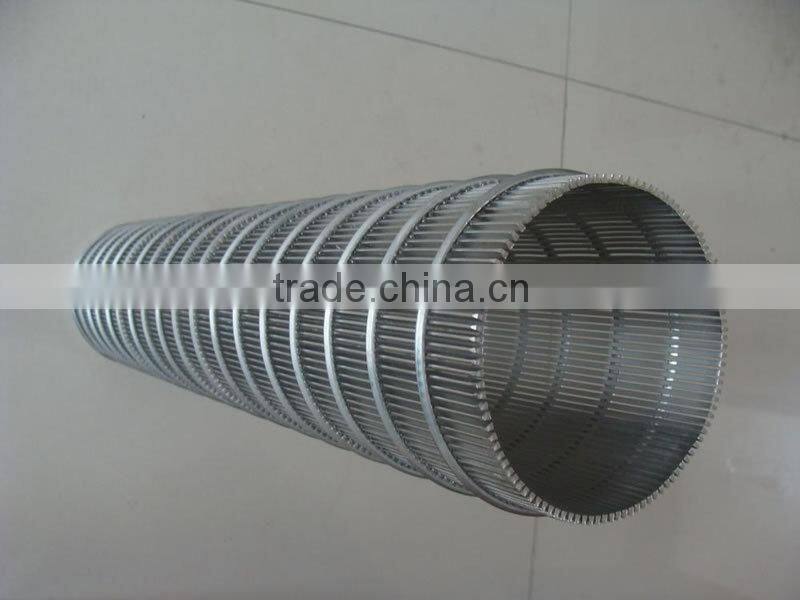

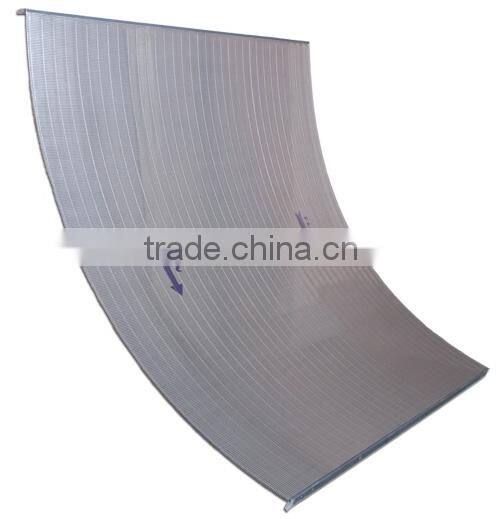

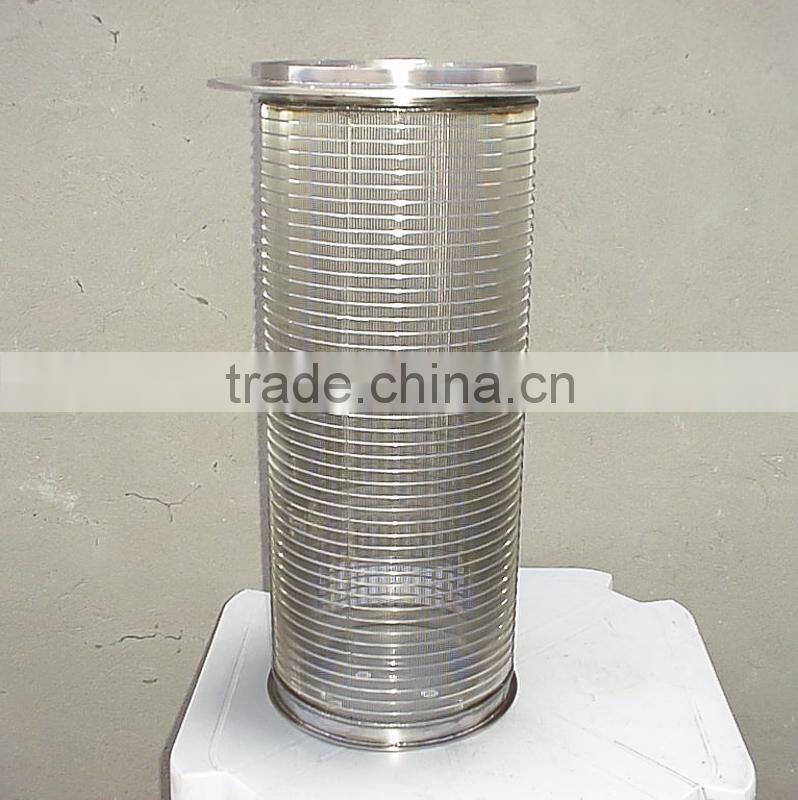

Applications: making filter tubes of oil filtering, water cleaning and water filtering, as well as mine mesh, and medical and chemical filters.



Main technical data:

Diameter range50-200mm100-400mm400-1200mm
Voltage3 phase 380v 50hz3phase 380V 50hz3phase 380V 50hz
Power100kva100 kva100 kva
Crack width≥0.1mm≥0.2mm≥0.25mm
Tube length≤6000mm≤6000mm≤4000mm
Welding material   stainless steel, low carbon steel wire
Filter diameter1.8-5.0mm1.8-5.0mm1.8-5.0mm
Support diameter1.8-5.0mm1.8-5.0mm1.8-5.0mm
Weight10000kgs11000kgs13000kgs

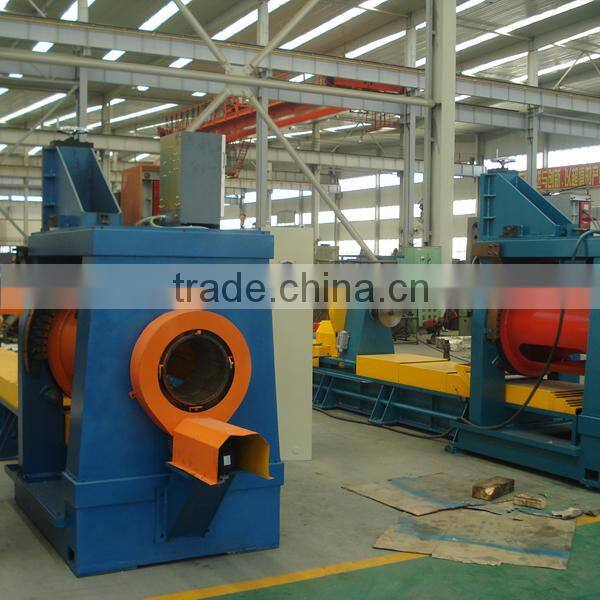

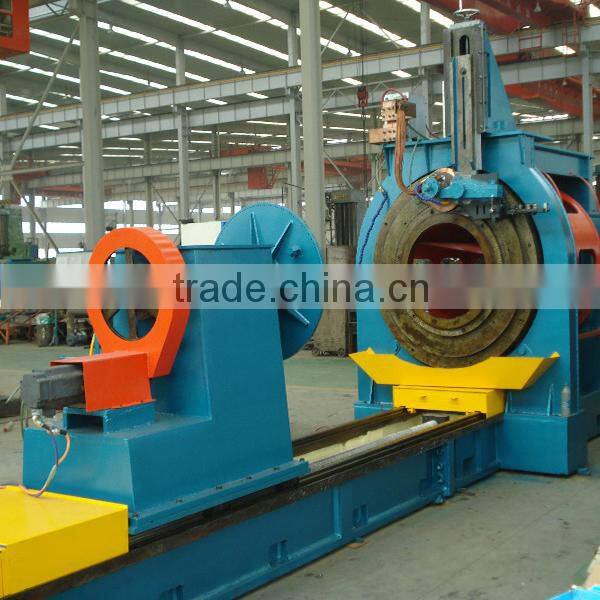

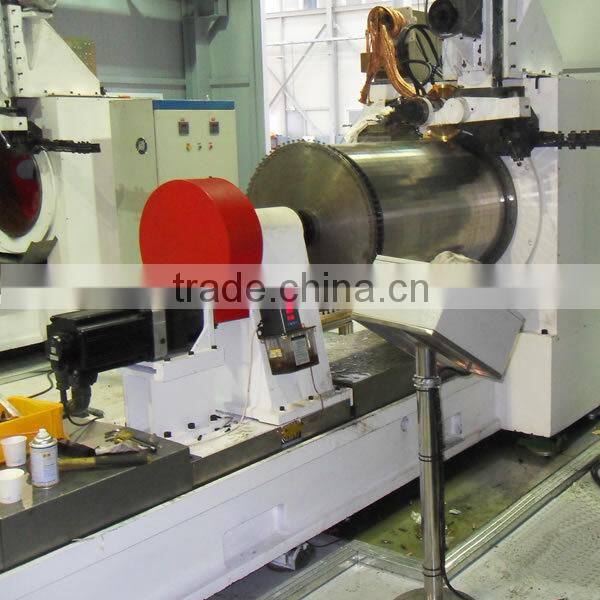

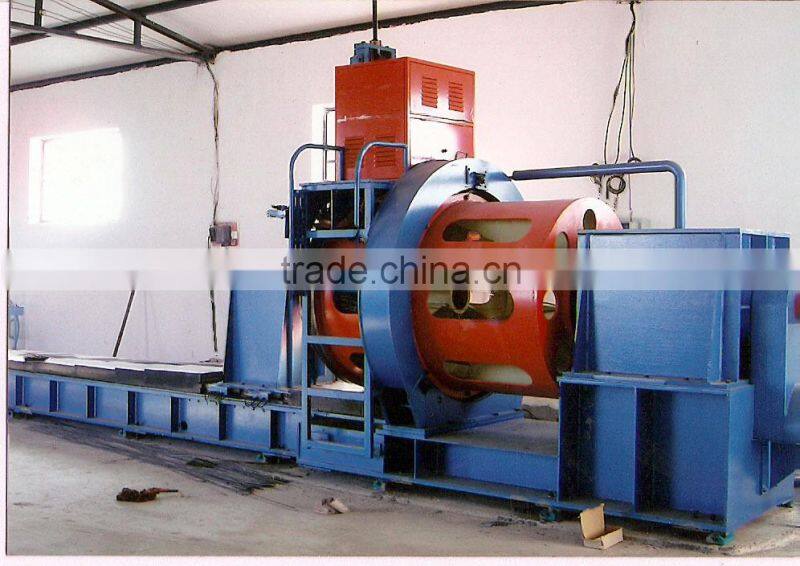

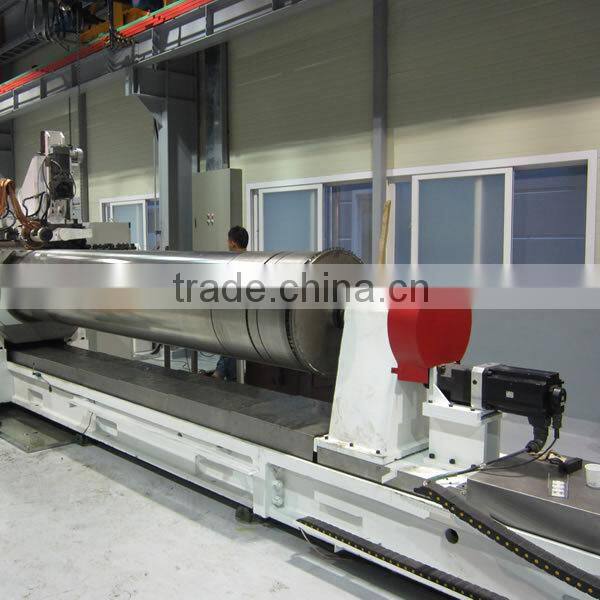

Photos show:

CNC wedged wire johnson mesh welding machineCNC wedged wire johnson mesh welding machineCNC wedged wire johnson mesh welding machineCNC wedged wire johnson mesh welding machineCNC wedged wire johnson mesh welding machineCNC wedged wire johnson mesh welding machine



CNC wedged wire johnson mesh welding machineCNC wedged wire johnson mesh welding machineCNC wedged wire johnson mesh welding machineCNC wedged wire johnson mesh welding machine

If you are interesting for above machines, would like to talk details with you.

CNC wedged wire johnson mesh welding machine
