Original MEAN WELL
IRM-30-12
Output: 12V 2.5A 30W
Input: 85 ~ 264VAC
Warranty: 3 years
Certificates: UL,CB,CE,EMC,TUV
MODEL |
IRM-30-12 |
|
OUTPUT |
DC VOLTAGE |
12V |
RATED CURRENT |
2.5A |
|
CURRENT RANGE |
0 ~ 2.5A |
|
RATED POWER |
30W |
|
RIPPLE & NOISE (max.) Note.2 |
150mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±2.5% |
|
LINE REGULATION |
±0.5% |
|
LOAD REGULATION |
±0.5% |
|
SETUP, RISE TIME |
1000ms, 30ms/ 230VAC 1500ms, 30ms/115VAC at full load |
|
HOLD UP TIME (Typ.) |
40ms/230VAC 12ms/115VAC at full load |
|
INPUT |
VOLTAGE RANGE |
85 ~ 264VAC |
FREQUENCY RANGE |
47 ~ 440Hz |
|
EFFICIENCY (Typ.) |
88% |
|
AC CURRENT (Typ.) |
0.75A/115VAC 0.5A/230VAC |
|
INRUSH CURRENT (Typ.) |
COLD START 25A/115VAC 45A/230VAC |
|
LEAKAGE CURRENT |
<0.25mA/240VAC |
|
PROTECTION |
OVER LOAD |
105% ~ 160% rated output power |
Protection type : Hiccup mode, recovers automatically after fault condition is removed | ||
OVER VOLTAGE |
12.6 ~ 16.2V |
|
Protection type : Shut off o/p voltage, clamping by zener diode | ||
ENVIRONMENT |
WORKING TEMP. |

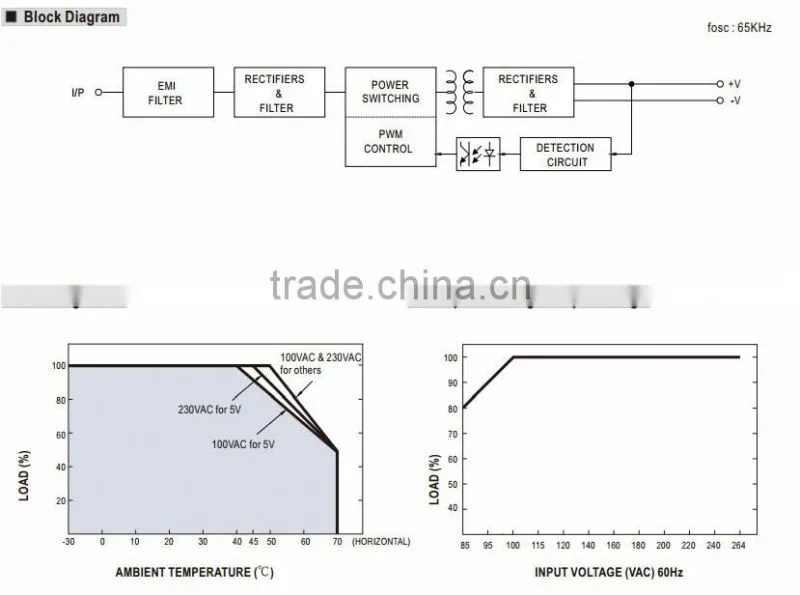

-30~+70℃ (Refer to derating curve) |
WORKING HUMIDITY |
20~90% RH non-condensing |
|
STORAGE TEMP., HUMIDITY |
-40~+85℃, 10~95%RH |
|
TEMP. COEFFICIENT |
±0.03%/℃(0~50℃) |
|
VIBRATION |
10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes |
|
|
SAFETY&EMC (Note 4) |
SAFETY STANDARDS |
UL60950-1, TUV EN60950-1 approved |
WITHSTAND VOLTAGE |
I/P-O/P:3KVAC |
|
ISOLATION RESISTANCE |
I/P-O/P:100M Ohms / 500VDC / 25℃/ 70% RH |
|
EMC EMISSION |
Compliance to EN55022(CISPR22) Class B, EN61000-3-2,-3 |
|
EMC IMMUNITY |
Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024, heavy industry level (surge L-N: 1KV), criteria A |
|
OTHERS |
MTBF |
593.3Khrs min. MIL-HDBK-217F (25℃) |
DIMENSION |

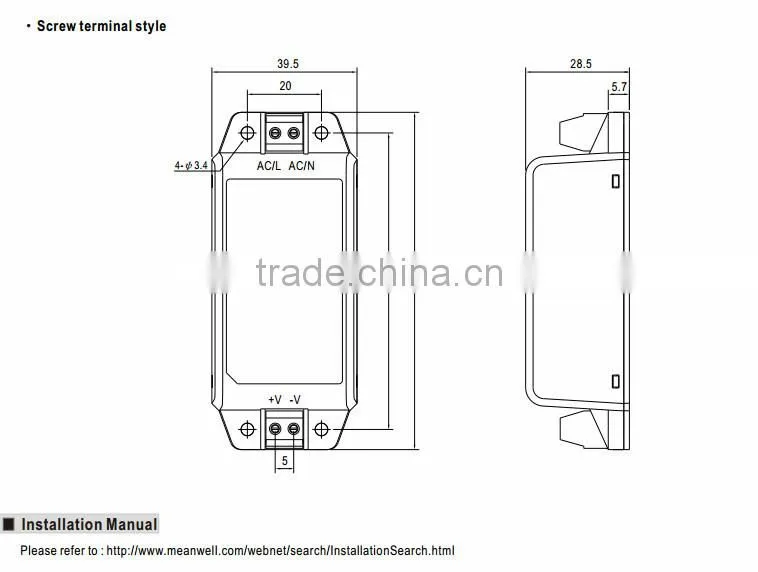

PCB mounting style : 69.5*39*24mm (L*W*H) Screw terminal style : 91*39.5*28.5mm (L*W*H) |
|
PACKING |
PCB mounting style : 0.109Kg;144pcs/16.7Kg/0.97CUFT Screw terminal style :0.12Kg;120pcs/15.4Kg/0.74CUFT |
|
NOTE |
1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25℃ of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance: includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|
