Marine Flake Ice Machine/salt Water Flake Ice Machine

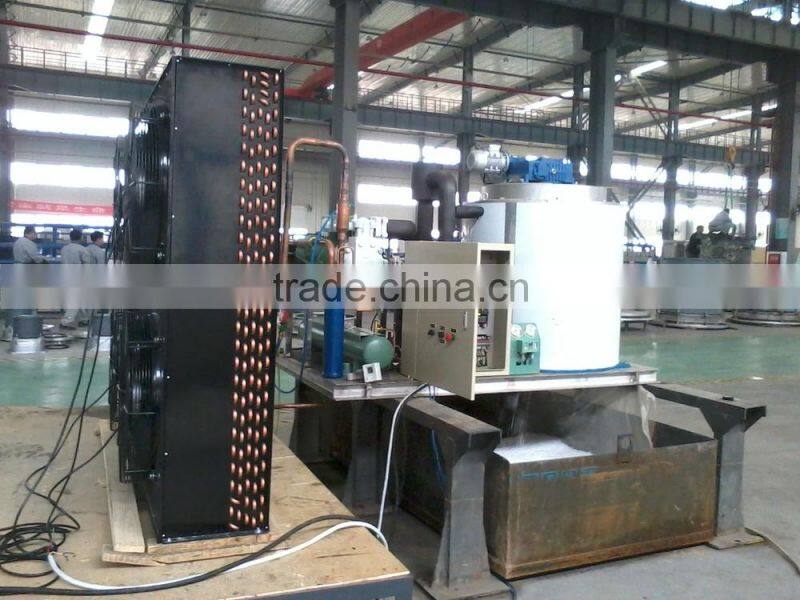

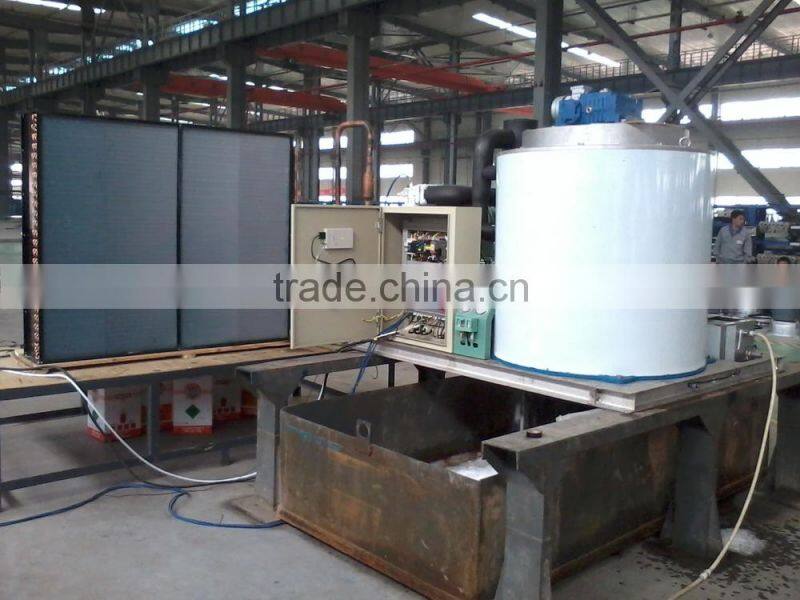

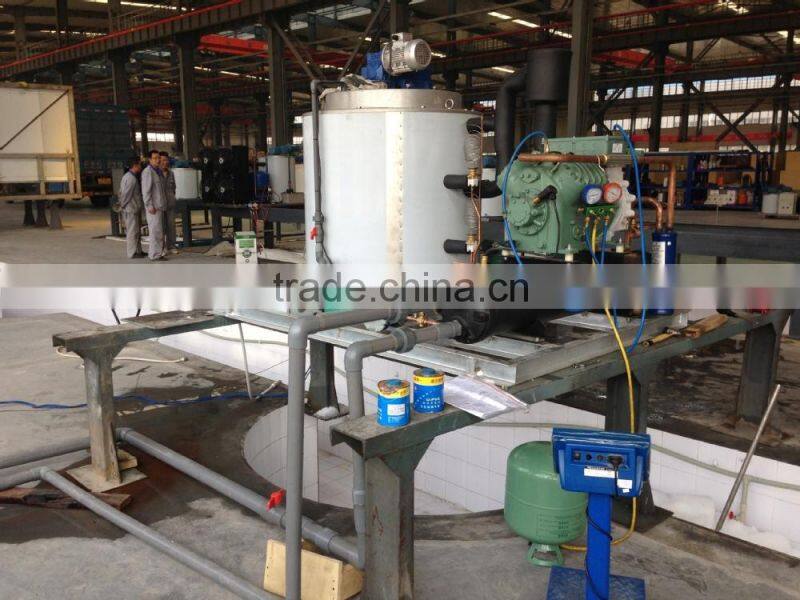

A. Full View of Flake Ice Machine TKPB - 10

B. Range of Condition for Flake Ice Machine BFI - 50

1. Max. Ambient Temp: +500C

2. Relative Humidity: 85%

3. Supply Water Temp: 350C

4. Evaporator Temp: -200C

5. Condensing Temp: 400C

4. Power Supply: 230V/3Phase/50Hz

5. Refrigerant: R22

6. Compressor Type: Semi-hermetic piston compressor

7. Cooling Mode: Water cooling condenser

C. Data Analysis For Flake Ice Machine BFI - 50

1. Daily output 5000kg/day

2. Weight 1100kg

3. Measurement Flake ice machine Machine:1650mm*1550mm*1650mm

    Cooling tower: 1650mmx1775mm

4. Noise 55dB

5. Compressor: Model Semi-hermetic piston compressor

    Brand name: Germany Bitzer compressor

    Type: 4G-20.2

    Power: 16.04 kW

    Cooling capacity: 43.7 kW

6. Reducer power 0.75kw

7. Water pump power 0.37kw

8. Brine pump power 0.016kw

9. Cooling tower water pump 2.4kw

10. Drum: Stainless steel

11. Outer cover: Stainless steel

12. Evaporator: Seamless pipe copper for gas

13. Insulation: Polyurethane

14. Power consumption: 75-80kW.H per 1 ton ice

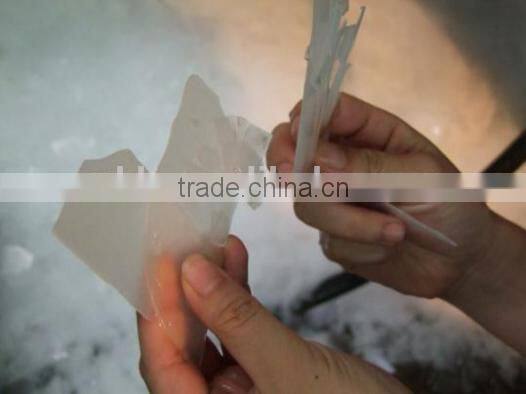

15. Flake ice thickness: 1.5-2.6mm

16. Ice storage room: 7.2 cubic meter for 1.5 tons storage capacity

D. Brand Names of Crucial Components in Flake Ice Machine BFI - 50

Item                Name of Components                 Brand Name                 Original Country

1                          Compressor                                 Bitzer                             Germany

2                           Evaporator                                  CBFI                                China

3                   Water cooled condenser                   XUEMEI                             China

4                         Solenoid valve                            CASTAL                               Italy

5                        Expansion valve                         DANFOSS                         Denmark

6                    Electrical components                      LG (LS)                         South Korea

7                    Refrigerant filter - drier                       ALCO                              America

8                               Oil filter                                  Emerson                           America

9                High and low pressure meter              Switzerland                      Switzerland

10              High and low pressure relay                DANFOSS                         Denmark

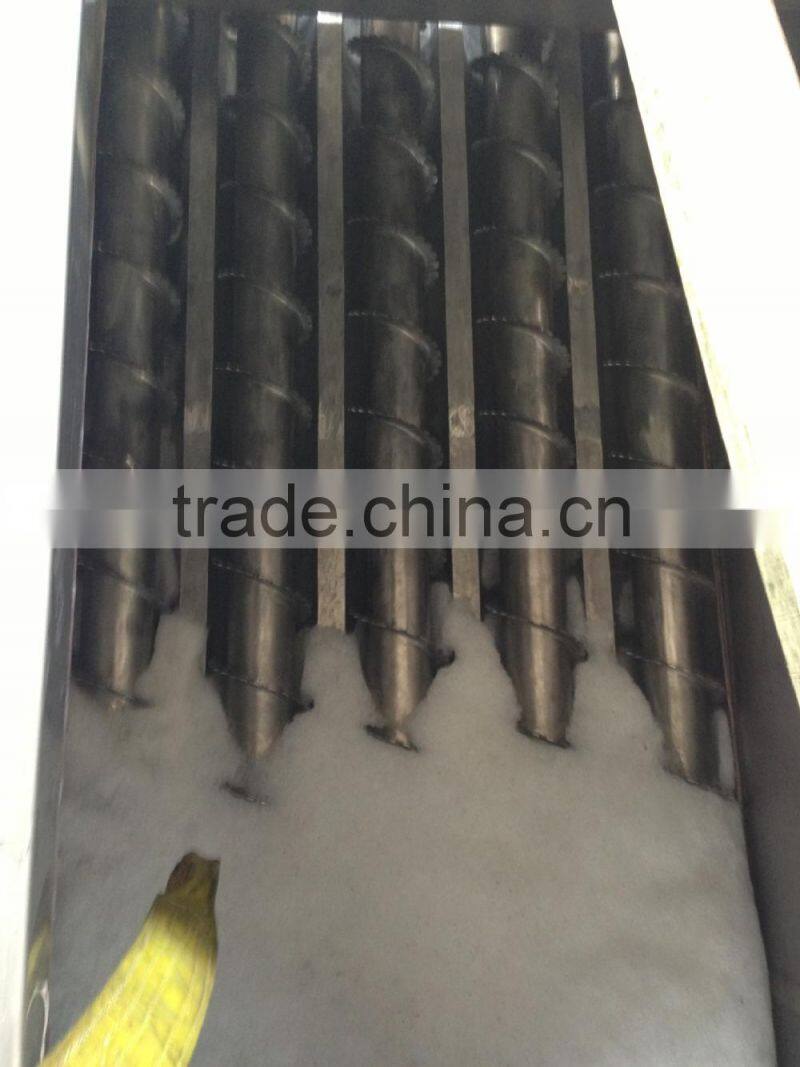

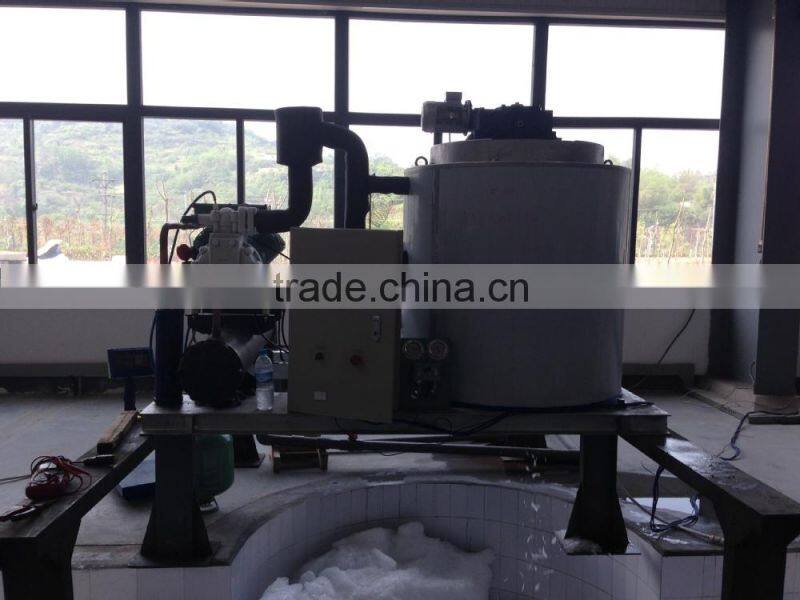

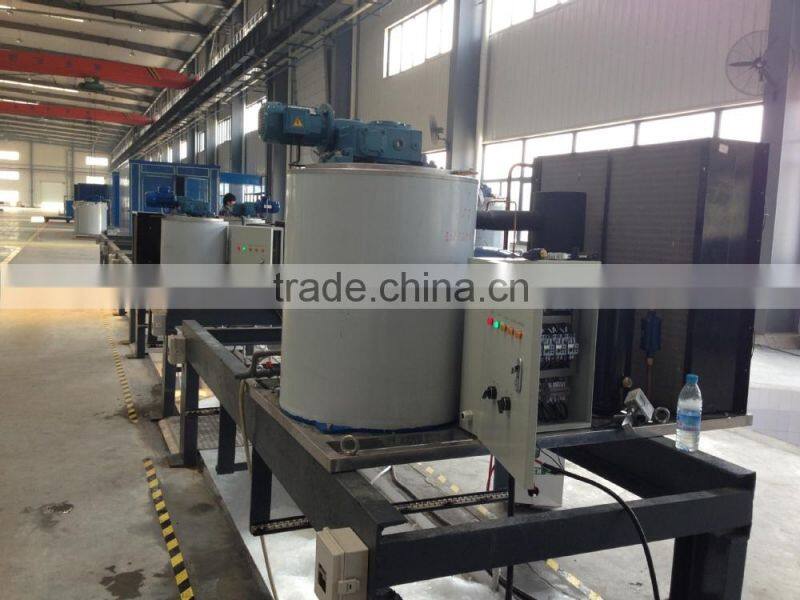

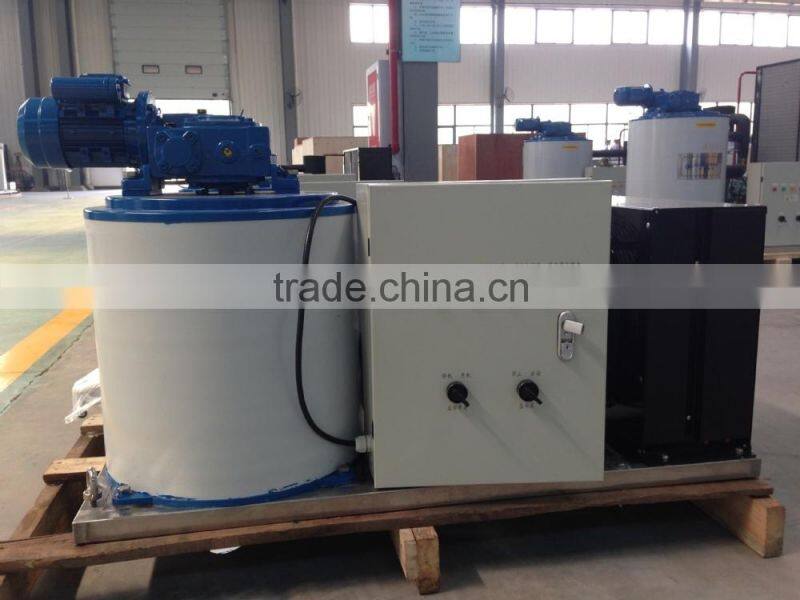

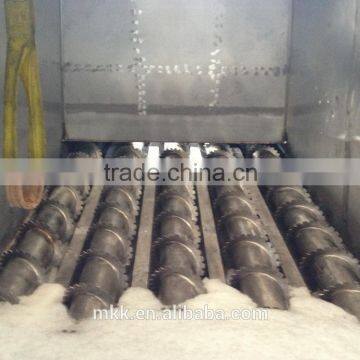

E. Pictures for more Information Delivered

F. Background of MaiKeKu

Dongguan Maikeku industrial co., LTD is a professional refrigerant equipment manufacturer, the leader of  ice cream &frozen yogurt machine manufacturer in China.We have patent product bulking machine, meanwhile ice cream machine, ice cream powder, slush machine, ice cream display cabinets, cake showcase, ice making machine, paper cup machine, paper bowl machine, ice block machine, ice lolly machine are our main products.
