Intermediate frequency heating hydraulic elbows pushing machine
Machine explanation
This machine applies short tension distance cone mould diameter expansion technology,digital control medium frequency induction heating technology,no backside pressure,low energy consumption and hydraulic driving technology, it could push any diameter elbows, also for customized sizes, including special high pressure & big bent degree elbows etc..
Main technical specification
| Elbow size | outer diameter Φ25mm(1″)~Φ1420mm(56″) |
| Wall thickness | 5~120mm |
| Bent diameter | ≤3 |
| Bent degree | 22.5°,45°,90°,135° etc. |
| Hydraulic cylinder | 2/4sets |
Machine composition
| 1. machine base/frame |
| 2. Main cylinder and supporting plate |
| 3. pushing plate |
| 4. front supporting plate |
| 5. loading table |
| 6. induction coils and adjusting device |
| 7. medium frequency power supply |
| 8. electrical control system |
| 9. auxiliary equipment: hydraulic machine/ stamping moulds/pipe end cutting machine/quality testing machine |
Machine description
1) This machine is of two cylinder synchronous pushing method
2) steel tubes clamping method: hydraulic centering and clamping automatically
3) Integrated pumps station valves,pumps station consists of multi-grades; high pressure pump pushes the cylinder forward;
4) Circulating cooling water supplying system for silicon controller, induction coils, compensating capacitor, water electrical cable, electric reactor, etc.
Technical data:
| No. | Max. pushing diameter | cylinder ID mm | Max.pushing force t | using pushing force t | working speed mm/min | working backward speed mm/min | empty return speec mm/min |
| 1 | 1020 | 320 | 337 | 270 | 1097 | 2270 | 1441 |
| 2 | 820 | 300 | 296 | 236 | 1248 | 2700 | 2143 |
| 3 | 720 | 280 | 258 | 206 | 1000 | 2043 | 1857 |
| 4 | 630 | 250 | 206 | 165 | 1255 | 3490 | 2370 |
| 5 | 530 | 220 | 160 | 128 | 1621 | 4904 | 3126 |
| 6 | 426 | 200 | 130 | 104 | 1404 | 3901 | 3496 |
| 7 | 325 | 160 | 84 | 67 | 2532 | 5015 | 3980 |
| 8 | 219 | 140 | 65 | 52 | 2866 | 5851 | 5851 |

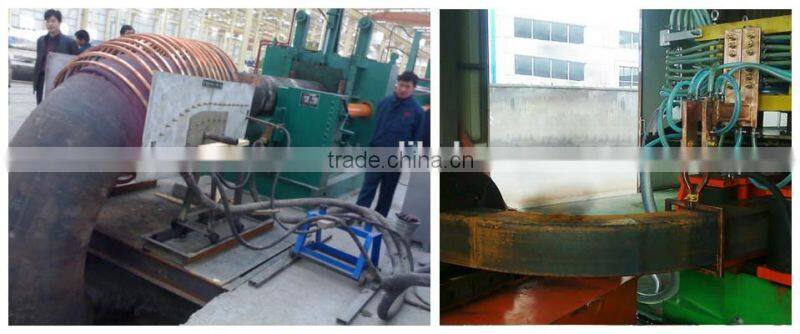

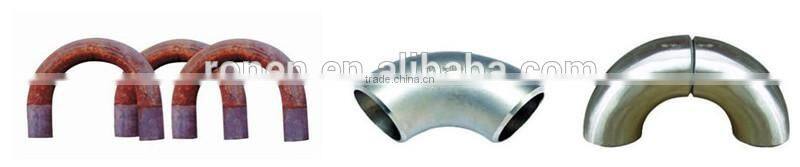

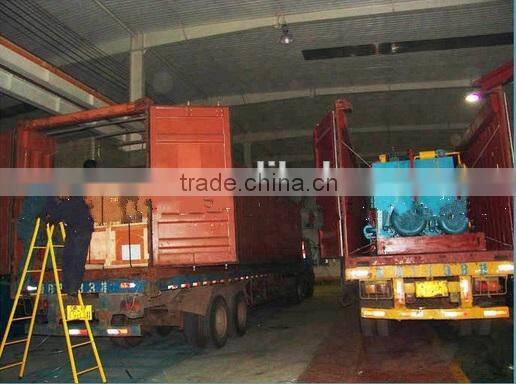

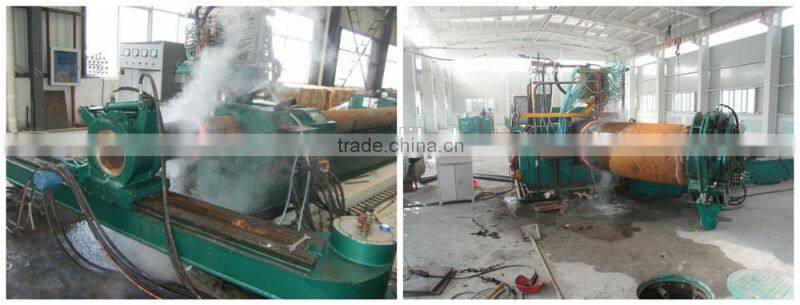

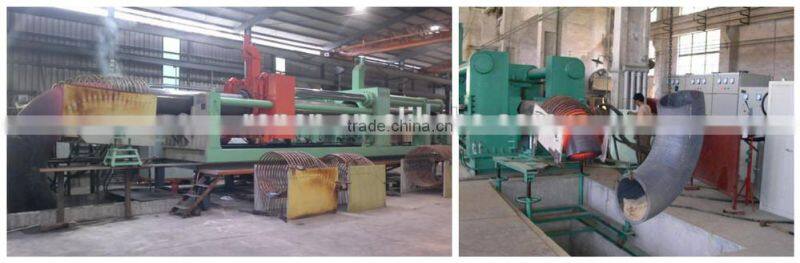

Photos show:
