New Design pv Panel Solar Street Light Pole
US$ 500 - 1,200
MOQ: 10 Pieces
Key Specifications
Get Latest Price
LED Light Source:
Bridgelux chip
Input Voltage(V):
DC24
Lamp Power(W):
70
Payment & Shipping
Payment Methods:
Port of Shipment:
Zhongshan Guangzhou Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
New Stlyle Aluminum Solar Street Light LedUS$ 500 - 1,200MOQ: 10 Pieces -
Good Quality CE FCC Solar Street Light Charge ControllerUS$ 500 - 1,200MOQ: 10 Pieces
-
Not Cheap 30 Watt With Design Pole 12v dc Led Solar Street LightsUS$ 200 - 1,000MOQ: 1 Piece
-
80w Solar Power Energy Automatic Sensor Control Led Modular Street LightUS$ 120 - 1,000MOQ: 1 Piece
-
Not Sodium and Hps 60w Integrated Solar Led Street Light PriceUS$ 200 - 1,000MOQ: 1 Piece
LED Light Source
Bridgelux chip
Input Voltage(V)
DC24
Lamp Power(W)
70
Lamp Luminous Flux(lm)
7700
Lamp Luminous Efficiency(lm/w)
100
Color Temperature(CCT)
Other, 2500K-6500K
Working Temperature(℃)
-30, 55
Working Lifetime(Hour)
50000
Lamp Body Material
Aluminum
IP Rating
IP67
Certification
CE, FCC
Warranty(Year)
3
Place of Origin
Guangdong, China
Brand Name
Ledcent
Model Number
LC-T001-2

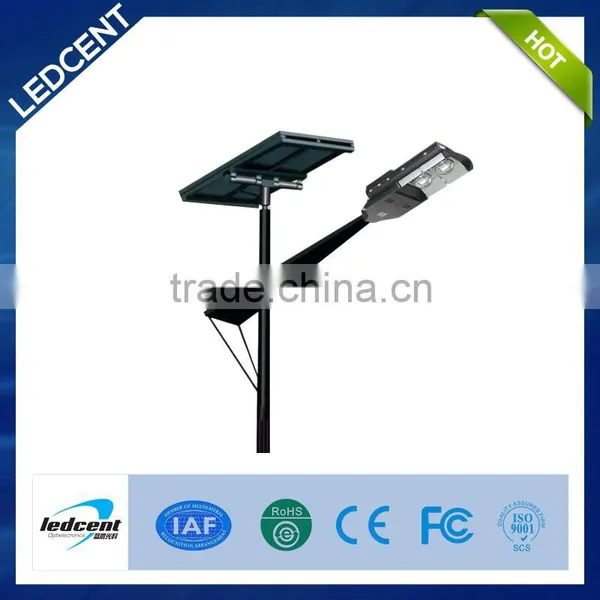

New design pv panel solar street light pole
Product Description
Product Features:
- All in one solar street light
- IP rate: IP67 waterproof
- Light sensor controler
- Super bright COB chip
- Lead-acid battery with MSDS approval
- Monocrystalline silicon solar panel
- Conversion rate reach to 17%
Parameter List:
| Material | Aluminum-alloy,tempered glass |
| Led power | 70W |
| Lamp head size | L564*W340*H115mm |
| Lumen | 7700lm |
| Color Temperature | 2500-6500K |
| Working voltate | DC24V |
| CRI | Ra≥75 |
| Power efficiency | 92% |
| Power factor | 0.98 |
| Humidity | 10%-95% |

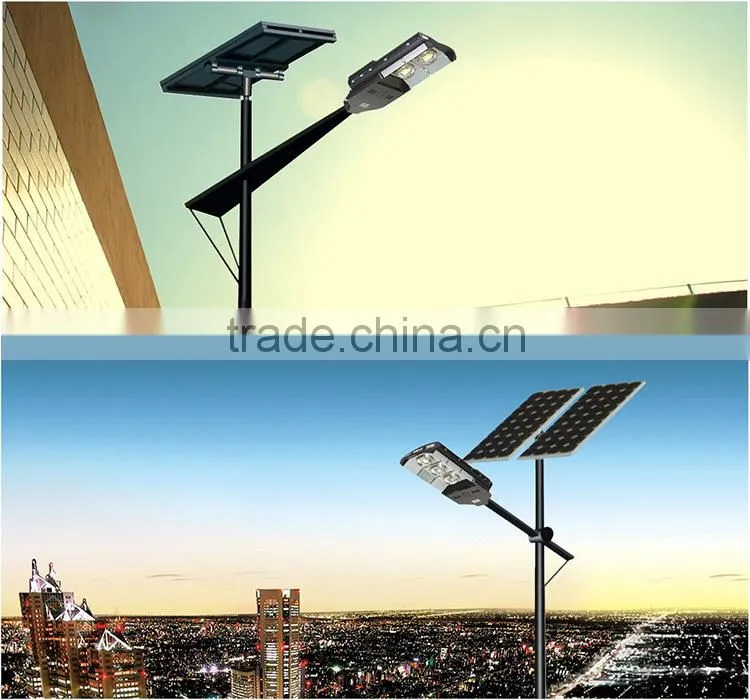

Picture Shows:

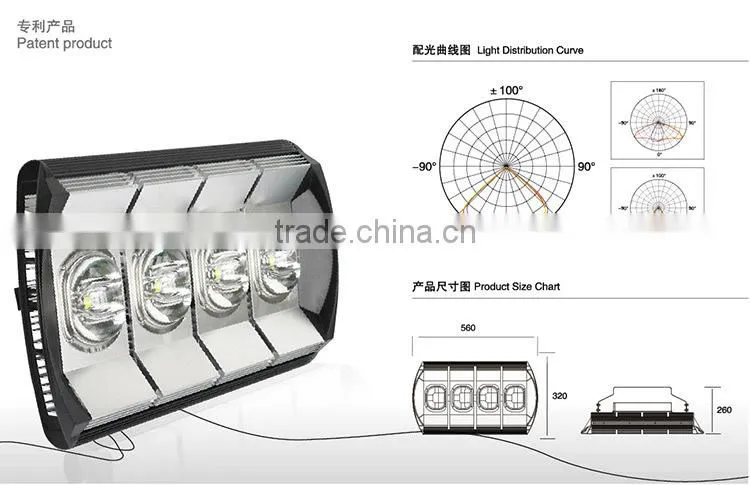

Light Distribution:
- Adopt international advanced LED rectangular optical technology,the formation of 4:1 rectangular sopt,so that no dark areas;
- Scientific lamps optical technology,the unique phosphor formula,advanced packaging technology,the led lamp efficiency can reach 115lm/W;
- No adverse glare,no flicker,eliminating adverse ordinary lights glare caused by glare,visual fatigue sight interference,in order to improve driving safety.
Product Applications:
Power Driver:
- he power,the market power lifetime generally 2-3 years. photoelectric using patented technology and imported high-quality electronic components combined to make the power lifetime of up to 5 years;
- power with input overvoltage protection,under voltage protection,over current protection ,lightning protection,circuit protection function
- Multi-channel supply and reliable driver circuit not only to ensure the stability of the LED work,but also the control conventionally the LED power consumption.
Environmental Friendly:
- Each night 5 hours full power lighting,and then half power working at the mid-night by automatic gradual dimming system;
- Compared with traditional sodium lamp, LEDCENT led lamp energy saving up to 70%;
- No lead,no mercury and other pollution elements,no environmental pollution.
Our Services
Other Informations:
- Payment terms: T/T deposit + balance; L/C at sight.
- Service: Your inquiry will be reply within one working day. Good after-sales service.
- Guarantee time: 3 years.
- Price term: EXW/FOB/CRF/CIF/DTD.
- Delivery time: sample order around 5days. Regular order around 20 days, it depends on the quantity.
Packaging:
- Vacuum packing with desiccant.
- Delivery time: 30days after order and samples are confirmed.
Company Information
Zhongshan ledcent optoelectronics technology co.,ltd.Headquartered in industrial district of henglan,Zhongshan city,Guangdong provice,China. Ledcent covers an area of 30,000 square meters with over 200 employees. Our annual sales value has reached 51 million. And also listed as key procurement enterprises by government. With the development, our products have sold to Europe, America, southeast Asia, Middle East, more than 20 countries and regions.
We sincerely hope that we can make the cooperation with you are. To lead the global mission of Low carbon,Save Energy,Green and Healthy.
FAQ
A.,LED light body:
- Patents design, utility model patents, anti-typhoon, anti-wind, anti-corrosion, waterproof grade IP67;
- Module design, Easy to install take apart in 2 minutes, maintain cost saving 80%;
- Patent heat dissipation technical, hick is better than other Led Light.

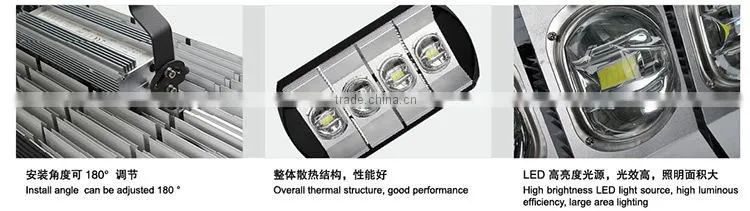

- Installation angle adjustable which is available for different road.
B,LED lamp:
- Batwing light distribution, high transmittance of optical glass, no dark area on the road;
- Unique phosphor formulation, advanced technology, high brightness imported chip, the entire lighting efficiency>100lm/W;
- Independent protection technology: single lamp beads lamp beads necrosis without affection other work, which will make the lights have longer lifetime than normal products;
- Brightness lose<3% per year;
- No adverse glare, no flicker, and elimination the glare caused by adverse ordinary lights glare and visual fatigue sight interference, improve driving safety.
C,Control system:
- The use of digital intelligent control systems, on-electrolytic capacitor design, the service life up to 10 years.
- Night intelligent dimming system, late at night can be a half-power operation.
D,Battery:
- Using nana waterproof technology, battery waterproof and breathable, making longer battery life;
- Thermostatic technology in cold and hot regions significantly extends battery life.
E,Energy efficient:
- Adoption night gradient smart dimming system, full power lighting night before midnight, after midnight half-power operation, energy efficient;
- Does not contain lead, mercury and other pollution elements, right the environment did not any pollution.
F,Applications:
- Applicable to urban roads,bridges,squares,schools,parks,gardens,residential areas,playgrounds,airports,docks and other places where need lighting.
