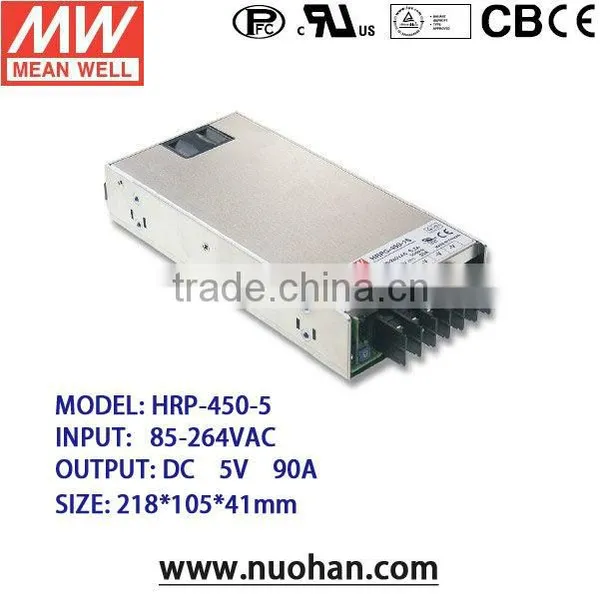

Meanwell 450w Power Supplies With PFC Function/450W Single Output With PFC Function/5v Switching Power Supply

Meanwell 450w Power Supplies With PFC Function/450W Single Output With PFC Function/5v Switching Power Supply thumbnail-1
Meanwell 450w Power Supplies With PFC Function/450W Single Output With PFC Function/5v Switching Power Supply photo-1
US$ 1 - 10 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mean Well
Model Number:
HRP-450-5
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen or Shanghai
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mean Well
Model Number HRP-450-5
Output Power Other, 450W
Output Type Single
Input Voltage Other, 85~264VAC 120~370VDC
Output Voltage 5V
Output Frequency 47~63Hz
Output Current 90A

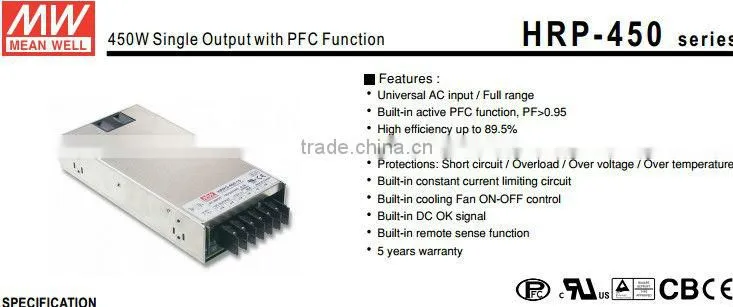

 Meanwell 450w power supplies with PFC function/450W Single Output with PFC Function/5v switching power supply

MODEL

HRP-450-5











OUTPUT

DC  VOLTAGE

5V

RATED CURRENT

90A

CURRENT RANGE

0 ~ 90A

RATED  POWER

450W

RIPPLE & NOISE (max.)

80mVp-p

VOLTAGE ADJ. RANGE

4.3 ~ 5.8V

VOLTAGE TOLERANCE

±2.0%,

LINE REGULATION

±0.5%

LOAD REGULATION

±1.0%

SETUP TIME

1000ms ,100ms/ 230VAC  2500ms, 100ms/115VAC at full load

HOLD UP TIME (Typ.)

16ms/230VAC   16ms/115VAC at full load





INPUT

VOLTAGE RANGE

85 ~ 264VAC          120 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

83%

POWER FACTOR (Typ.)

PF>0.95/230VAC          PF>0.99/115VAC at full load

AC CURRENT (Typ.)

5A/115VAC         2.4A/230VAC

INRUSH CURRENT (Typ.)

35A/115VAC          70A/230VAC

LEAKAGE CURRENT

<1.5mA / 240VAC







PROTECTION



OVER  LOAD

105 ~ 135% rated output power

Protection type :Constant current limiting, recovers automatically after fault

condition is removed



OVER VOLTAGE

6 ~ 7V

Protection type : Shut down o/p voltage, re-power on to recover





OVER TEMPERATURE

90°C± 5°C (TSW1: detect on heatsink of power transistor)

100°C ±5°C for 3.3V,5V,7.5V ; 95°C± 5°C for others (TSW2:  detect on heatsink

of  power diode)

Protection type : Shut down o/p voltage, recovers automatically

after temperature goes down

FUNCTION

DC OK SIGNAL

PSU turns on : 3.3 ~ 5.6V ; PSU turns off : 0 ~ 1V

FAN CONTROL (Typ.)

Load 20± 10% or RTH2 ≥50 Fan on



ENVIRONMENT

WORKING TEMP.

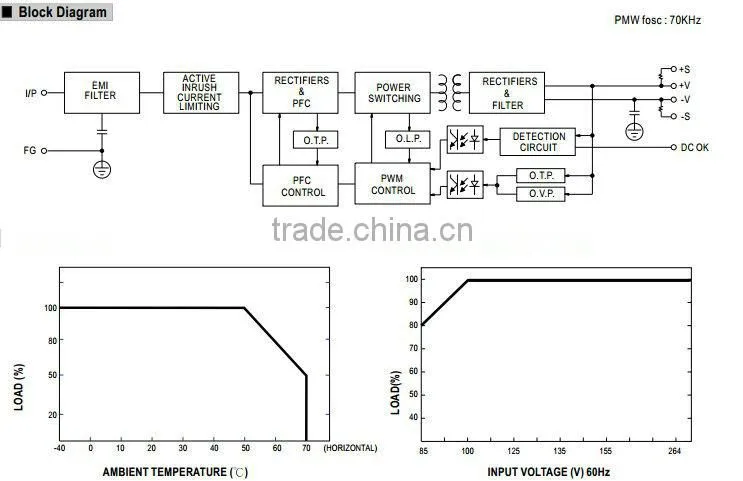

-40~+70°C (Refer to derating curve)

WORKING HUMIDITY

20~90% RH non-condensing

STORAGETEMP.,HUMIDITY

-40~+85°C, 10~95%RH

TEMP. COEFFICIENT

±0.03%/°C (0~50°C)

VIBRATION

10 ~ 500Hz, 5G 10min./1cycle, period for 60min. each along X, Y, Z axes



SAFETY

SAFETY STANDARDS

UL60950-1, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC     I/P-FG:1.5KVAC     O/P-FG:0.5KVAC

EMC EMISSION

Compliance to EN55022(CISPR22)Class B,EN61000-3-2,-3

EMC IMMUNITY

Complianceto EN61000-4-2,3,4,5,6,8,11,EN55024,EN61000-6-2,

Light industry level,criterial A

ISOLATION  RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C/ 70% RH



OTHERS

MTBF

139Khrs min.      MIL-HDBK-217F (25°C)

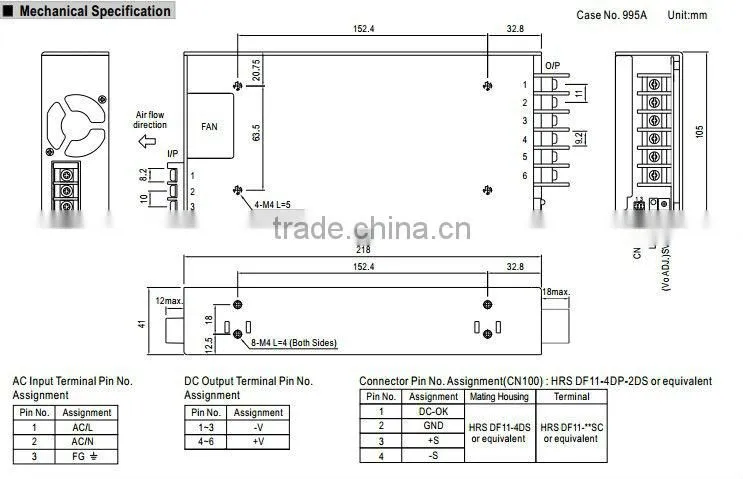

DIMENSION

218*105*41mm (L*W*H)

PACKING

1.19Kg; 12pcs/15.3Kg/0.82CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25

of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance : includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment.

The final equipment must be reconfirmed that it still meets EMC directives.For guidance on how

to perform these EMC tests, please refer to “EMI testing of component power supplies.”

5. Derating may be needed under low input voltages. Please check the derating curve for more details.

6. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to

increase of the set up time



 Meanwell 450w power supplies with PFC function/450W Single Output with PFC Function/5v switching power supplyMeanwell 450w power supplies with PFC function/450W Single Output with PFC Function/5v switching power supply
