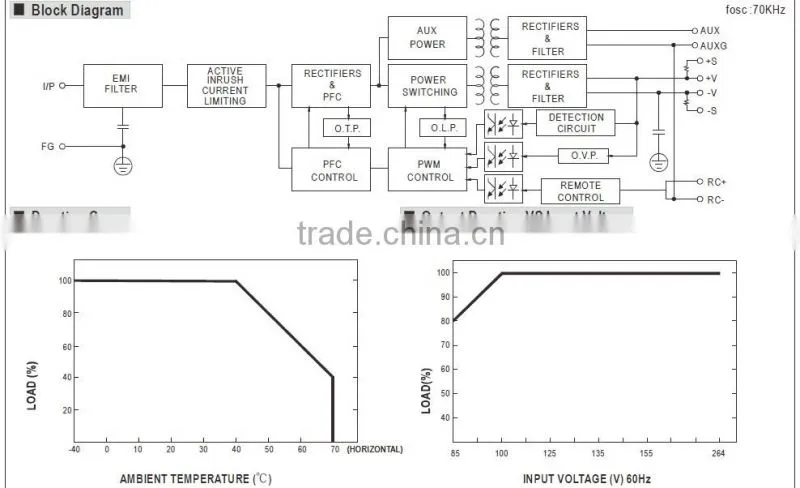

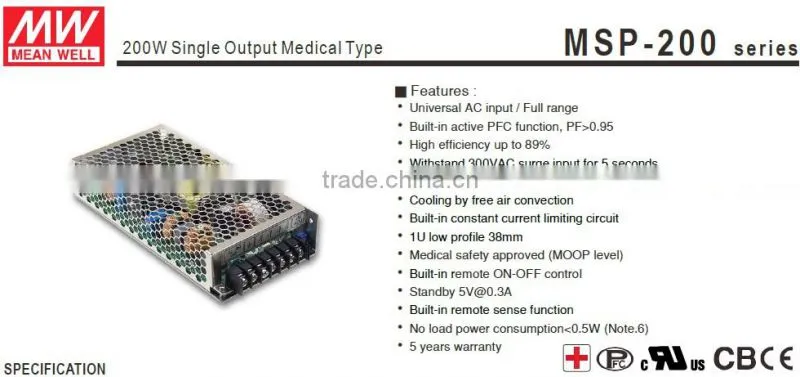

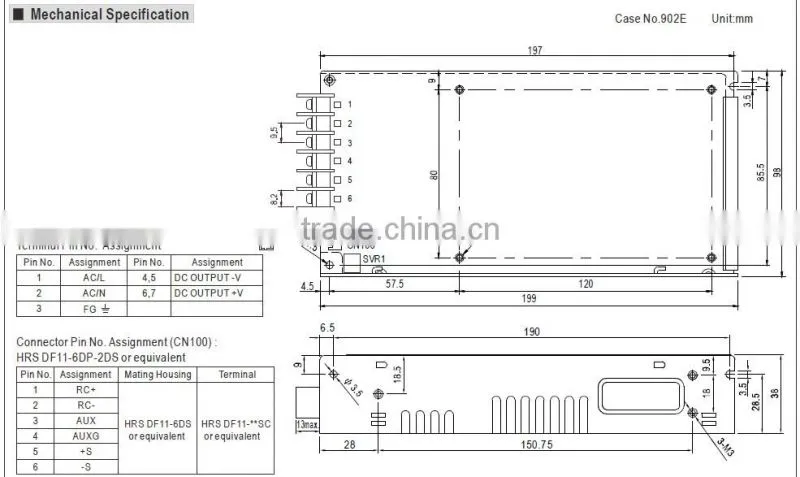

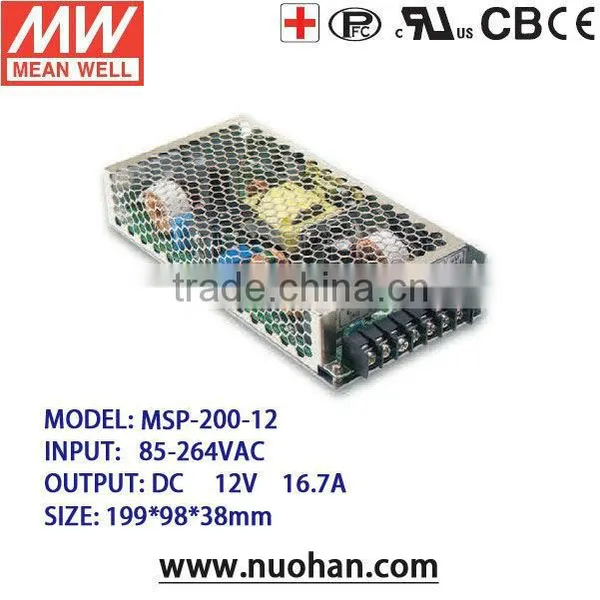

Meanwell MSP-200-12 200w 12V Medical power supply pfc power supply 12v

MODEL

MSP-200-12

OUTPUT

DC VOLTAGE

12V

RATED CURRENT

16.7A

CURRENT RANGE

0 ~ 16.7A

RATED POWER

200.4W

RIPPLE & NOISE (max.)   Note.2

120mVp-p

VOLTAGE ADJ. RANGE

10.2 ~ 13.8V

VOLTAGE TOLERANCE Note.3

±1.0%

LINE REGULATION

±0.3%

LOAD REGULATION

±0.5%

SETUP, RISE TIME

1000ms, 50ms/230VAC         2500ms, 50ms/115VAC at full load

HOLD UP TIME (Typ.)

16ms/230VAC         16ms/115VAC at full load

INPUT

VOLTAGE RANGE     Note.5

85 ~ 264VAC         120 ~ 370VDC

FREQUENCY RANGE

47~63HZ

POWER FACTOR (Typ.)

PF>0.95/230VAC   PF>0.99/115VAC at full load

EFFICIENCY (Typ.)

88%

AC CURRENT (Typ.)

2.2A/115VAC       1.1A/230VAC

INRUSH CURRENT (Typ.)

35A/115VAC         70A/230VAC

LEAKAGE CURRENT   Note.7

Earth leakage current < 300uA/264VAC , Touch leakage current < 100uA/264VAC

PROTECTION

OVER LOAD

105 ~ 135% rated output power

Protection type : Constant current limiting, recovers automatically after fault condition is removed

OVER VOLTAGE

14.4 ~ 16.8V

Protection type : Shut down o/p voltage, re-power on to recover

OVER TEMPERATURE

95°C±5°C(TSW1) detect on heatsink of power transistor

105°C±5°C(TSW2) detect on main power output choke

Protection type : Shut down o/p voltage, recovers automatically after temperature goes down.

FUNCTION

5V STANDBY

5VSB : 5V at 0.3A ; tolerance ±5%, ripple : 50mVp-p(max.)

REMOTE CONTROL

RC+/RC- : 4 ~10V or open = power on ; 0 ~ 0.8V or short = power off

ENVIRONMENT

WORKING TEMP.

-40~+70°C (Refer to derating curve)

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40~+85°C, 10~95%RH

TEMP. COEFFICIENT

±0.03%/°C(0~ 50°C)

VIBRATION

10 ~ 500Hz, 5G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY&EMC

(Note 4)

SAFETY STANDARDS

ANSI/AAMI ES60601-1, IEC60601-1 approved

WITHSTAND VOLTAGE

I/P-O/P:4KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC

ISOLATION RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25°C/ 70% RH

EMC EMISSION

Compliance to EN55011 (CISPR11) Class B, EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11, EN60601-1-2

OTHERS

MTBF

209.4K hrs min.      MIL-HDBK-217F (25°C)

DIMENSION

199*98*38mm (L*W*H)

PACKING

0.77Kg; 18pcs/14.9Kg/0.9CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature.

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3. Tolerance: includes set up tolerance, line regulation and load regulation.

4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.

5. Derating may be needed under low input voltages. Please check the derating curve for more details.

6. No load power consumption<0.5W when RC+ & RC- (CN100 pin1,2) 0 ~ 8V or short.

7. Touch current was measured from primary input to DC output.
