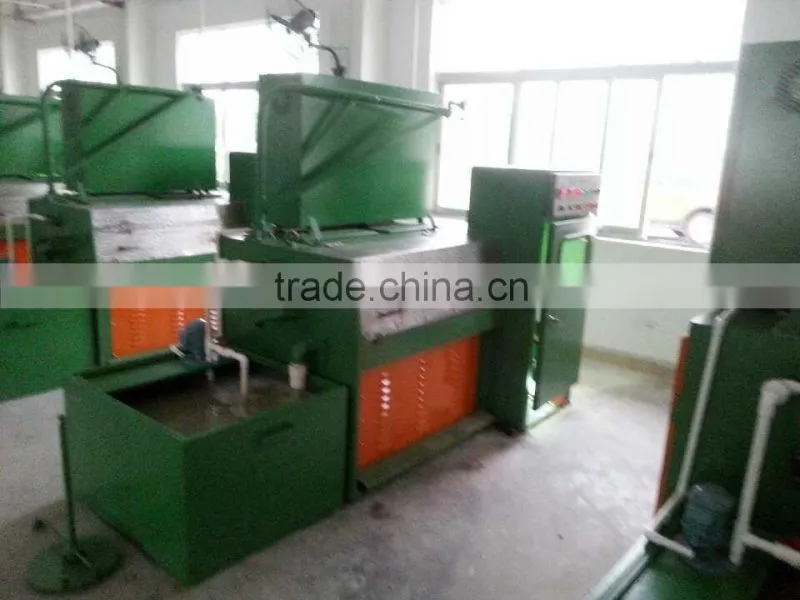

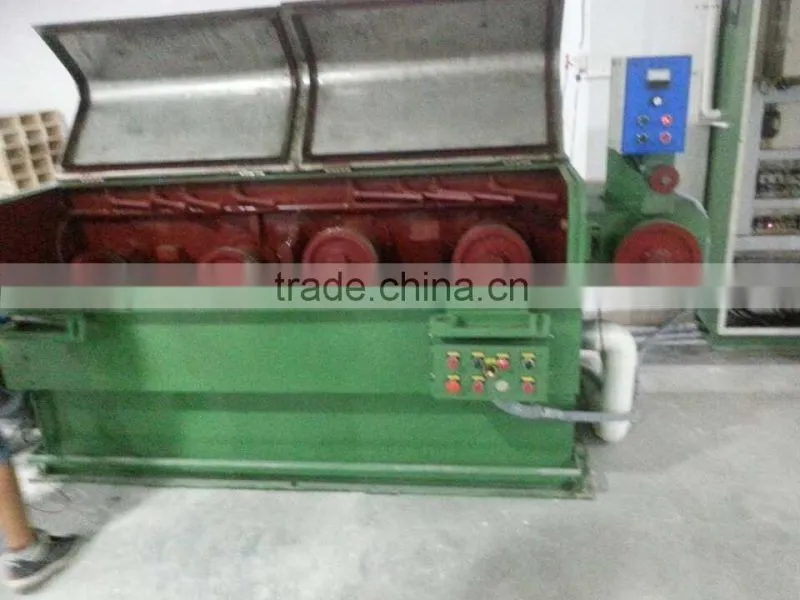

Help CenterDrawing Usage Copper Wire Drawing Machine
Related Products
-
High Speed Middle Wire Drawing Machine With AnnealingNegotiableMOQ: 1 Set -
Super Fine Copper Wire Drawing MachineNegotiableMOQ: 1 Set
-
42 Copper Wire Drawing Machine With Continuous Annealer MachineNegotiableMOQ: 1 Set
-
From China Pvc Insulated Copper Wire Machine Winding MachineNegotiableMOQ: 1 Set
-
2016 High Speed Copper Wire Electronic Hot MachineNegotiableMOQ: 1 Unit
Specifications
1.Copper wire drawing2.Motor control:dual transducer control
3.Inlet diameter:1.6-0.8mm
4.Outlet diameter:0.6-0.2mm
Technical parameter
Inverter control |
Double inverter control |
Max.inlet Dia.(mm) |
Ø1.6 |
Outlet Dia.(mm) |
Ø0.2 |
Max.Line speed(m/min) |
2000 |
Body structure |
welded by steel plate |
Drawing captain |
ceramic plasma capstan |
Slip ratio of m/c(%) |
13 |
Main motor power(kw) |
11(15) |
Take-up motor power(kw) |
4 |
Fix speed capstan Dia.(mm) |
Ø160 |
Transmission type |
belt |
Lubrication type |
spray |
Max.annealing voltage(V) |
DC60 |
Max.annealing current(A) |
DC200(DC250) |
Take-up bobbin size(mm) |
Φ300 |
Traversing type |
synchronous motor+belt |
Tension control |
weight balance type |
Brake |
magnetic brake |
Weight(KG) |
3200 |
Our company was founded in 1999,long time dedicate to
in wire cable & wire cable equipment develop, Manufacture,
Sale, Service In all-in one industry automatic manufacture.
Main product series :Wire & cable of Extrusion machine, Stranding
machine, Twisting machine, Coiling machine, Package machine,
Winding machine and Pay off & Take up unit etc.
Pre-sale Services
1. Sport expedition and Professional feasibility proposal;
2. Equipment configuration, Model Reference and Equipment technical advice.
3. For customers invest, Matching, Material selection, Development personnel and Training full-service.
After-sales Service
1. Regular maintenance and product tracking service;
2. Cost price for required parts in life;
3. Provide high quality and fastest efficient after service.
Warranty Item
The warranty period is one year (since the product is installed in the buyer factory).
If you are interested in our products,please contact us!
