Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Mean Well 45W 5V Industrial DIN Rail Power Supply DR-4505

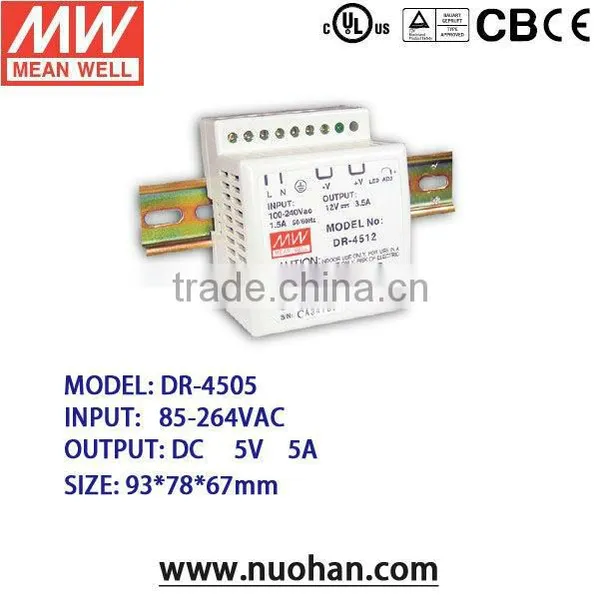

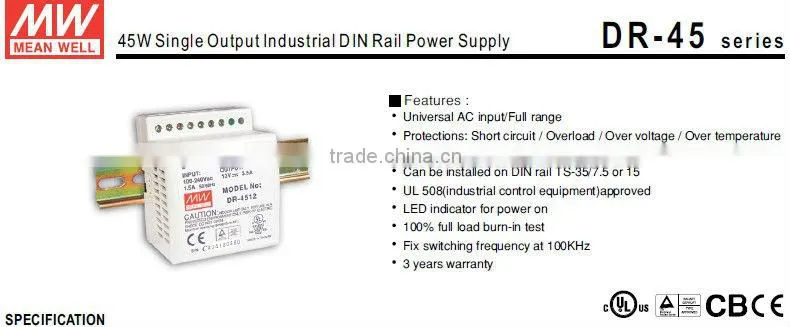

Mean Well 45W 5V Industrial DIN Rail Power Supply DR-4505

Name: Mean Well 45W 5V Industrial DIN Rail Power Supply DR-4505
Brand: Mean Well
SKU: 117418243

Mean Well 45W 5V Industrial DIN Rail Power Supply DR-4505 thumbnail-1

Mean Well 45W 5V Industrial DIN Rail Power Supply DR-4505 photo-1

US$ 1 - 20 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

DR-4505

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number DR-4505

Input Voltage 85 ~ 264VAC 120 ~ 370VDC

Output Voltage 5V

Output Power 25W

Output Frequency 50-60Hz

Output Current 5A

Specifications

MODEL		DR-4505
OUTPUT	DC VOLTAGE	5V
	RATED CURRENT	5A
	CURRENT RANGE	0~5A
	RATED POWER	25W
	RIPPLE & NOISE (max.) Note.2	100MVP-P
	VOLTAGE ADJ.RANGE	4.75~5.5V
	VOLTAGE TOLERANCE Note.3	±2.0%
	LINE REGULATION	±1.0%
	LOAD REGULATION	±1.0%
	SETUP. RISEHOLD. TIME	800ms, 60ms/230VAC at full load
	HOLD TIME(TYP.)	100ms/230VAC at full load
INPUT	VOLTAGE RANGE Note.6	85~264VAC 120~370VDC
	FREQUENCY RANGE	47~63HZ
	EFFICIENCY (Typ.)	72%
	AC CURRENT (Typ.)	1.5A/115VAC 0.75A/230VAC
	INRUSH CURRENT (Typ.)	COLD START 28A/115VAC 56A/230VAC
	LEAKAGE CURRENT	<1mA / 240VAC
PROTECTION	OVER LOAD	105~160%rated output power
	OVER LOAD	Protection type : Constant current limiting, recovers automatically after fault condition is removed
	OVER VOLTAGE	5.75~6.75V
	OVER VOLTAGE	Protection type : Shut off o/p voltage, clamping by zener diode
	OVER TEMPERATURE	Tj 135°C typically (U1) detect on heat sink of power transistor
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, re-power on to recover

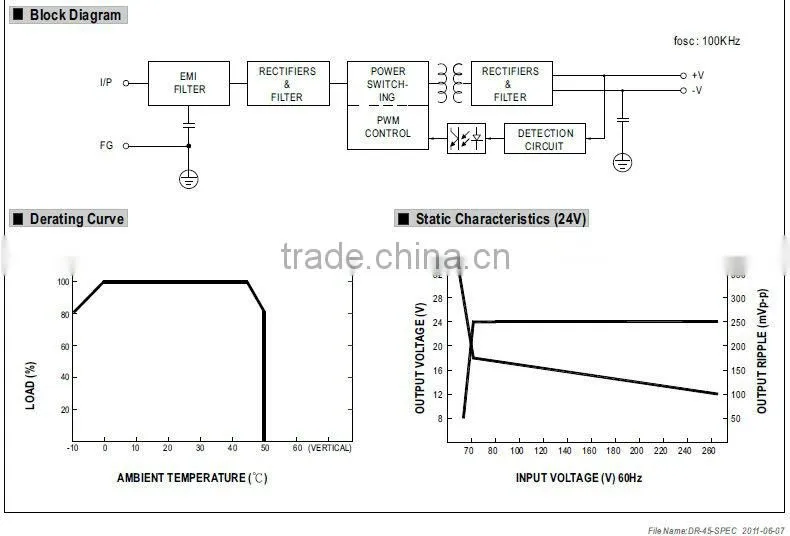

ENVIRONMENT	WORKING TEMP	-10~+50°C (refer to output load derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP HUMIDITY	-20~+85°C 10~95%RH
	TEMPCOEFFICIENT	±0.03%(0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes; Mounting: Compliance to IEC60068-2-6
SAFETY&EMC Note 4)	SAFETY STANDARDS	UL508, TUV EN60950-1 approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC
	EMI CONDUCTICN& RADIATION	Compliance to EN55011, EN55022(CISPR22)classB
	HARMONICCURRENT	Compliance to EN61000-3-2,-3
	EMS IMMUNITY	Compliance to EN61000-4-2, 3, 4, 5, 6, 8, 11, ENV50204, EN55024, EN61000-6-2, EN61204-3, heavy industry level, criteria A
QTHERS	MTBF	364.5Khrs min MIL-HDBK-217F(25°C)

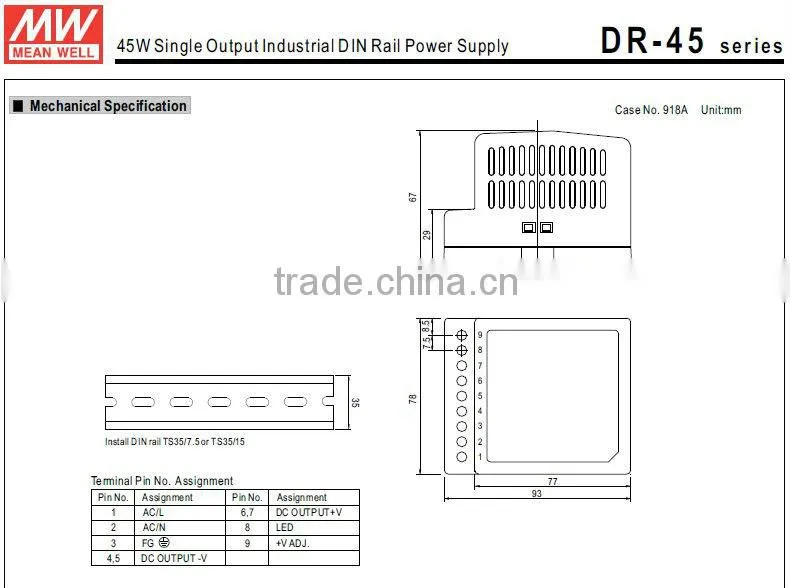

	DIMENSION	937867mm(LWH)
	PACKING	0.31Kg 48pcs / 16.1Kg / 1.3CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25 °Cof ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives.
