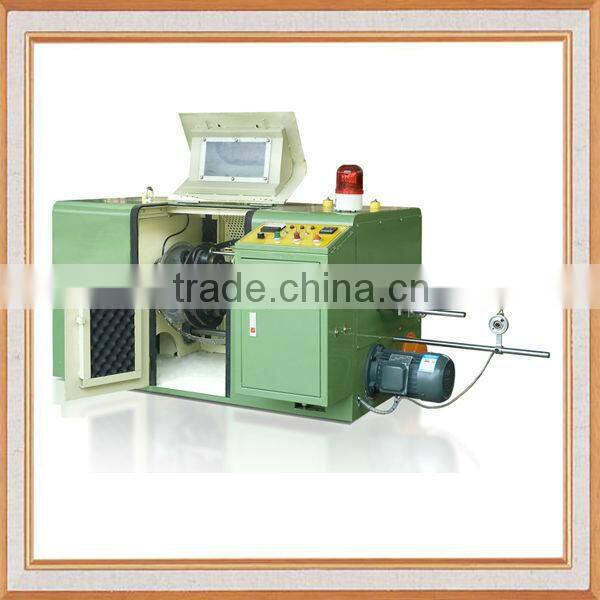

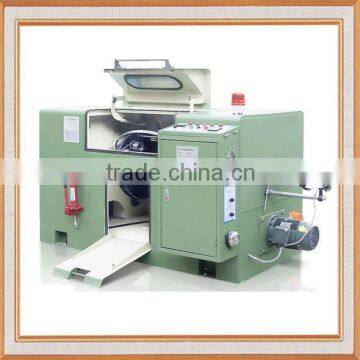

Help CenterChina 2016 300m Model Copper Wire Stranding Twisting Bunching Machine
Related Products
-
2015 Hot Selling Twisting Usage Wire Cable Stranding Machine GuangdongNegotiableMOQ: 1 Set -
Cheap Price Factory Outlet Copper Wire and Cable Twist Stranding MachineNegotiableMOQ: 1 Set
-
China Stranding Machine Oem Factory Outlet Wire and Cable MachinesNegotiableMOQ: 1 Set
-
2016 China Wire Cable Machine Making Stranding Machine Factory OutletNegotiableMOQ: 1 Set
-
Chinese High Quality Machine Used for Wire and Cable High Speed Stranding MachineNegotiableMOQ: 1 Set
High speed stranding Machine From Gangyang company in China.
1.High quanlity and good price.
2.Auto-speed stranding Machine.
3.Delivery on time and T/T payment term.
Packing and delivery.
1.packing detail : each product we use the wood to protection the machine. If have the special package, we can according to the customer reqiure.
2. Delivery time :about 25 days after recevied your deposite.
Specification:
Technical Parameter:
| Machine type | GY-300 GY-400 | GY-500 GY-650 | |||
| intertwistlimit | 0.05/7 | 0.05/7 0.1/7 | 0.12/7 | ||
| twist distance(mm) | 4.36-17 | 5.68-57 5.68-57 8.54-90 | |||
| copper wire dia (mm) | 0.05-0.2 | 0.08-0.26 | 0.1-0.45 | 0.1-0.45 | |
| twist direction | free choice | free choice | free choice | free choice | |
| roll shaft(mm) | 300 | 400 | 500 | 600 | |
| intertwist area(mm) | 0.013-0.45 | 0.035-1.25 | 0.035-2.5 | 0.4-6.0 | |
| Main motor | 5HP | 5HP | 5HP | 10HP | |
| Tension control | manual | manual | manual/automatic | manual/automatic | |
| Max.rotation | 3500RPM | 3000ROM | 2000RPM(3000RPM) | 1600RPM | |
| Height of main shaft | 630mm | 700mm | 750mm | 850mm | |
| Bed systemrak |
electromagetic brakes,the machine automatically disconnect the alarm and shutdown |
||||
| Rolling set | By rod-bearing cables and exclusive pieces of/distanc can be adjusted | |
|||
Our advantages.
1. We have the pre-sale services and have the after sales service.
2.High quality, good service and design.
3.The best way we can have the resonable price.
4.Full experience, more than 10 years in manufacture in the wire and cable machine, have the customer from all the word, 100% manufacture by ourselves.
5.Make the ECO- Friendly.
Payment term:
T/T30%deposite advance,the balance before shipment or after your inspection, please contact with Candy Ma before you place order.
Certification and our logo:

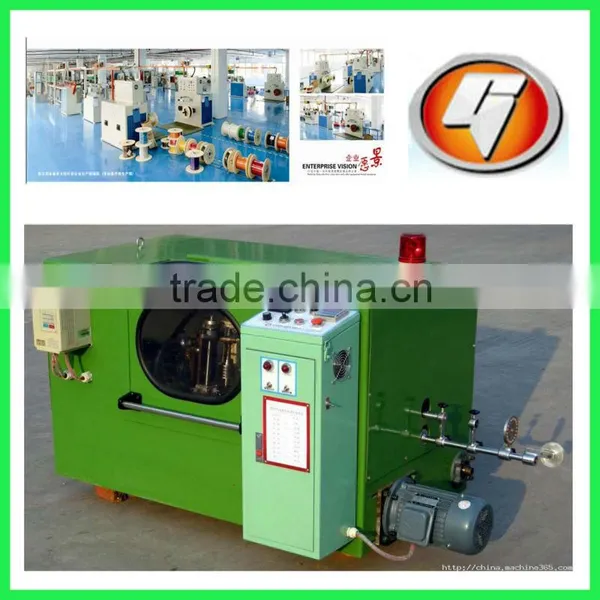

More picture about the products.
We promise:
1.You can see our machine how does it working in our customer's factory.
2.visit our factory when the engineer on the working day.
3.The more than 10years experience engineer will give you better suggestion to you.
Thanks you spend your time to scan web, it is our pleasure if you can give honest suggestion to us, Have a nice day!
Wish you brisk business, flourishing source of wealth and happy family,see you!
