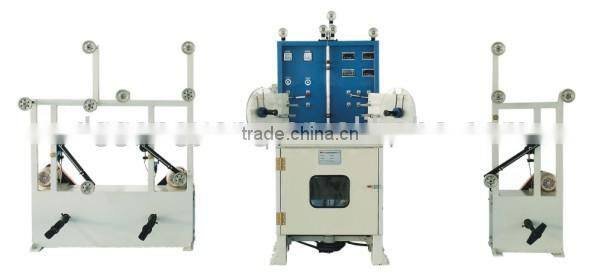

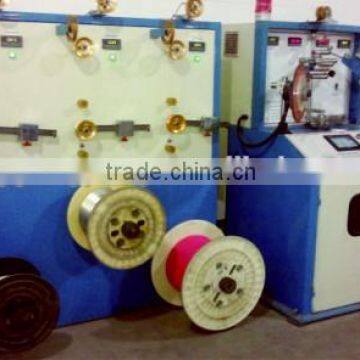

Help CenterHDMI Cable Twisting Machine for Vertical Type
Related Products
-
500-630 High-speed Cantilever Single Twisting Machine for Cable WireNegotiableMOQ: 1 Set -
Auto- Wire and Cable Stranding Machine GY-630NegotiableMOQ: 1 Set
-
2016 Wire Cable Machine Two-for-one Twisting MachineNegotiableMOQ: 1 Set
-
GY-400/500 Hot Type Wire Machine Twist off Cap Making MachineNegotiableMOQ: 1 Set
-
2016 Hot Wire Products High Quality Trade Assurance Single Twist MachineNegotiableMOQ: 1 Set
Specifications
1.Suitable for DVI/HDMI and DISPLAYPORT of high-frequency2.Safe, reliable, easy to operate
1.Pay off,take up,wrapping and other tension engaged processes are controlled by PLC system.With automtic tracking and stepless regulating.
2.It is especially suitable for stranding process in making such high-frequency data cables as DVI,HDMI and PISPLAYPORT,wrapping can be realiaed simultaneously.
3. Bearings and belt: Japanese origin
4. The machine has broken down alarm device
5. Retractable wire tension control to ensure the quality twisted pair
HDMI Dedicated achine Technical Parameter
1.Suitable for core wire: 0.6-2.0mm
2.Max.twistout dia.:4.0mm(max.)
3.Twist pitch range:8.5-40mm
4.Max.twist speed:24m/min(max.)
5.Pay off bobbin size:400-500 ABS Pay off bobbin
6.Take up bobbin size:400-500 ABS Take-up tray
7.Pay off power:2.2KW*3
8.Take up power:1.5KW Transduce
9.Pay off tension:5KG Tension control
10.Take up tension:1.5KG Electromagnetic brake
11.Wrapping control:5KG Tension controlled
12.Traverse device:Double pith
Pre-sale Services
1.Sport expedition and Professional feasibility proposal;
2.Equipment configuration,Model Reference and Equipment technical advice.
3.For customers invest,Matching,Material selection,Development personnel and Training full-service.
After-sales Service
1.Regular maintenance and product tracking service;
2.Cost price for required parts in life;
3.Provide high quality and fastest efficient after service.
Warranty Item
The warranty period is one year (since the product is installed in the buyer factory).
If you are interested in our products,please contact us!
Company Name:Dongguan GangYang Wire And Cable Machinery Co., Ltd.
Homepage:
http://dggangyang.en.china.cn
