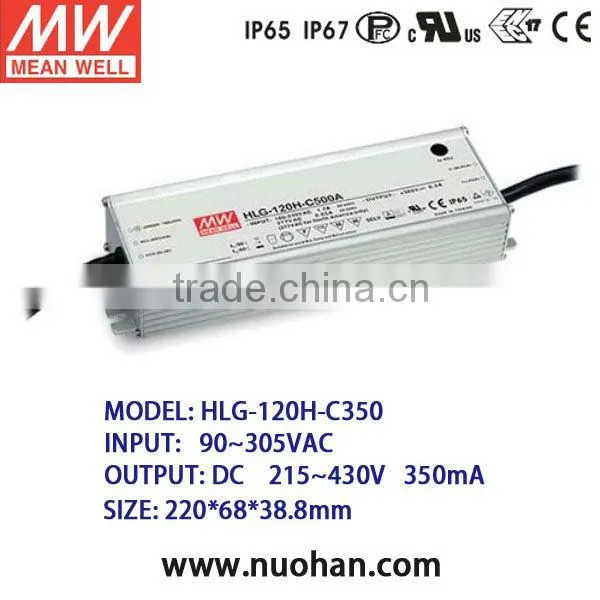

Mean Well HLG-120H-C350 120W Led Driver With PFC 350ma 120w LED Dimming Driver 120w 350ma Led Driver

Mean Well HLG-120H-C350 120W Led Driver With PFC 350ma 120w LED Dimming Driver 120w 350ma Led Driver thumbnail-1
Mean Well HLG-120H-C350 120W Led Driver With PFC 350ma 120w LED Dimming Driver 120w 350ma Led Driver photo-1
US$ 1 - 100 MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mean Well
Model Number:
HLG-120H-C350
Contact Supplier Request Quote Chat Now
Hangzhou Nuohan Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mean Well
Model Number HLG-120H-C350
Output Power Other, 150.5W
Output Type Single
Input Voltage Other, 90 ~ 305VAC 127 ~ 431VDC
Output Voltage 215 ~ 430V
Output Frequency 47~63Hz
Output Current 350mA

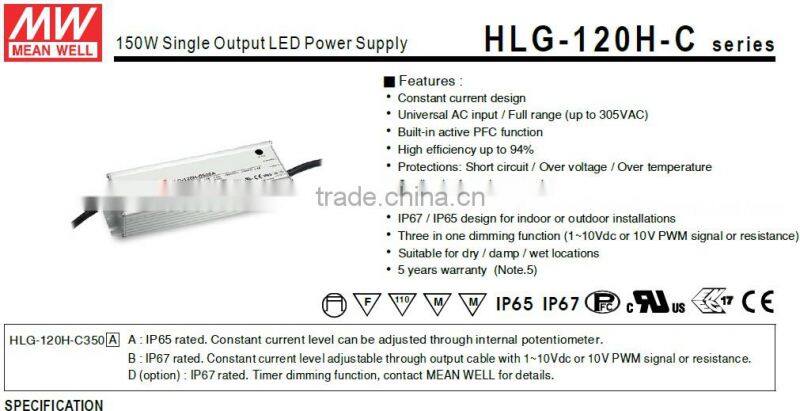

Mean well HLG-120H-C350 120W led driver with PFC 350ma 120w LED dimming driver 120w 350ma led driver

MODEL

HLG-120H-C350











OUTPUT

CURRENT ACCURACY

±5.0%

RATED CURRENT

350mA

CONSTANT CURRENT REGION

215 ~ 430V

RATED  POWER

150.5W

RIPPLE & NOISE (max.)

2Vp-p



CURRENT ADJ. RANGE

Can be adjusted by internal potentiometer

175 ~ 350mA

LINE REGULATION

±1%

SETUP TIME

1000ms ,80ms/ 230VAC  2000ms, 80ms/115VAC at full load

HOLD UP TIME (Typ.)

16ms at full load 230VAC /115VAC





INPUT

VOLTAGE RANGE

90 ~ 305VAC          127~431VDC

FREQUENCY RANGE

47 ~ 63Hz

EFFICIENCY (Typ.)

94%

POWER FACTOR (Typ.)

PF>0.98/115VAC, PF >0.96/230VAC,PF>0.93/277VAC at full

load(please refer to "Power Factor characteristic curve")

AC CURRENT (Typ.)

1.6A/115VAC     0.8A/230VAC         0.7A/277VAC

INRUSH CURRENT (Typ.)

COLD START 50A(twidth=600μs measured at 50% Ipeak) at 230VAC

LEAKAGE CURRENT

<0.75mA / 277VAC







PROTECTION



OVER  CURRENT

95 ~ 108%

Protection type :Constant current limiting, recovers automatically

after fault condition is removed



OVER VOLTAGE

475 ~ 495 V

Protection type : Shut down o/p voltage, re-power on to recover



OVER TEMPERATURE

85°C± 10°C (RTH2)

Protection type : Shut down o/p voltage, recovers automatically

after temperature goes down

SHORT CIRCUIT

Constant current limiting, recovers automatically after fault condition

 is removed



ENVIRONMENT

WORKING TEMP.

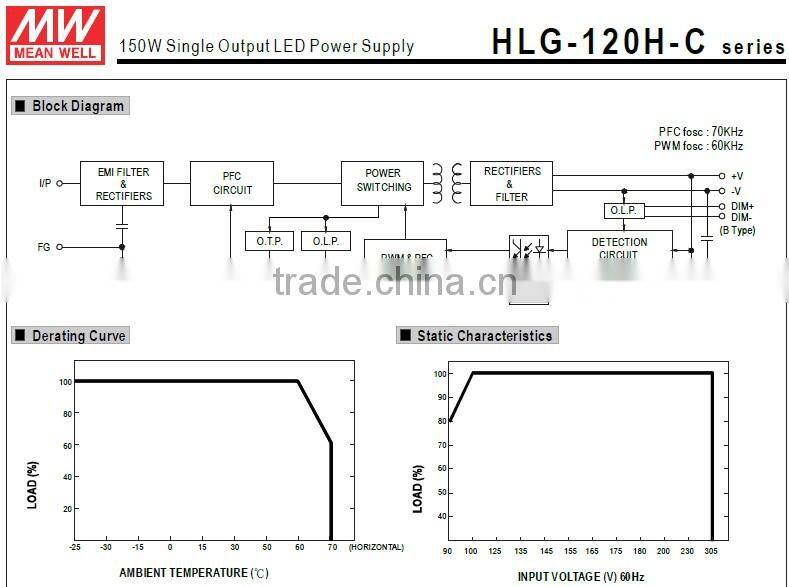

-25~+70°C (Refer to derating curve)

WORKING HUMIDITY

10~95% RH non-condensing

STORAGETEMP.,HUMIDITY

-40~+80°C, 10~95%RH

TEMP. COEFFICIENT

±0.03%/°C (0~50°C)

VIBRATION

10 ~ 500Hz, 5G 12min./1cycle, period for 72min. each along X, Y, Z axes



SAFETY

SAFETY STANDARDS

UL8750, CSA C22.2 No. 250.12-13, ENEC EN61347-1, EN61347-2-13,

EN62384 independent, IP65 or IP67 approved

WITHSTAND VOLTAGE

I/P-O/P:3.75KVAC     I/P-FG:2KVAC     O/P-FG:0.5KVAC

EMC EMISSION

Compliance to EN55015,EN61000-3-2 Class C(≥65% load);EN61000-3-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11; EN61547, EN55024, light

industry level (surge L,N-FG: 4KV),  criteria A

ISOLATION  RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC / 25°C/ 70% RH



OTHERS

MTBF

191.1Khrs min.      MIL-HDBK-217F (25°C)

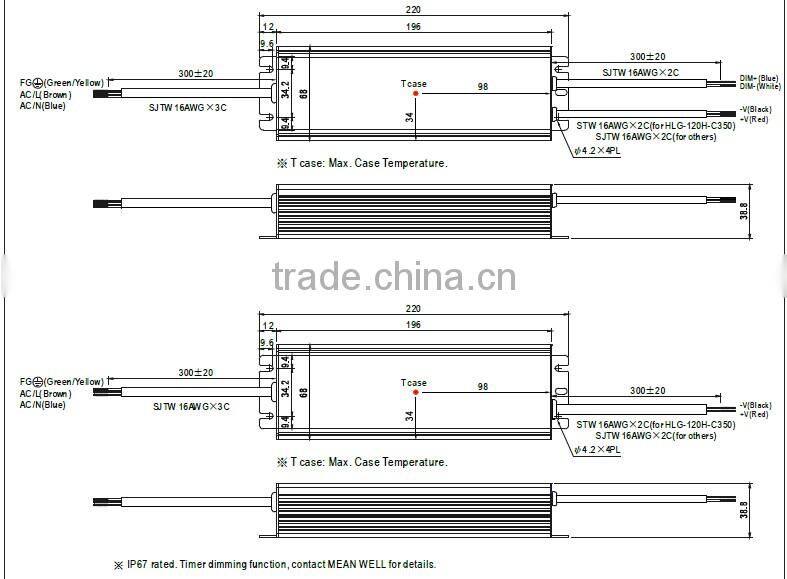

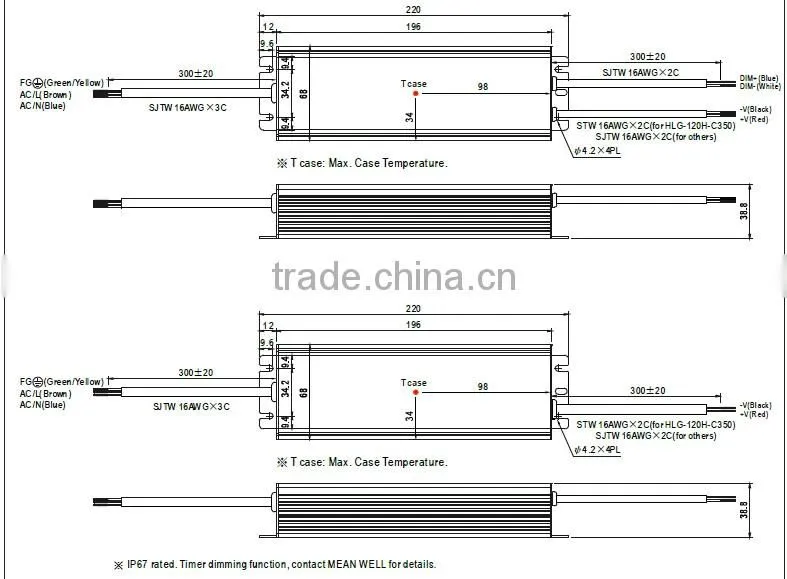

DIMENSION

220*68*38.8mm (L*W*H)

PACKING

1.04Kg; 12pcs/13.5Kg/0.8CUFT

NOTE

1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25

of ambient temperature.

2. The power supply is considered a component which will be installed into a final equipment.

The final equipment must be reconfirmed that it still meets EMC directives.For guidance on

how to perform these EMC tests, please refer to “EMI testing of component  power supplies.”

3.Derating may be needed under low input voltages. Please check the derating curve for more details.

4.Refer to warranty statement

 Mean well HLG-120H-C350 120W led driver with PFC 350ma 120w LED dimming driver 120w 350ma led driverMean well HLG-120H-C350 120W led driver with PFC 350ma 120w LED dimming driver 120w 350ma led driverMean well HLG-120H-C350 120W led driver with PFC 350ma 120w LED dimming driver 120w 350ma led driver
