Specifications
1.Be used together with pay-off machine and tension frame.2.Popular with customers from all over the global 3.fast shipping

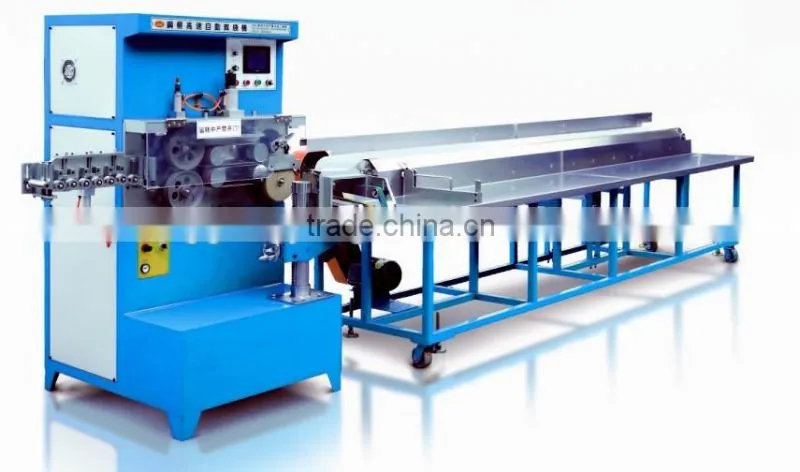

The standard type cutting machine:
The cutting ability scope: round wire Φ4.0mm-Φ10mm,flat wire thickness:2.0mm-4mm, width 4.5mm-11mm, it main motor using the imported motor, the speed of wire cutting reach up to 200m/min, max 150 strips per minute. The length of conveyor can be setting according to the customer requirement. The biggest features for in the process of operation, can continuous wire cutting. Suitable for working environment of high-speed and saving the manpower, high efficiency and saves time and effort, will suit your work needs.
Linking type wire cutting machine:
This kind of machine should be used together with pay-off machine and tension frame, cutting ability scope: round wire Φ4.0mm-Φ10mm, flat wire thickness: 2.0mm-4mm, width 4.5mm-11mm, it main motor using the imported motor, the speed of wire cutting reach up to 180m/min, max 150 strips per minute. The length of conveyor can be setting according to the customer requirement. The biggest features for in the process of operation, can continuous wire cutting. Suitable for working environment of high-speed and saving the manpower, high efficiency and saves time and effort, will suit your work needs.
Model |
Standard type cutting machine |
Linking type wire cutting machine |
Cutting speed |
200m/min, max 150 strips/min |
180m/min, max 150strips/min |
Cutting capacity |
Round cable Φ4.0m/m-Φ10m/m Parallel cable2.0m/m-4.0m/m Width 5.0m/m-10m/m |
Round cable Φ4.0m/m-Φ10m/m Parallel cable 2.0m/m-4.0m/m Width 4.5m/m-11m/m |
Min.Removal length |
600m/m |
600m/m |
Cutting precision |
±3mm |
±3mm |
Get-line |
Fight line |
Fight line |
Cable feeding Way |
iron axes, wooder axes |
Woring PVC extruder |
Cable feeding axes diameter |
(a)700m/m-950m/m (b)900m/m-1050m/m (c)1000m/m-1200m/m |
|
Engaged horse |
VS motor 2HP(main case) motor 1HP (feeding machine) |
VS motor 2HP(main case) motor 1HP (feeding machine) |
Engaged power |
380v+wire, 50HP |
380v+wire, 50HP |
Repudiated area |
L9MXW2MXH1.8M(standard length) |
L9MXW2MXH1.8M(standard length) |
Weight |
Tension rack 250kg conveger(four meter)320kg main unit 520kg wire unreeling machine 585kg gross weight 1630kg |
Tension rack 520kg cinvergr(four meter)320kg Total weight 840kg |
Painting |
Blueness |
Blueness |
