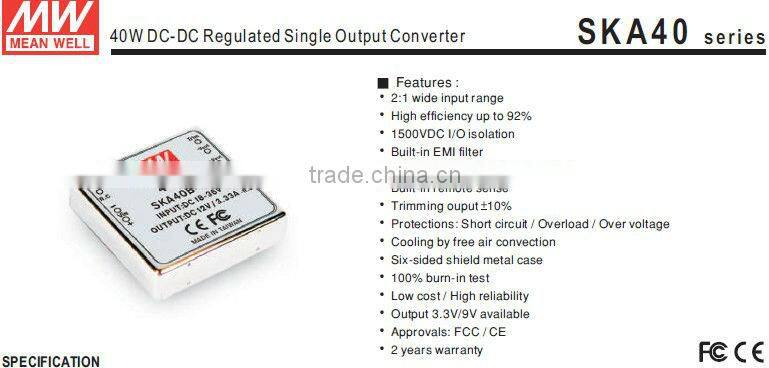

Meanwell 40W DC-DC Regulated Single Output Converter Switching Power Supply Unit

ORDER NO.

SKA40A-15

OUTPUT

DC OUTPUT VOLTAGE

15V

CURRENT RANGE

0.26 ~ 2.67A

RATED POWER

40W

RIPPLE & NOISE (max.) Note.2

100mVp-p

LINE REGULATION  Note.3

±0.5%

LOAD REGULATION Note.4

±0.5%

VOLTAGE ACCURACY

±2.0%

SWITCHING FREQUENCY

200KHz typ.

EXTERNAL CAPACITANCE LOAD (max.)

1000uF

EXTERNAL TRIM Adj. RANGE(Typ.)

±10%

INPUT

VOLTAGE RANGE

A: 9 ~ 18VDC     B: 18 ~ 36VDC     C: 36 ~ 75VDC

EFFICIENCY (Typ.)

90%

DC CURRENT

Full load

A: 3850mA B: 1900mA C: 1000mA

No load

A: 150mA B: 100mA C: 65mA

FILTER

Pi network

REMOTE CONTROL

Power ON : R.C ~ -Vin > 2.5VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short

PROTECTION

Fuse recommended

PROTECTION

(Note. 5)

OVER CURRENT

110 ~ 180% rated output power

Protection type : Hiccup mode, recovers automatically after fault condition is removed

SHORT CIRCUIT

All output equipped with short circuit

Protection type : Hiccup mode, recovers automatically after fault condition is removed

OVER VOLTAGE

5Vo : 7V ~ 8.95V ; 12Vo : 15V ~ 19.2V ; 15Vo : 18V ~ 23.3V           Protection type : Clamp by TVS diode

ENVIRONMENT

WORKING TEMP.

-40~+80°C (Refer to output load derating curve)

WORKING HUMIDITY

20 ~ 90%RH non-condensing

STORAGE TEMP., HUMIDITY

-55~+105°C, 10~95%RH

TEMP. COEFFICIENT

0.03%/°C (0~ 50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes

SAFETY &

EMC

WITHSTAND VOLTAGE

I/P-O/P:1.5KVDC

ISOLATION RESISTANCE

I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH

EMC EMISSION

Compliance to EN55022 Class A, FCC part 15 Class A

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria A

OTHERS

DIMENSION

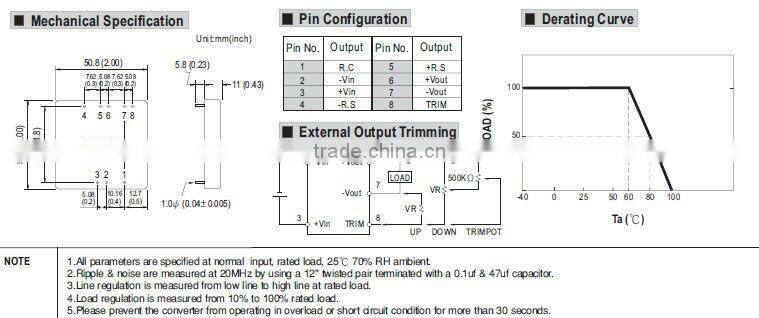

50.8*50.8*11.0 mm or 2"*2"*0.43" inch (L*W*H)

WEIGHT

60g

NOTE

1. All parameters are specified at normal input, rated load, 25°C 70% RH ambient .

2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor.

3.Line regulation is measured from low line to high line at rated load.

4.Load regulation is measured from 20% to 100% rated load.

5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
