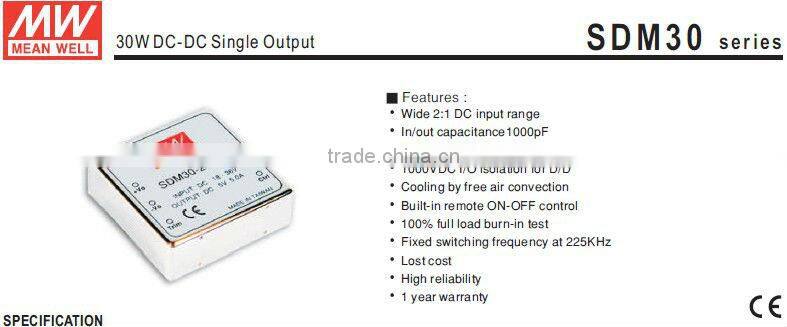

ORDER NO. |
SDM30-24S5 |
|
OUTPUT |
DC VOLTAGE |
5V |
RATED CURRENT |
5A |
|
CURRENT RANGE |
0 ~ 5A |
|
RATED POWER |
25W |
|
RIPPLE & NOISE (max.) Note.2 |
75mVp-p |
|
VOLTAGE TOLERANCE Note.3 |
±2.0% max. |
|
LINE REGULATION |
±1.0% |
|
LOAD REGULATION |
±1.0% |
|
TRIM OUTPUT |
±13%(Typ.) output voltage |
|
INPUT |
RATED DC INPUT |
12S: 12VDC 24S: 24VDC 48S: 48VDC |
VOLTAGE RANGE |
12S: 9.2 ~ 18VDC 24S: 18~ 36VDC 48S: 36~ 72VDC |
|
EFFICIENCY (Typ.) |
79% |
|
DC CURRENT |
12S:3.6A 24S:2A 48S:1A |
|
IDLE CURRENT |
12S:35mA 24S/48S:30mA |
|
PROTECTION |
OVERLOAD |
Above 105% rated output power |
Protection type : Over power limiting, recovers automatically after fault condition is removed | ||
OVER VOLTAGE |
5.75 ~ 7.5V |
|
Protection type : Shut off o/p voltage, clamping by zener diode | ||
SHORT CIRCUIT |
Protection type : Constant current limiting, recovers automatically after fault condition is removed |
|
FUNCTION |
ON/OFF CONTROL |
Logic "1" or open: power on Logic "0" short to Vin-: power off |
ENVIRONMENT |
WORKING TEMP. |
-25~+85°C (Refer to derating curve) |
STORAGE TEMP., HUMIDITY |
-25~+85°C, 0~95%RH |
|
TEMP. COEFFICIENT |
0.03%/°C (0~ 50°C) |
|
|
SAFETY & EMC (Note 6) |
SAFETY STANDARDS |
I/P-O/P:1.5KVDC |
ISOLATION VOLTAGE |
I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH |
|
ISOLATION RESISTANCE |
Compliance to EN55022 Class A, FCC part 15 Class A without external components |
|
EMC EMISSION |
Compliance to EN55022 (CISPR22) Class B |
|
|
EMC IMMUNITY |
Compliance to EN61000-2,3,4,6,8, EN55024, light industry level, criteria A |
OTHERS |
MTBF |
322.4K hrs min. MIL-HDBK-217F(25°C ) |

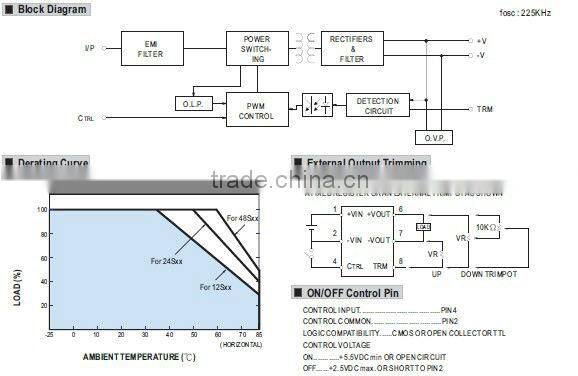

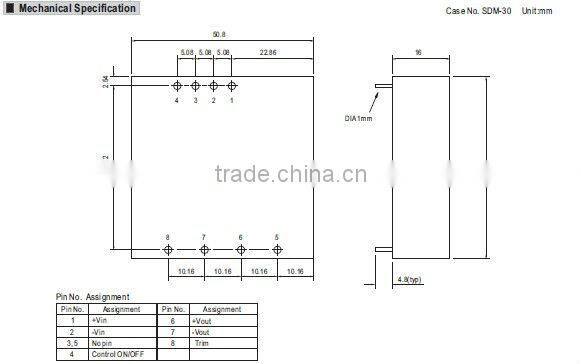

DIMENSION |
50.8*50.8*16mm (2"*2"*0.63") (L*W*H) |
|
WEIGHT |
0.1Kg; 150pcs/15.8Kg/0.97CUFT |
|
NOTE |
1. All parameters NOT specially mentioned are measured at 12,24,48VDC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. Short circuit not more than 60 second. 5. DC source wires≥ 5cm, an input external al capacitor 47 ~ 100uF is required. 6. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. |
|
