Home > Electrical & Electronics > Inverter > Power Inverter > Mean Well 15v 30w Switching Power Supply 30W 15V Converter

Mean Well 15v 30w Switching Power Supply 30W 15V Converter

Name: Mean Well 15v 30w Switching Power Supply 30W 15V Converter
Brand: Mean Well
SKU: 117411489
Availability: InStock

Mean Well 15v 30w Switching Power Supply 30W 15V Converter thumbnail-1

Mean Well 15v 30w Switching Power Supply 30W 15V Converter photo-1

US$ 1 - 20 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Mean Well

Model Number:

SKM30B-15

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Mean Well

Model Number SKM30B-15

Output Power Other, 30w

Output Type Single

Size 50.8*25.4*11.2 mm or 2"*1"*0.44" inch (L*W*H)

Weight 31.2g

Input Voltage 18 ~ 36VDC

Output Voltage 15v

Type DC/DC Converters

Output Frequency 47~63Hz

Output Current 0.2 ~ 2A

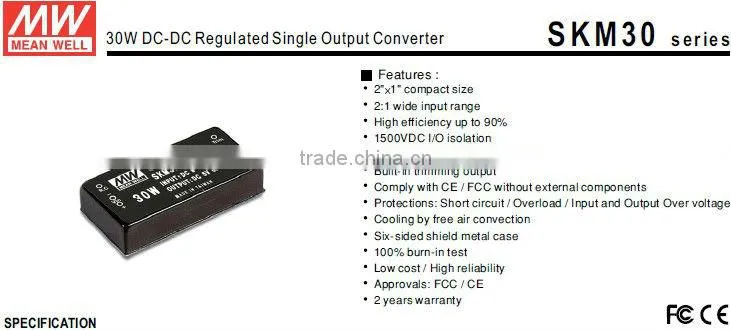

Specifications

ORDER NO.			SKM30B-15
OUTPUT	DC OUTPUT VOLTAGE		15V
	CURRENT RANGE		0.2 ~ 2A
	RATED POWER		30W
	RIPPLE & NOISE (max.) Note.2		120mVp-p
	LINE REGULATION Note.3		±0.2%
	LOAD REGULATION Note.4		±0.5%
	VOLTAGE ACCURACY		±2.0%
	SWITCHING FREQUENCY		300KHz typ.
	EXTERNAL CAPACITANCE LOAD (max.)		100uF
	EXTERNAL TRIM Adj.RANGE(Typ.)		-20 ~ +10%
INPUT	VOLTAGE RANGE		A: 9 ~ 18VDC B: 18 ~ 36VDC C: 36 ~ 75VDC
	UNDER VOLTAGE SHUTDOWN		A: 8VDC B: 16VDC C: 32VDC
	EFFICIENCY (Typ.)		90%
	DC CURRENT	Full load	1400mA
		No load	40mA
	FILTER		Pi network
	REMOTE CONTROL		Power ON : R.C ~ -Vin > 2.5VDC or open circuit ; Power OFF : R.C ~ -Vin < 0.5VDC or short
	PROTECTION		Fuse recommended
PROTECTION (Note. 5)	OVER CURRENT		110 ~ 180% rated output power
			Protection type : Hiccup mode, recovers automatically after fault condition is removed
	SHORT CIRCUIT		All output equipped with short circuit
			Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	Input(Typ.)	A: >20 ~ 25VDC B: >40 ~ 50VDC C: >80 ~ 100VDC input voltage Protection type : Shut down o/p voltage, recovers automatically after fault condition is removed
		Output(Typ.)	5Vo : 7V ~ 8.95V ; 12Vo : 15V ~ 19.2V ; 15Vo : 18V ~ 23.3V Protection type : Clamp by TVS diode
ENVIRONMENT	WORKING TEMP.		-40~+75°C (Refer to derating curve)
	WORKING HUMIDITY		20 ~ 90%RH non-condensing
	STORAGE TEMP., HUMIDITY		-55~+125°C, 10~95%RH
	TEMP. COEFFICIENT		0.03%/°C (0~ 50°C)
	VIBRATION		10 ~ 500Hz, 2G 10min./1 cycle, period for 60min. each along X, Y, Z axes
SAFETY & EMC	WITHSTAND VOLTAGE		I/P-O/P:1.5KVDC
	ISOLATION RESISTANCE		I/P-O/P: 100M Ohms / 500VDC / 25°C/ 70% RH
	EMC EMISSION		Compliance to EN55022 Class A, FCC part 15 Class A without external components
	EMC IMMUNITY		Compliance to EN61000-4-2,3,4,5,6,8, light industry level, criteria Acriteria A
OTHERS	MTBF		700khrs min.MIL-HDBK-217F(25°C )

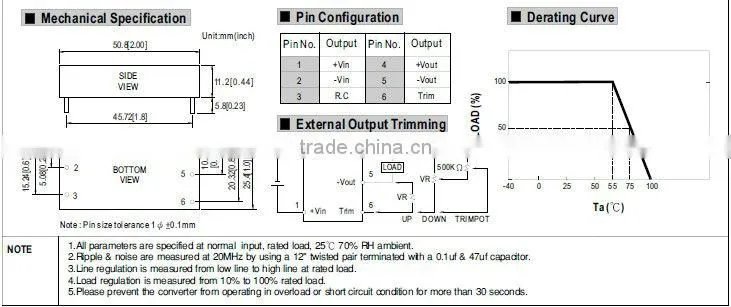

	DIMENSION		50.825.411.2 mm or 2"1"0.44" inch (LWH)
	WEIGHT		31.2g
NOTE	1. All parameters are specified at normal input, rated load, 25°C 70% RH ambient . 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3.Line regulation is measured from low line to high line at rated load. 4.Load regulation is measured from 20% to 100% rated load. 5.Please prevent the converter from operating in overload or short circuit condition for more than 30 seconds.
