Home > Electrical & Electronics > Inverter > Power Inverter > Mean Well UL CE CB SD-100C-24 Power Convereter 100W 24V Converter

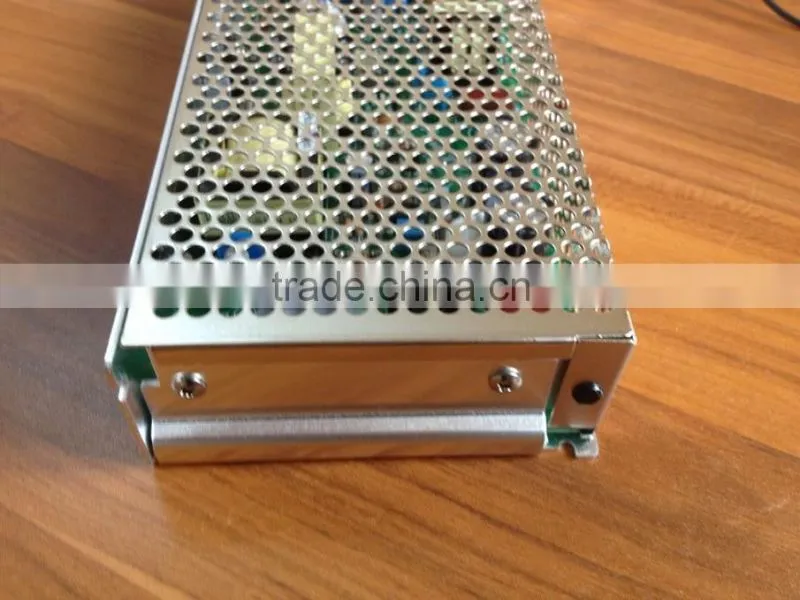

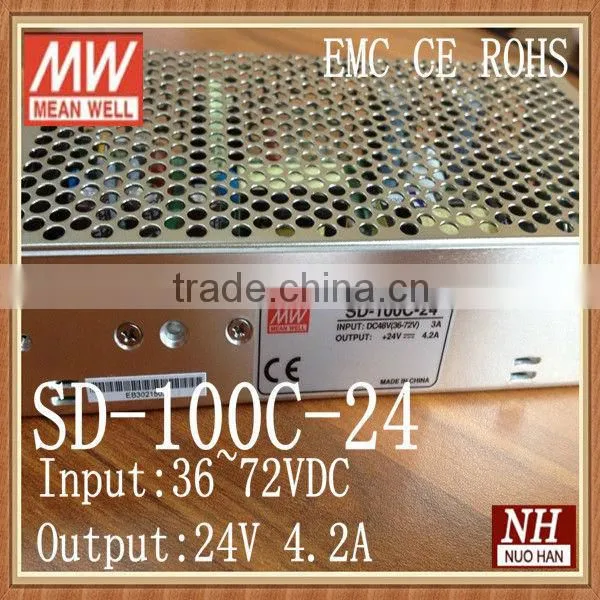

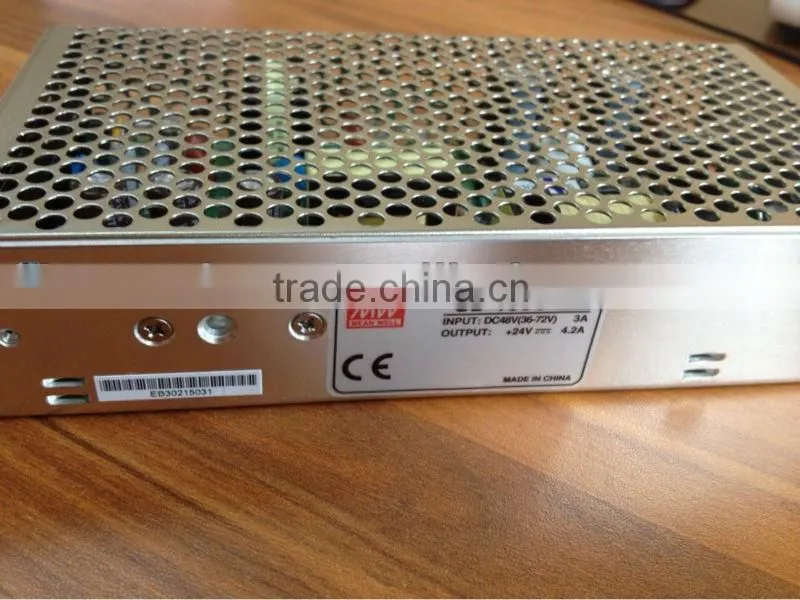

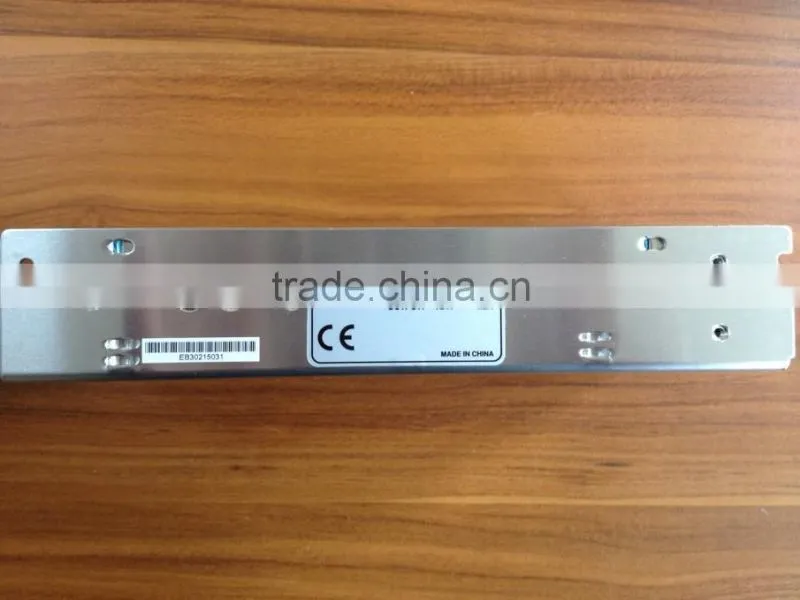

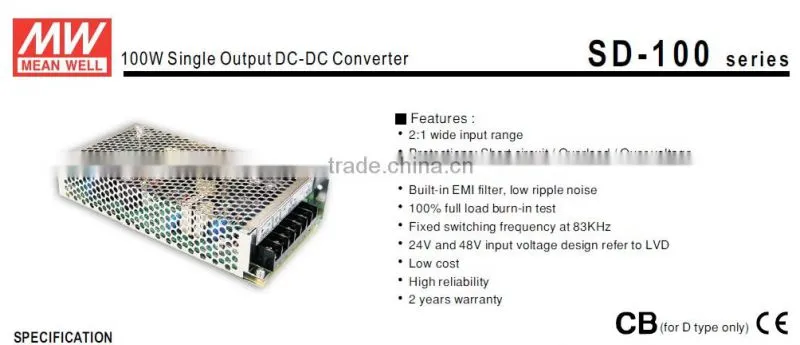

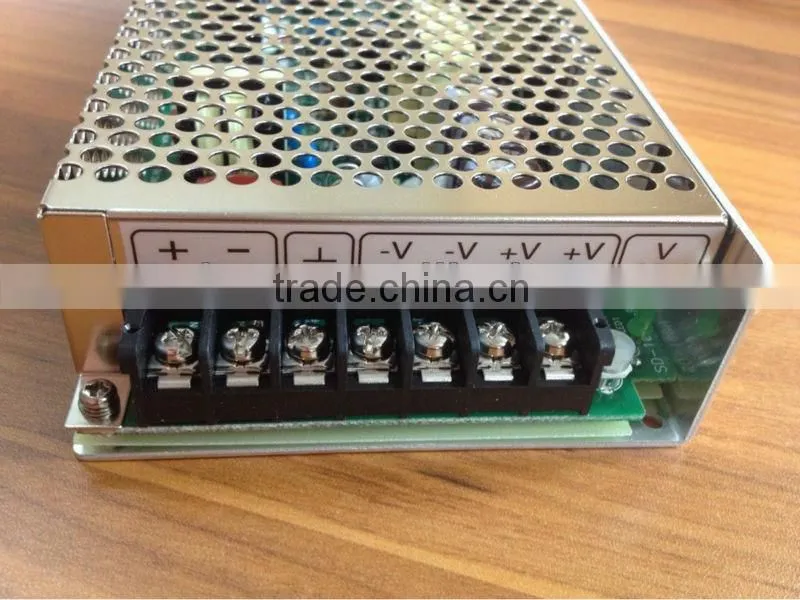

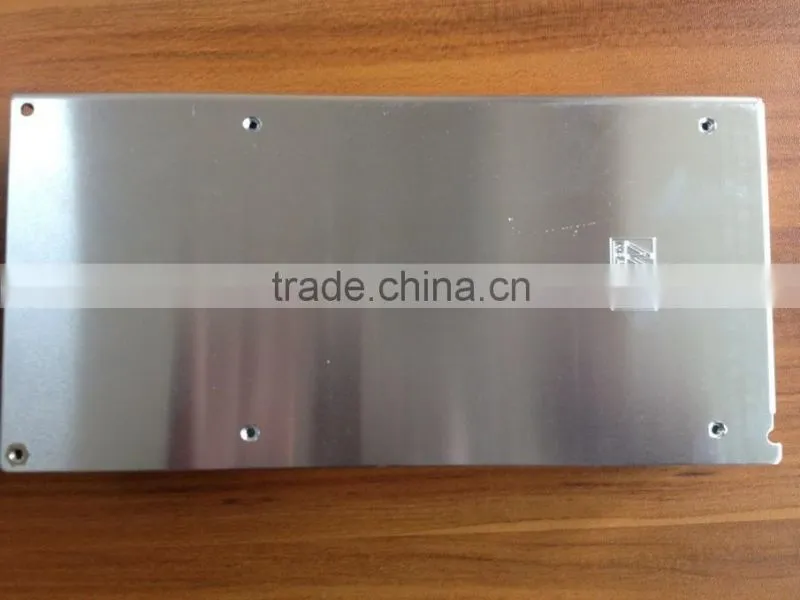

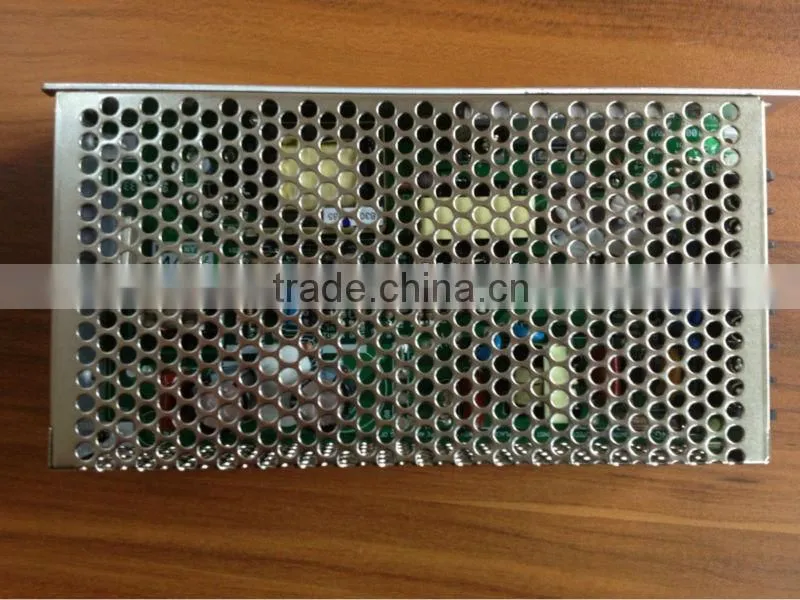

Mean Well UL CE CB SD-100C-24 Power Convereter 100W 24V Converter

Name: Mean Well UL CE CB SD-100C-24 Power Convereter 100W 24V Converter
Brand: Meanwell
SKU: 117410795
Availability: InStock

Mean Well UL CE CB SD-100C-24 Power Convereter 100W 24V Converter thumbnail-1

Mean Well UL CE CB SD-100C-24 Power Convereter 100W 24V Converter photo-1

US$ 1 - 100 MOQ: 1 Piece

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

SD-100C-24

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number SD-100C-24

Output Power Other, 100w

Output Type Single

Size 199*98*38mm (L*W*H)

Weight 0.65kg

Input Voltage 19 ~ 36VDC

Output Voltage 24v

Type DC/DC Converters

Output Frequency 50-60HZ

Output Current 4.2A

MODEL		SD-100C-24
OUTPUT	DC VOLTAGE	24V
	RATEDCURRENT	4.2A
	CURRENTRANGE	0~4.2A
	RATEDPOWER	100.8W
	RIPPLE&NOISE Note.2	150MVP-P
	VOLTAGE ADJ.RANGE	23 ~ 30VDC
	VOLTAGE TOLERANCE	±1.0%
	LINEREGULATION	±0.2%
	LOADREGULATION	±0.2%
	SETUP.RISEHOLD.TIME	2s, 50ms(only D mode) at full load
	HOLD UP TIME (Typ.)	20ms(only D mode) at full load
INPUT	VOLTAGE RANGE	B:19 ~ 36VDC C:36 ~ 72VDC D:72 ~ 144VDC or 85 ~ 132VAC
	EFFICIENCY	81%
	DC CURRENT	2.4A/48V
	INRUSH CURRENT (Typ.)	D:18A/96VDC
	LEAKAGE CURRENT	<0.75mA/120VAC(SD-100D)
PROTECTION	OVER LOAD	105 ~135% rated output power
	OVER LOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	31.5 ~ 37.5V/10% load
	OVER VOLTAGE	Protection type : Hiccup mode, recovers automatically after fault condition is removed

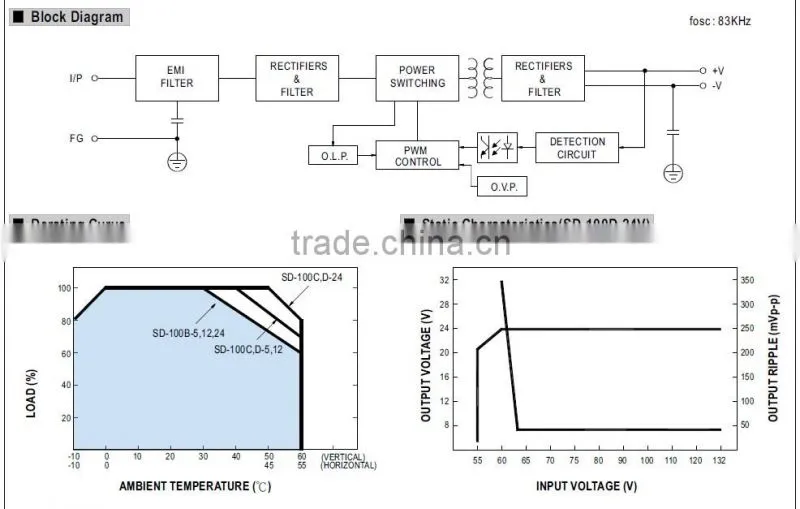

ENVIRONMENT	WORKING TEMP.	-10~+60°C (Refer to derating curve)
	WORKING HUMIDITY	-20~90%RH non-condensing
	STORAGETEMP HUMIDITY	-20~+85°C, 10~95%RH
	TEMPCOEFFICIENT	±0.03%/°C(0~50°C)
	VIBRATION	10~500HZ,2G 10min/1cycle period for 60 min each along X,Y,Z axes
SAFETY & EMC	SAFETY STANDARDS	IEC60950-1 CB approved by TUV (for D type only)
	WITHSTAND VOLTAGE	I/P-O/P:1.5KVAC I/P-FG:1.5KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P,I/P-FG,O/P-FG:100M Ohms / 500VDC / 25°C / 70% RH
	EMC EMISSION	Compliance to EN55022 (CISPR22) Class B
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,6,8, light industry level, criteria A
OTHERS	MTBF	356.7K hrs min.(SD-100B) 355.5K hrs min.(SD-100C) 341.9K Hrs min.(SD-100D) MIL-HDBK-217F (25°C )

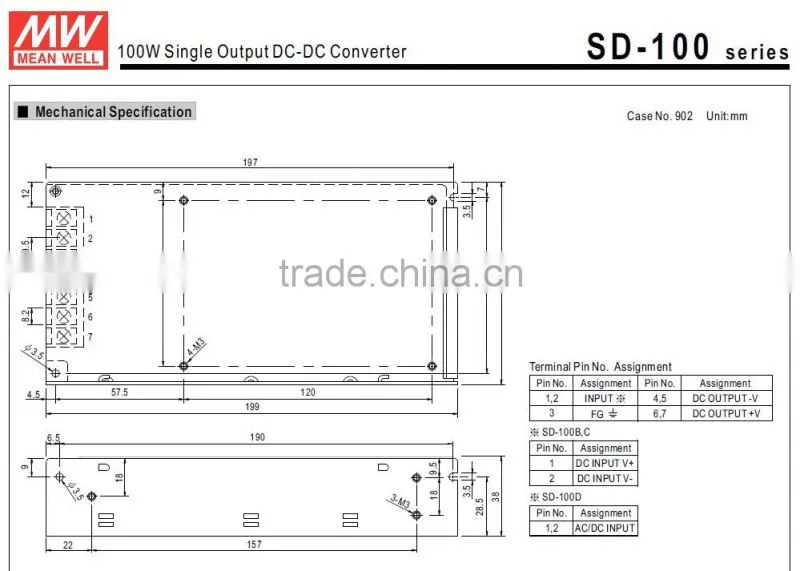

	DIMENSION	1999838mm (LWH)
	PACKING	0.65Kg; 20pcs/13.8Kg/0.8CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 24,48,96VDC input, rated load and 25°C of ambient temperature. 2. Ripple & noise are measured at 20MHz of bandwidth by using a 12" twisted pair-wire terminated with a 0.1uf & 47uf parallel capacitor. 3. Tolerance : includes set up tolerance, line regulation and load regulation. 4. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. For guidance on how to perform these EMC tests, please refer to .EMI testing of component power supplies..
