Home > Electrical & Electronics > Power Supply & Distribution > Switching Power Supply > Meanwell 600W Battery Power Supply/600W Single Output Battery Charger Switching/48v Mean Well Switching Power Supply

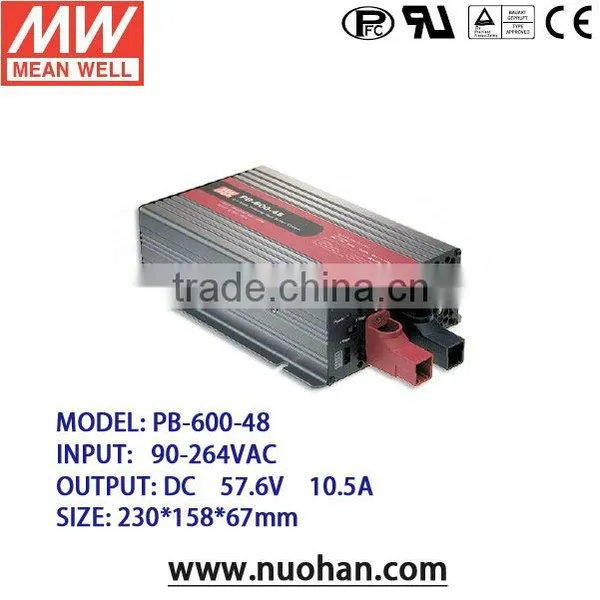

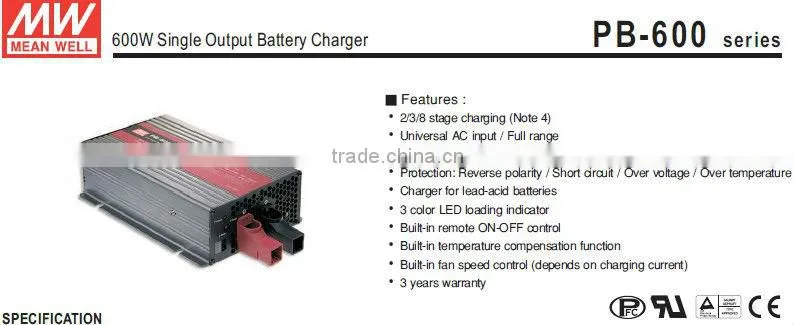

Meanwell 600W Battery Power Supply/600W Single Output Battery Charger Switching/48v Mean Well Switching Power Supply

Name: Meanwell 600W Battery Power Supply/600W Single Output Battery Charger Switching/48v Mean Well Switching Power Supply
Brand: Meanwell
SKU: 117408827

Meanwell 600W Battery Power Supply/600W Single Output Battery Charger Switching/48v Mean Well Switching Power Supply thumbnail-1

Meanwell 600W Battery Power Supply/600W Single Output Battery Charger Switching/48v Mean Well Switching Power Supply photo-1

US$ 1 - 100 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

PB-600-48

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number PB-600-48

Output Power Other, 600w

Output Type Single

Input Voltage Other, 90 ~ 264VAC 127 ~ 370VDC

Output Voltage 57.6V

Output Current 10.5A

MODEL		PB-600-48
OUTPUT	BOOST CHARGE VOLTAGE	57.6V
	FLOAT CHARGE VOLTAGE	55.2V
	RECOMMENDED BATTERY CAPACITY(AMP HOURS) Note 3	35 ~ 105AH
	BATTERY TYPE	Open & Sealed Lead Acid
	OUTPUT CURRENT (Typ.)	10.5A
INPUT	VOLTAGE RANGE	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	POWER FACTOR (Typ.)	0.95/230VAC 0.98/115VAC at full load
	EFFICIENCY (Typ.)	89%
	AC CURRENT (Typ.)	6.8A/115VAC 3.4A/230VAC
	INRUSH CURRENT (Typ.)	25A/115VAC 50A/230VAC
	LEAKAGE CURRENT	<3.5mA / 240VAC
	OVER VOLTAGE	64.5 ~ 69.5V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
	OVER TEMPERATURE	Protection type : Shut down o/p voltage, recovers automatically after temperature goes down
FUNCTION	REMOTE CONTROL	Open: Normal work Short: Stop Charging
	LEAKAGE CURRENT FROM BATTERY (Typ.)	1mA

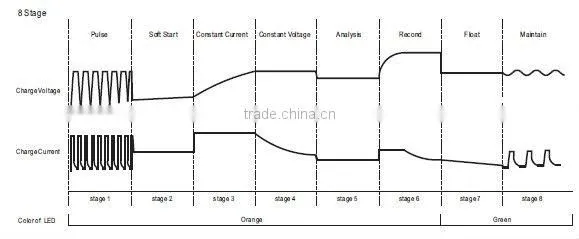

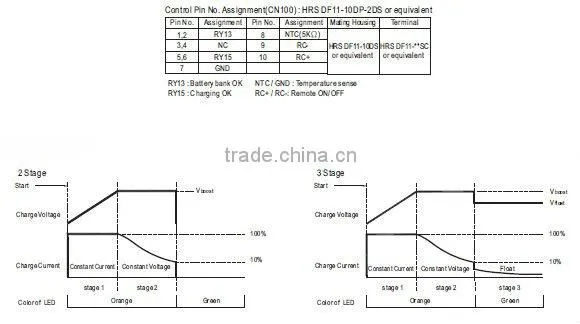

	FAST CHARGE	2 / 3 / 8 stage selectable
	CHARGING OK	Relay contact (RY15)
	OUTPUT OK	Relay contact (RY13)
	TEMPERATURE SENSE	By NTC
ENVIRONMENT	WORKING TEMP.	-20 ~ +60°C (Refer to derating curve)
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.05%/°C(0 ~ 50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes
SAFETY&EMC (Note 2)	SAFETY STANDARDS	UL1012, TUV EN60335-1, EN60335-2-29 (except for 48V), EN60950-1(48V only) approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P, I/P-FG, O/P-FG:100M Ohms/500VDC/25°C/70% RH
	EMCEMISSION	Compliance to EN55022 class B (CISPR22), EN61000-3-2,-3
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, EN55024; light industry level, criteria A
OTHERS	MTBF	135.6K hrs min. MIL-HDBK-217F (25°C)

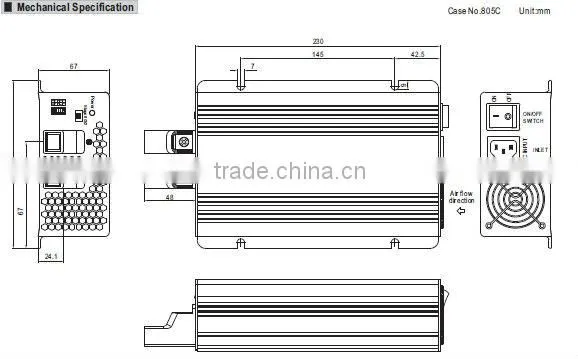

	DIMENSION	23015867mm(LWH)
	PACKING	2.2Kg; 6pcs/14.2Kg/1.76CUFT
NOTE	1. All parameters NOT specially mentioned are measured at 230VAC input, rated load and 25°C of ambient temperature. 2. The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meets EMC directives. 3. This is Mean Well's suggested range. Please consult your battery manufacturer for their suggestions about maximum charging current limitation. 4. Please choose the "3 stage" selection when the charger is used to charge the batteries and power the loads in the same time.
