Home > Electrical & Electronics > Power Supply & Distribution > Power Adapter > Mean Well 40W Industrial Desktop Adaptor Power Supply For Online Shopping

Mean Well 40W Industrial Desktop Adaptor Power Supply For Online Shopping

Name: Mean Well 40W Industrial Desktop Adaptor Power Supply For Online Shopping
Brand: Meanwell
SKU: 117408779
Availability: InStock

Mean Well 40W Industrial Desktop Adaptor Power Supply For Online Shopping thumbnail-1

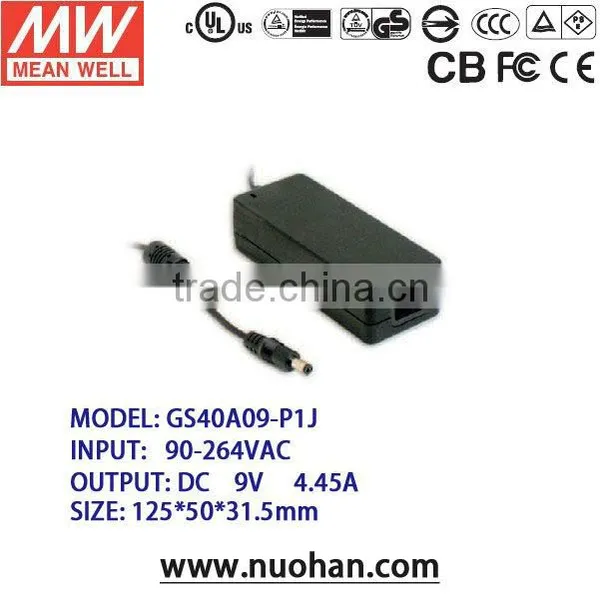

Mean Well 40W Industrial Desktop Adaptor Power Supply For Online Shopping photo-1

US$ 1 - 50 MOQ: 10 Pieces

Key Specifications

Get Latest Price

Place of Origin:

Zhejiang, China

Brand Name:

Meanwell

Model Number:

GS40A09-P1J

Contact Supplier Request Quote Chat Now

Hangzhou Nuohan Electronics Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai or Shenzhen

Delivery Detail:

Delivery time depends on order quantity.

Product Details
Company Profile
Contact Us

Place of Origin Zhejiang, China

Brand Name Meanwell

Model Number GS40A09-P1J

Output Type DC

Connection Desktop

ORDER NO.		GS40A09-P1J
OUTPUT	SAFETY MODEL NO.	GS40A09
	DC VOLTAGE Note.2	9V
	RATED CURRENT	4.45A
	CURRENT RANGE	0 ~ 4.45A
	RATED POWER	40W
	RIPPLE & NOISE (max.) Note.3	100mVp-p
	VOLTAGE TOLERANCE Note.4	±5.0%
	LINE REGULATION Note.5	±1.0%
	LOAD REGULATION	±5.0%
	SETUP, RISE TIME Note.7	1000ms, 30ms / 230VAC 1000ms, 30ms / 115VAC at full load
	HOLD UP TIME (Typ.)	50ms / 230VAC 15ms / 115VAC at full load
INPUT	VOLTAGE RANGE	90 ~ 264VAC 127 ~ 370VDC
	FREQUENCY RANGE	47 ~ 63Hz
	EFFICIENCY (Typ.)	85%
	AC CURRENT(Typ.)	1A / 115VAC 0.5A / 230VAC
	INRUSH CURRENT (max.)	65A / 230VAC
	LEAKAGE CURRENT(max.)	0.75mA / 240VAC
PROTECTION	OVERLOAD	110 ~ 150%rated output power
	OVERLOAD	Protection type : Hiccup mode, recovers automatically after fault condition is removed
	OVER VOLTAGE	9.45 ~ 12.15V
	OVER VOLTAGE	Protection type : Shut down o/p voltage, re-power on to recover
ENVIRONMENT	WORKING TEMP.	-30 ~ +60°C(Refer to "Derating Curve")
	WORKING HUMIDITY	20~90% RH non-condensing
	STORAGE TEMP., HUMIDITY	-40~+85°C, 10~95%RH
	TEMP. COEFFICIENT	±0.03%/°C (0~50°C)
	VIBRATION	10 ~ 500Hz, 2G 10min./1cycle, period for 60min. each along X, Y, Z axes
SAFETY&EMC (Note. 6)	SAFETY STANDARDS	UL60950-1, TUV EN60950-1, BSMI CNS14336, CCC GB4943, J60950-1(except for 48V) approved
	WITHSTAND VOLTAGE	I/P-O/P:3KVAC I/P-FG:2KVAC O/P-FG:0.5KVAC
	ISOLATION RESISTANCE	I/P-O/P:100M Ohms /500VDC/25°C/70% RH
	EMC EMISSION	Compliance to EN55022 class B, EN61000-3-2,3, FCC PART 15 / CISPR22 class B, CNS13438 class B, GB9254 class B, GB17625.1
	EMC IMMUNITY	Compliance to EN61000-4-2,3,4,5,6,8,11, light industry level, criteria A
OTHERS	MTBF	711K hrs min. MIL-HDBK-217F(25°C)
	DIMENSION	1255031.5mm (LWH)
	PACKING	0.28Kg; 40pcs/12.02Kg/1.05CUFT
CONNECTOR	PLUG	Standard type P1J: 2.1* 5.5* 11mm, tuning fork type, center positive for stock ; Other type available by customer requested
CONNECTOR	CABLE	See page2; Other type available by customer requested
NOTE	1.All parameters are specified at 230VAC input, rated load, 25°C 70% RH ambient. 2.DC voltage: The output voltage set at point measure by plug terminal & 50% load. 3.Ripple & noise are measured at 20MHz by using a 12" twisted pair terminated with a 0.1uf & 47uf capacitor. 4.Tolerance: includes set up tolerance, line regulation, load regulation. 5.Line regulation is measured from low line to high line at rated load. 6.The power supply is considered a component which will be installed into a final equipment. The final equipment must be re-confirmed that it still meetsEMC directives. 7. Length of set up time is measured at first cold start. Turning ON/OFF the power supply may lead to increase of the set up time.
