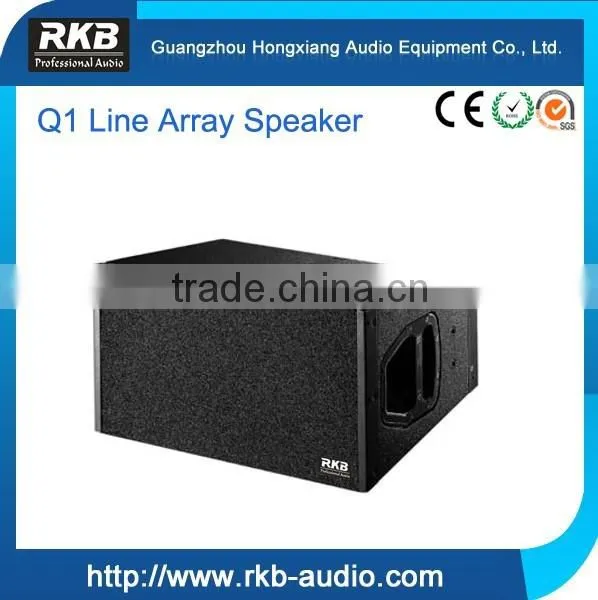

Model: Q1 daul 10 inch 2 way church sound systems line array speaker system
Features: |
|
*Q1 is a two-way passive line array speaker, consists of dual 10” neodymium woofers and one piece of 3” compression tweeter fitted to a toroidal wave shaping horn. *The perfect dispersion pattern allows the Q1 to construct vertical columns which produce a curved coherent wave front. *Vertical configurations can be starting from two cabinets to twenty cabinets for different users or applications. *The enclosure is constructed by high-strength plywood, incorporates a pair of metal handles. *A rigid metal grille with acoustically transparent form inside is constructed in the front, to protect the cabinet. *The combination of Q1 and Q2(sub) makes the sound quality the best, clear and transparent in high frequency, mellow and elastic in middle and low frequency. *Mostly applied in indoor and outdoor live shows, conference hall, small auditorium
|
Applications: |
|
*Business clubs sound system *Nightclubs reinforcement *Bars/High-class KTV rooms speaker system *High-class hotels/ Theaters speaker box *Electronic classrooms /Multi-functional halls *Permanent sound system installation |
Specifications: |
Model |
Q1 |
Components |
LF:2x10” |
Frequency Response |
60Hz -18kHz(±3dB) |
Sensitivity(1W/1M) |
HF:113dB/LF:103dB |
Maximum Peak SPL |
139dB |
Rated Power(RMS) |
800W |
Peak Power(PEAK) |
1600W |
Impedance(Ohm) |
8 Ohm |
Crossover |
1.2 KHz |
Dispersion Angle(-6dB) |
75H x 15V |
Connectors |
2xNL4 Speakon |
Riggings |
Standard Rigging Attached |
Enclosure Material |
High-strength Plywood |
Cabinet Finish |
Germany Water Paint |
Protective Grille |
Black Perforated Steel with Acoustic Cloth on surface |
Dimensions (mm) |
580*392*306 |
Net. W. |
23 kg |
