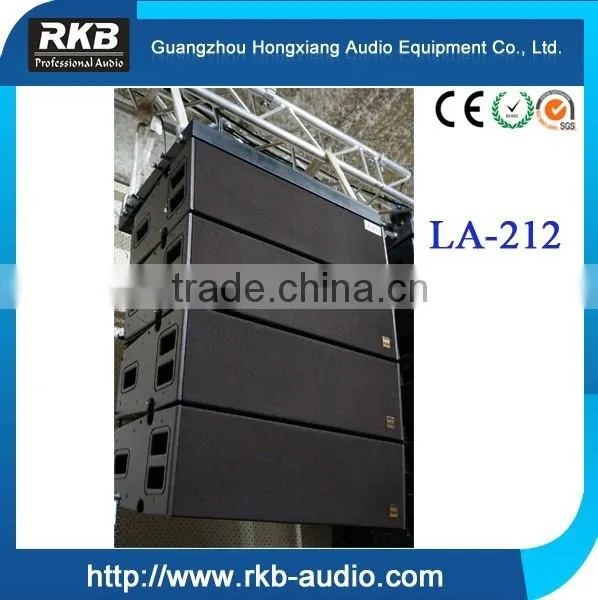

LA-212 three way daul 12 inch pro line array speaker

Features:

*LA-212 is a passive three-way line array system, with frequency response 50Hz-19KHz.

*Extremely powerful dual 12” neodymium magnet woofers and dual 44mm voice coil neodymium manget tweeters, together with 4 pieces of 6.5” MF drivers, provides unbelievable excellent sound and a wide dynamic range.

*High SPL, designed for long-distance touring sound system.

*Wide sound coverage and ultra-high resolution.

*Super-low distortion in super-high sound pressure level.

*The enclosure is constructed by high-strength plywood, with panel in 18mm thick, and other parts in 15mm.

*Trapezoidal speaker box design with the seamless gap between two cabinets.

*High-strength rigging hardware, easy and safe to install.

Applications:

*Large theaters sound system

*Auditoriums reinforcement

*Outdoor stadiums audio system

*Large music halls speaker system

*Large conference center sound

*Large touring sound system

Specifications:

Model

LA-212

Components

LF: 2x12" (Neodymium Magnet)
MF:4x6.5" (Ferrite Magnet)
HF: 2x1.75" (Neodymium Magnet)

Frequency Response

50Hz - 19kHz(±3dB)

Sensitivity(1W/1M)

LF: 129dB   MF: 130dB HF:135dB

Maximum Peak SPL

141dB

Rated Power(RMS)

HF:100W; MF:300W LF:800W

Peak Power(PEAK)

HF:200W MF:600W LF:1600W

Impedance(Ohm)

HF:12 Ohm; MF:8 Ohm; LF:8 Ohm

Crossover

/

Dispersion Angle(-6dB)

90H x 0-10 V

Connectors

2xNL8 Speakon

Riggings

Standard Rigging Attached

Enclosure Material

High-strength Plywood

Cabinet Finish

Germany Water Paint

Protective Grille

Black Perforated Steel with Acoustic Cloth on surface

Dimensions (mm)

356*1120*688

Net. W.

60 kg
