Mean Well 2000w 24v with PFC function High efficiency High Power density Front End Power supply

MODEL

RCP-2000-24

OUTPUT

DC  VOLTAGE

24V

RATED CURRENT

80A

CURRENT  RANGE

0 ~ 80A

RATED POWER

1920W

RIPPLE&NOISE (max.)   Note.2

200mVp-p

VOLTAGE ADJ. RANGE

21~ 28V

VOLTAGE TOLERANCE Note.3

±1.0%

LINE REGULATION

±0.5%

LOAD REGULATION

±0.5%

SETUP, RISE TIME

1500ms, 60ms / 230VAC   at full load

HOLD UP TIME (Typ.

16ms/230VAC at 75% load 10ms/230VAC at full load

 INPUT

VOLTAGE RANGE

90 ~ 264VAC          127 ~ 370VDC

FREQUENCY RANGE

47 ~ 63Hz

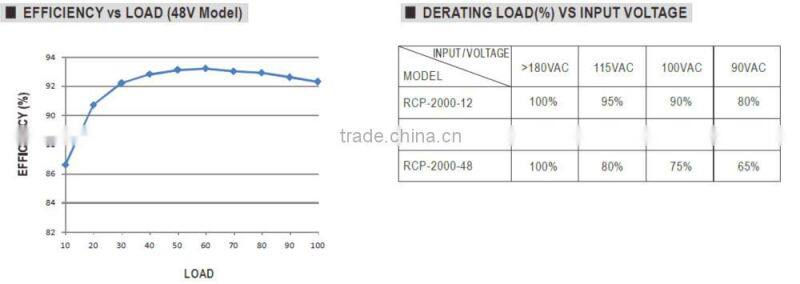

EFFICIENCY (Typ.)

90.5%

AC CURRENT (Typ.)

16A/115VAC    10A/230VAC

INRUSH CURRENT (Typ.)

COLD START  50A

LEAKAGE CURRENT

<1.1mA / 230VAC

PROTECTION

OVER LOAD

105 ~ 125% rated output power

Protection type : Constant current limiting, unit will shut down after

 3 sec. re-power on to recover

OVER TEMPERATURE

85°C± 5°C (TSW:detect on heatsink of power transistor )  85°C± 5°C

(TSW2) detect on heatsink of power diode

Protection type : Shut down o/p voltage, re-power on to recover after

 temperature goes down

OVER VOLTAGE

29.5~ 35V

Protection type : Shut down o/p voltage, re-power on to recover

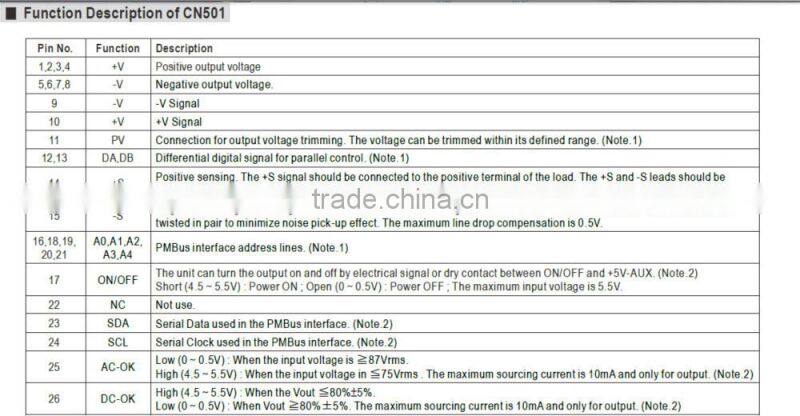

FUNCTION

AUXILIARY POWER

5V @ 0.3A 12V @ 0.8A

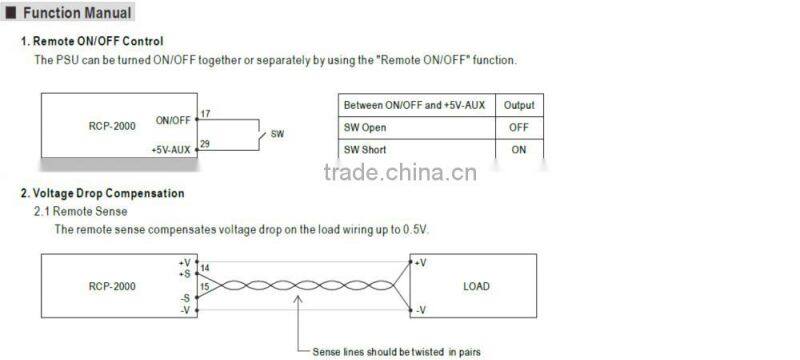

REMOTE ON/OFF CONTROL

By electrical signal or dry contact     ON:short     OFF:open

DC OK SIGNAL

The TTL signal out, refer to function manual

AC FAIL SIGNAL

The TTL signal out, refer to function manual

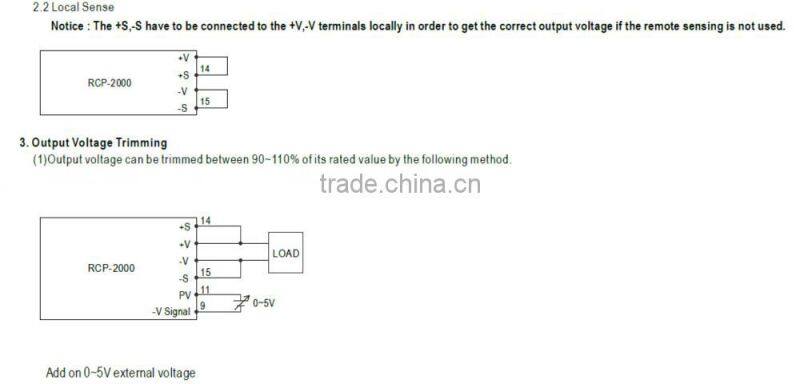

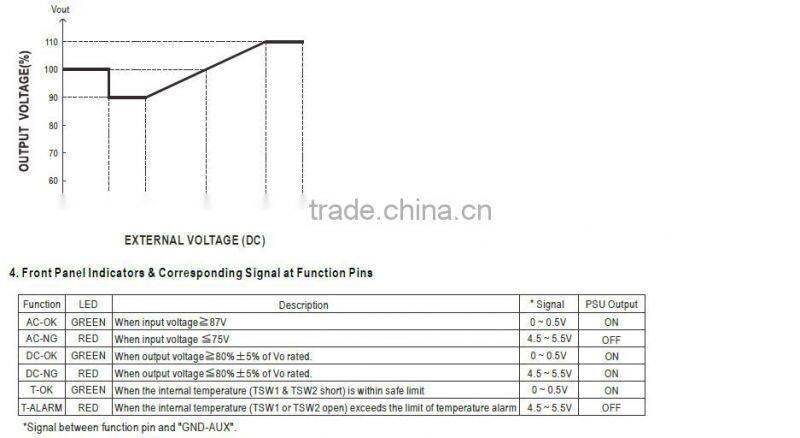

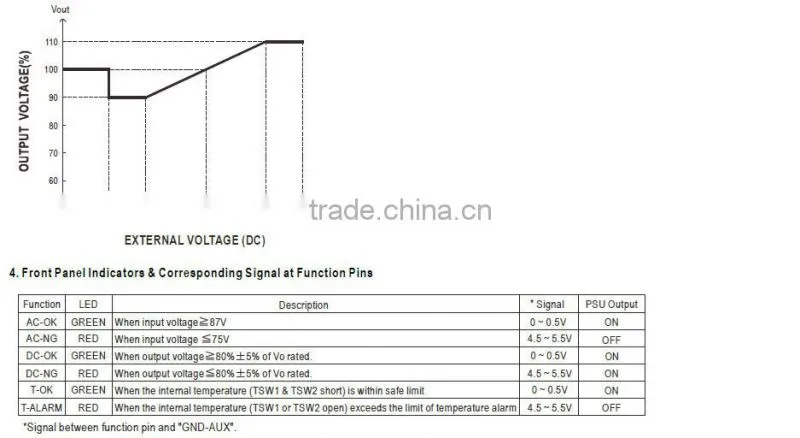

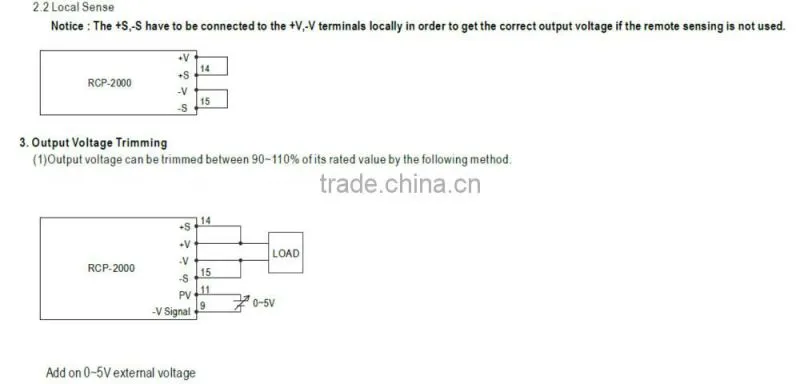

OUTPUT VOLTAGE TRIM

Adjustment of output voltage, possible between 90 ~ 110% of rated output

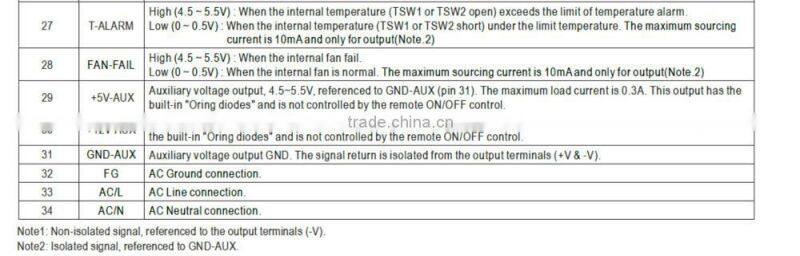

OVER TEMP WARNING

Logic " High" for over temperature warning, refer to function manual

ENVIRONMENT

WORKING TEMP.

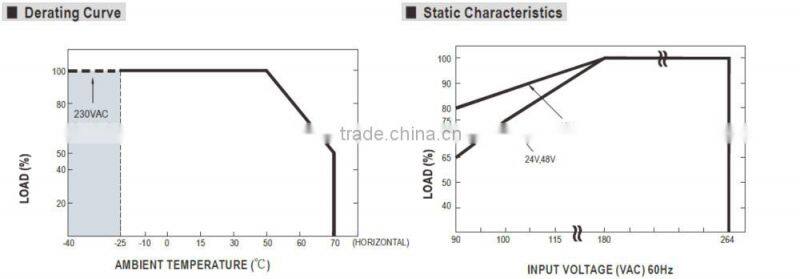

-40~+70°C (Refer to derating curve)

WORKING HUMIDITY

20~90% RH non-condensing

STORAGE TEMP., HUMIDITY

-40~+85°C, 10~95%RH

TEMP. COEFFICIENT

±0.03%/°C (0~50°C)

VIBRATION

10 ~ 500Hz, 2G 10min./1cycle, 60min. each along X, Y, Z axes

SAFETY &

EMC

SAFETY STANDARDS

UL60950-1, TUV EN60950-1 approved

WITHSTAND VOLTAGE

I/P-O/P:3KVAC    I/P-FG:2KVAC O/P-FG:0.7KVAC

EMC EMISSION

Compliance to EN55022 (CISPR22) Conduction Class B, Radiation

Class A ; EN61000-3-2,-3

EMC IMMUNITY

Compliance to EN61000-4-2,3,4,5,6,8,11,EN61000-6-2(EN50082)heavy industry level, criteria A

ISOLATION  RESISTANCE

I/P-O/P, I/P-FG, O/P-FG:100M Ohms / 500VDC / 25 / 70% RH

OTHERS

MTBF

60.1K hrs min. MIL-HDBK-217F (25 )

DIMENSION

295*127*41mm (L*W*H)

PACKING

2Kg; 6pcs/13Kg/1.04CUFT
