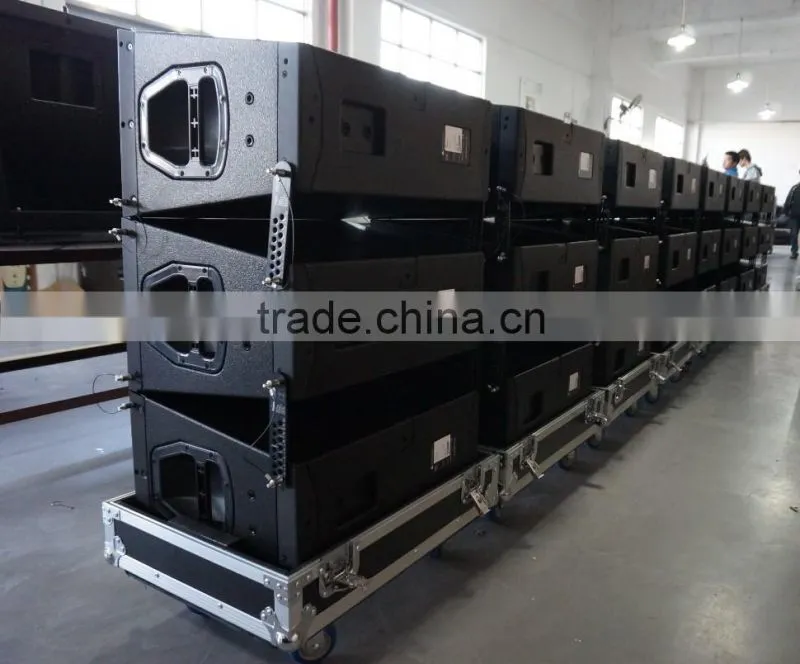

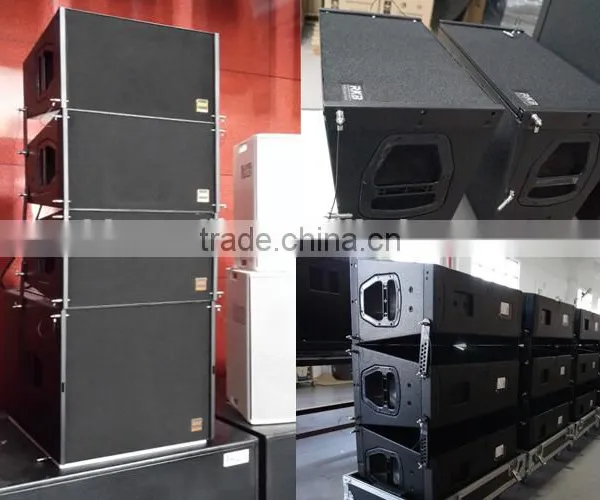

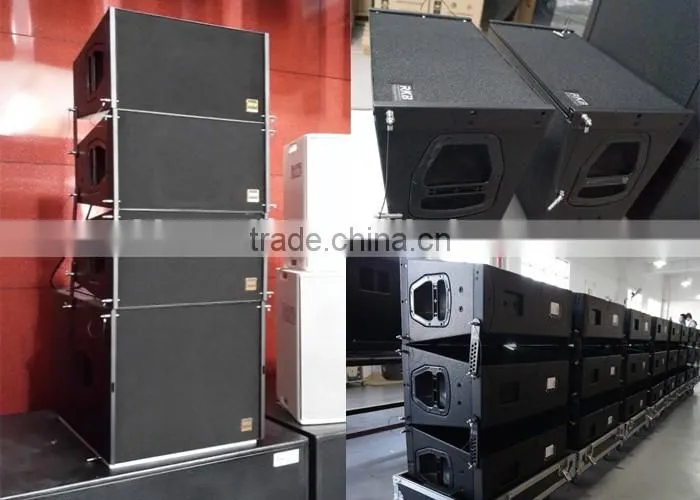

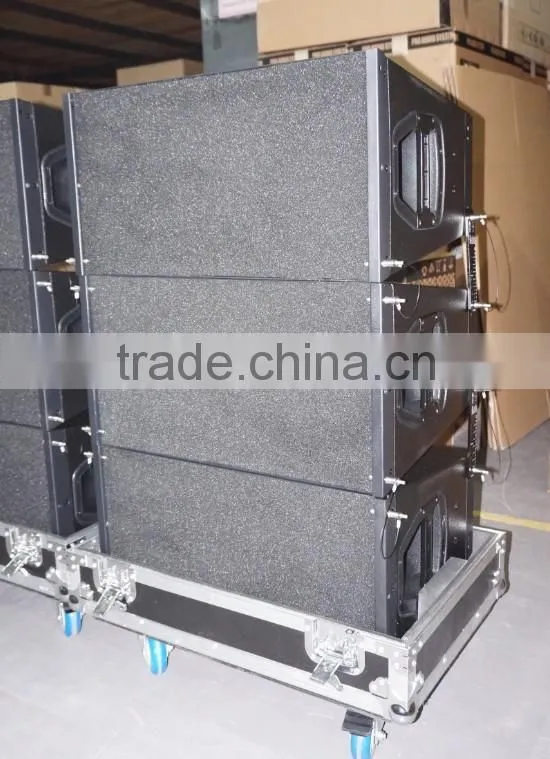

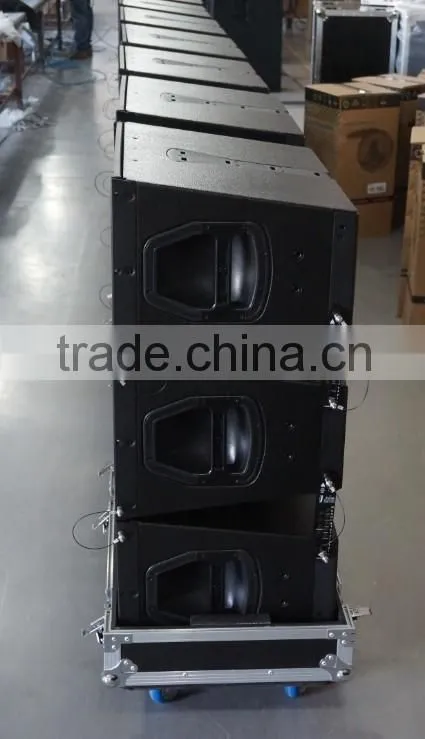

Description of Q1 line array China / line array setup / line array system:

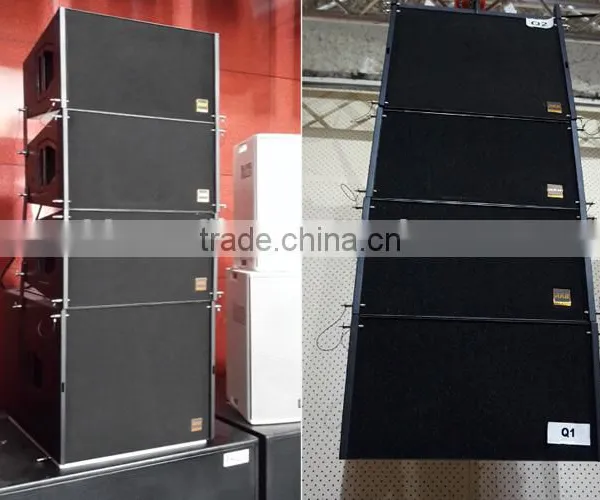

Two-way passive line array system Q Series, consists of dual 10” neodymium woofers and one piece of 3” compression tweeter fitted to a toroidal wave shaping horn.

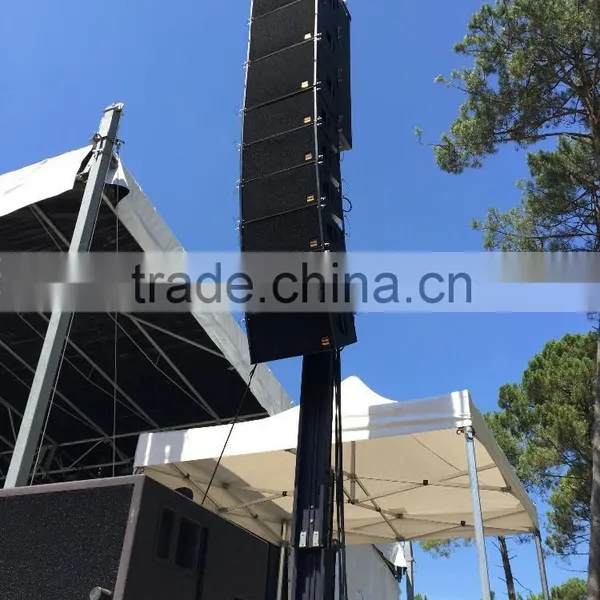

The perfect dispersion pattern allows the Q1 to construct vertical columns which produce a curved coherent wave front.
Vertical configurations can be starting from two cabinets to twenty cabinets for different users or applications.
The enclosure is constructed by high-strength plywood, incorporates a pair of metal handles.
A rigid metal grille with acoustically transparent form inside is constructed in the front, to protect the cabinet.
The combination of Q1 and Q2 (sub) makes the sound quality the best, clear and transparent in high frequency, mellow and elastic in middle and low frequency.

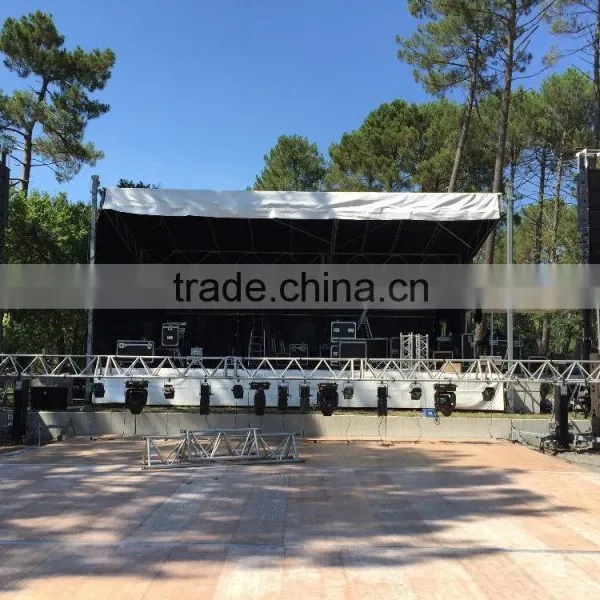

Mostly applied in indoor and outdoor live shows, conference hall, and small auditorium.
Competitive Advantage of Q1 line array China / line array setup / line array system:
Every cabinets were manufactured by our own factory with CNC cutting machine, which can make sure the accuracy of the sizes.
The speaker box is using Germany water paint, which is environment-protected.
Glass Fiber Reinforced Plastic (FRP) can be applied to the cabinet on requirement, so as to make the box waterproof.
Applications of Q1 line array China / line array setup / line array system:
Business clubs/ Nightclubs
Bars/High-class KTV rooms
High-class hotels/ Theaters
Electronic classrooms /Multi-functional halls
Permanent Installation
Specifications of Q1 line array China / line array setup / line array system:
Model |
Q1 |
Q2 |
Components |
LF:2x10” Neodymium |
1×18" woofer Neodymium |
Frequency Response |
60Hz -18kHz(±3dB) |
36Hz -150Hz(±3dB) |
Sensitivity(1W/1M) |
HF:113dB/LF:103dB |
101dB |
Maximum Peak SPL |
139dB |
133dB |
Rated Power(RMS) |
800W |
800W |
Peak Power(PEAK) |
1600W |
1600W |
Impedance(Ohm) |
8 Ohm |
8 Ohm |
Crossover |
1.2 KHz |
/ |
Dispersion Angle(-6dB) |
75H x 15V |
/ |
Connectors |
2xNL4 Speakon |
2xNL4 Speakon |
Riggings |
Standard Rigging Attached |
Standard Rigging Attached |
Enclosure Material |
High-strength Plywood |
High-strength Plywood |
Cabinet Finish |
Germany Water Paint |
Germany Water Paint |
Protective Grille |
Black Perforated Steel with Acoustic Cloth on surface |
Black Perforated Steel with Acoustic Cloth inside |
Dimensions (mm) |
580*392*306 |
580*488*650 |
Net. W. |
23 kg |
40 kg |
About RKB Audio:
1. location
our company is located in one of the largest exported city
- GuangZhou, China
2. products:
Guangzhou Hongxiang Audio Equipment Co., Ltd. is a manufacturer of professional speakers, passive line array speakers, passive two-way speakers, passive subwoofer speakers, professional amplifiers and other audio equipment.
3. advantage:
prompt delivery
the same price we have better quality ,the same quality we have best price
4. service:
A pro engineer team and foreign trade team are always ready to service our custommers.
5. OEM is welcome,your LOGO on items is available
6. Payment terms : (TT// Western Union) 30% deposit in advance,balance before shipment.
7.delivery time: sample is 7-15 days. mass order generally1-3weeks depends on the order quantity and your specific requirements.

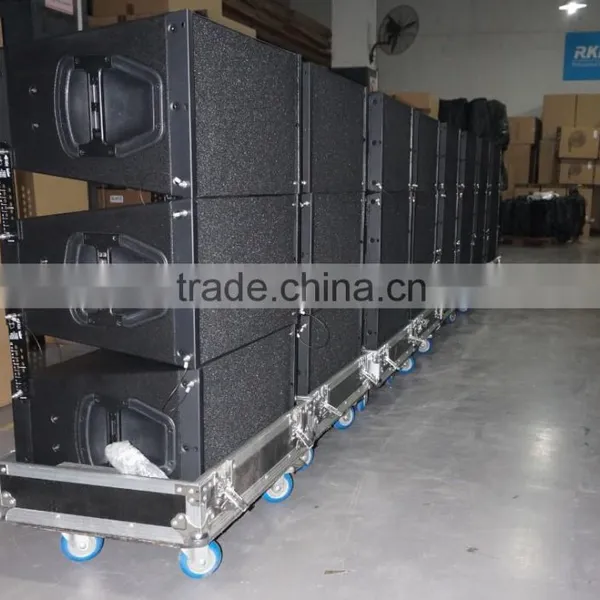

RKB Audio factory:

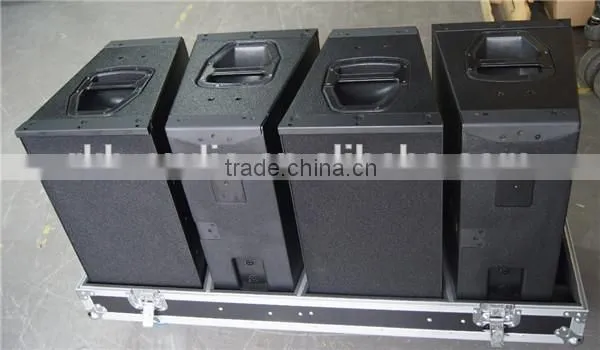

package:
1.individual packing
2.Hard carton box or Flight case at extra cost
3.We would package acoording to your requirment
shipping:
1. main port: Guangzhou
2. FOB/EXW. our sales team are capable enough to arrange the shipment if you want
3. all the cargoes under inspection before shipment
