sound system audio equipment/sound equipment

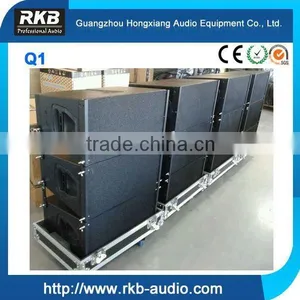

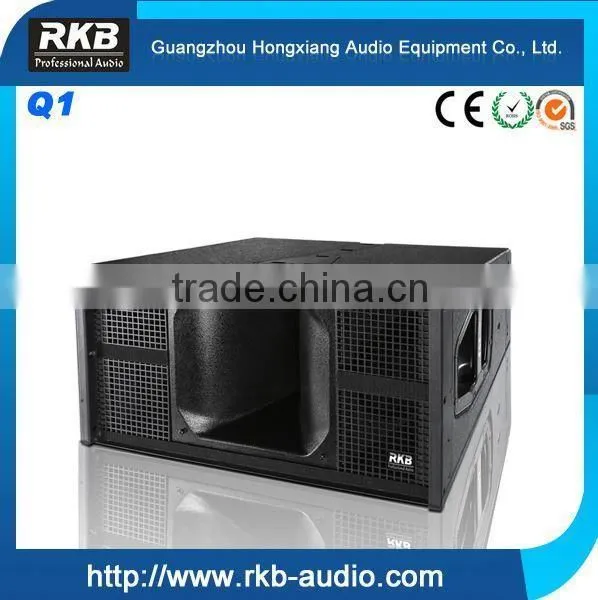

*Q1 is a two-way passive line array speaker, consists of dual 10" neodymium woofers and one piece of 3" compression neodymium tweeter fitted to a toroidal wave shaping horn.

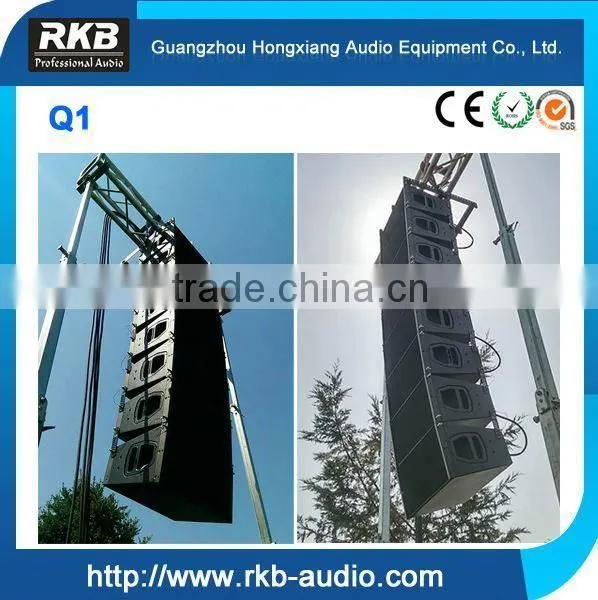

*The perfect dispersion pattern allows the Q1 to construct vertical columns which produce a curved coherent wave front.

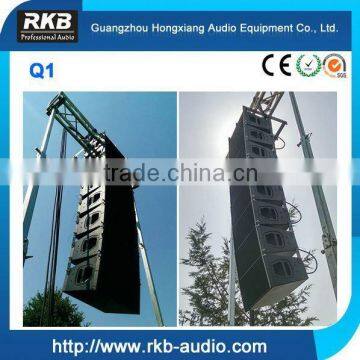

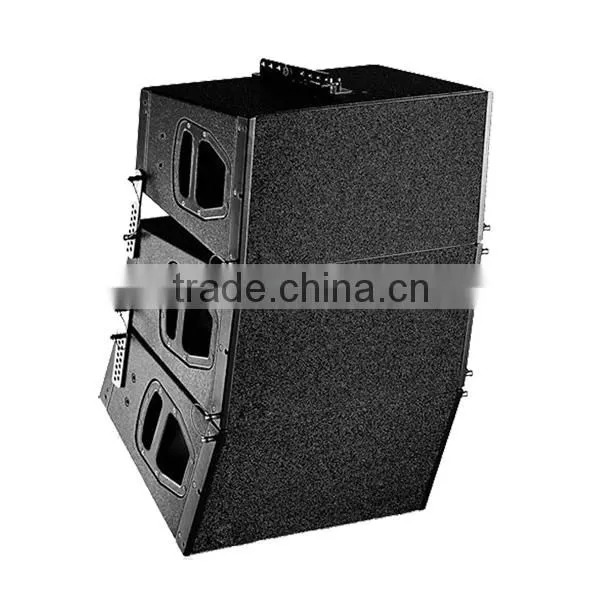

*Vertical configurations can be starting from two cabinets to twenty cabinets for different users or applications.

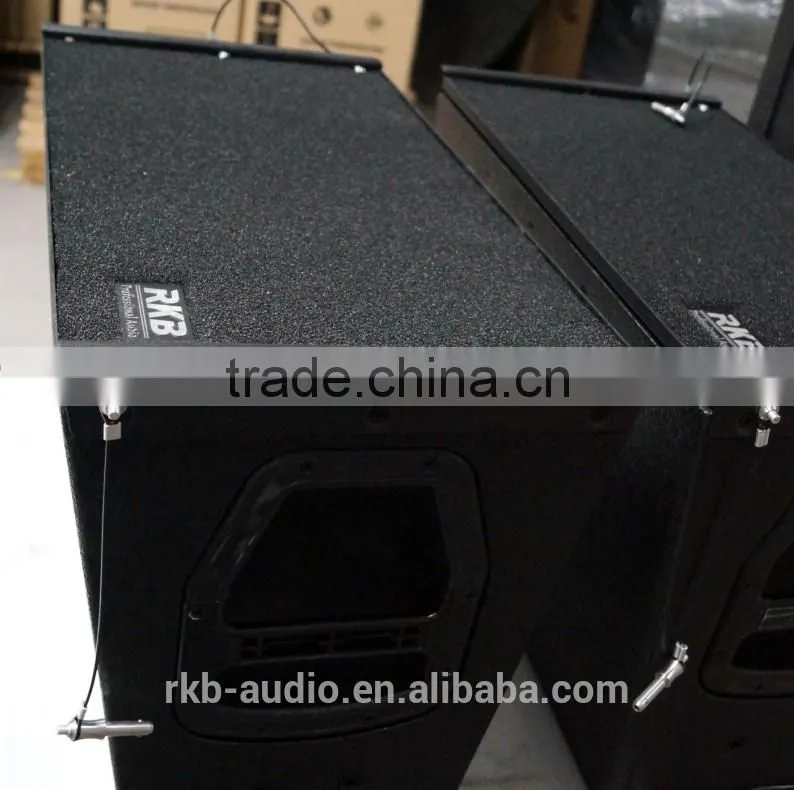

*The enclosure is constructed by high-strength 18 mm plywood, incorporates a pair of metal handles.
*A rigid metal grille with acoustically transparent form inside is constructed in the front, to protect the cabinet.

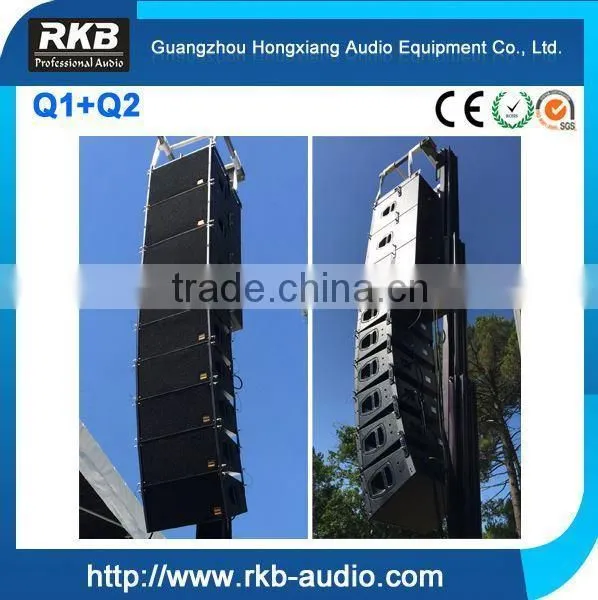

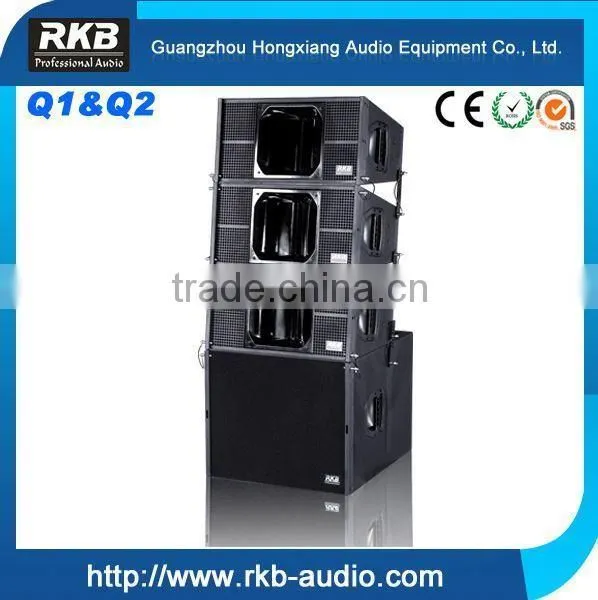

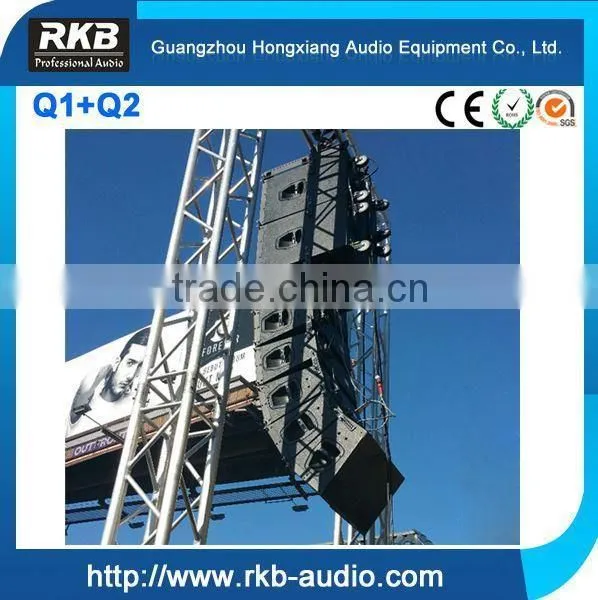

*The combination of Q1 and Q2(sub) makes the sound quality the best, clear and transparent in high frequency, mellow and elastic in middle and low frequency.

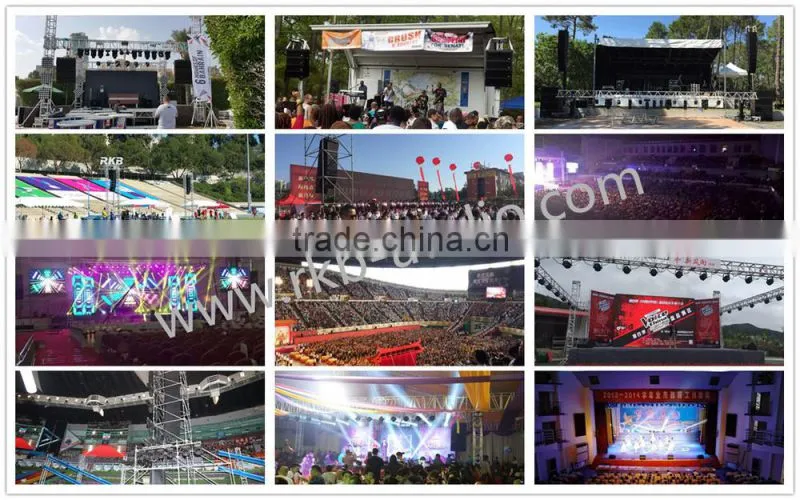

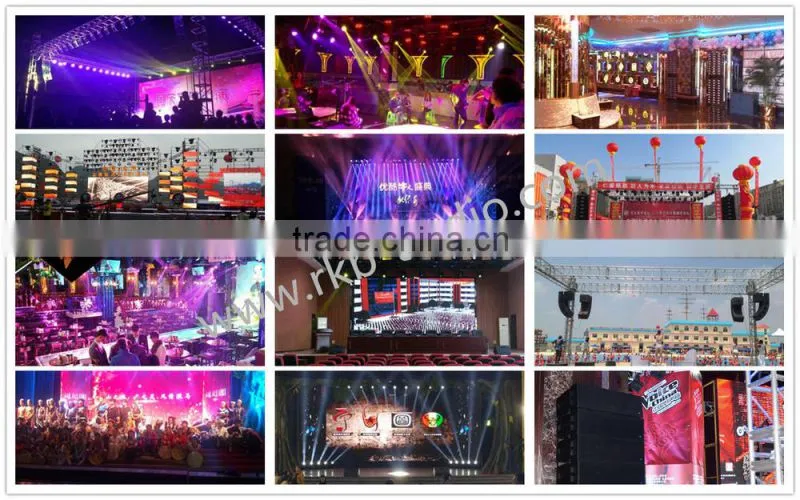

*Mostly applied in indoor and outdoor live shows, conference hall, small auditorium
SPECIFICATIONS:
Components: HF:1x3”(Neo);LF:2x10”(Neo);
Frequency Response: 60Hz -20kHz(±3dB)
Sensitivity(1W/1M): 101 dB
Maximum Peak SPL: 139dB
Rated Power(RMS): 800W
Peak Power(PEAK): 1600W
Impedance(Ohm): 8 Ohm
Crossover: 1.2 KHz
Dispersion Angle (-6dB): 75H x 0-15V
Connectors:2xNL4 Speakon
Enclosure Material: High-strength Plywood
Cabinet Finish: Germany Water Paint
Dimensions (W*D*H): 580*410*310 mm
Net. W.: 22 kg
