1 Function
It applies to digital signal transmission of image and date in cable tv and telcommunication industry field.
2 Description
1.This series product have both optical input interface and RF input interface, 1310nm transmit by inputing 1 optical input or 2 main electric port. It has perfect network management function - not only general 1310nm optical transmitter function, but also optical relay station function, optical input device and RF input device function.
2.This standard series of optical transmitter adopt original inported DFB laser with excellent high linearity, optical isolation, thermoelectric cooler.
3.Dual RF input port make the analog singal iuput and digital singal input come true, and also realize local inter cut.
4.RJ45 network management interface, 19'' 1U standard frame.
3 Main technical parameter
Items |
Unit |
Technical Parameter |
||||||||
Output Optical Power |
mW |
4-5 |
6-7 |
8-9 |
10-11 |
12-13 |
14-15 |
16-17 |
18-19 |
20-21 |
Optical Link Loss |
dB |
7 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
Optical Output Wave Length |
nm |
1310± 20 |
||||||||
Optical Connection Type |
|
FC/APC or SC/APC |
||||||||
Frequency Range |
MHz |
47-862 /1000 |
||||||||
Channels |
way |
84 |
||||||||
Link C/N |
dB |
≥52 |
||||||||
Link C/CTB |
dB |
≥65 |
||||||||
Link C/CSO |
dB |
≥61 |
||||||||
Output optical return loss |
dB |
>45 |
||||||||
Input level |
dBμV |
75-85(main input port inputs RF signal) |
||||||||
Input level |
dBμV |
85-95( auxiliary input interface inputs RF signal) 75-85(auxiliary input interface inputs numeral signal) |
||||||||
RF Flatness In Band |
dB |
±0.5 |
||||||||
RF Input Return Loss |
dB |
≥16 |
||||||||
Voltage |
V |
AC110-265(50Hz) |
||||||||
Power Loss |
W |
24 |
||||||||
Operating Temperature |
°C |
0-45 |
||||||||
Dimension |
mm |
483× 355 ×44(19” × 14” ×1.75”) |
||||||||

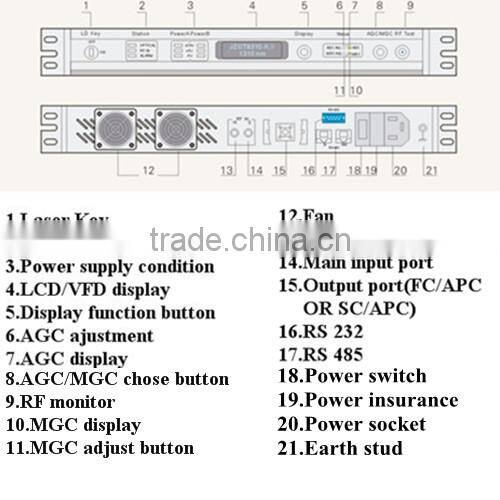

4 Front pannel and back pannel

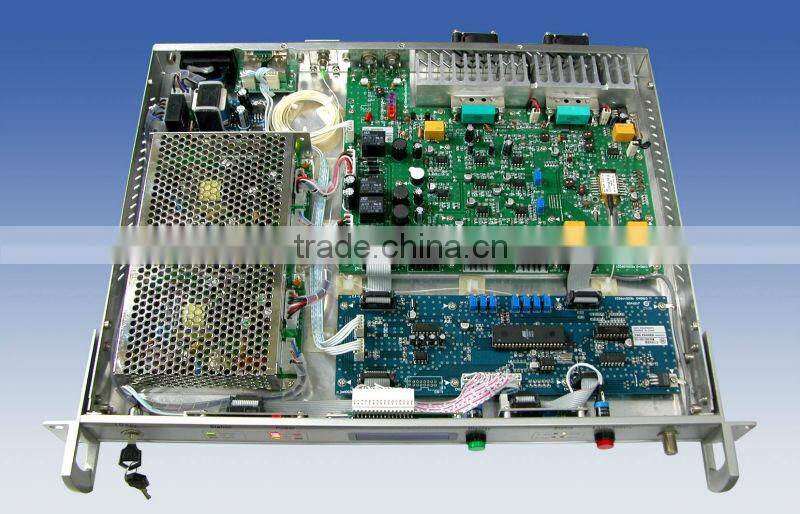

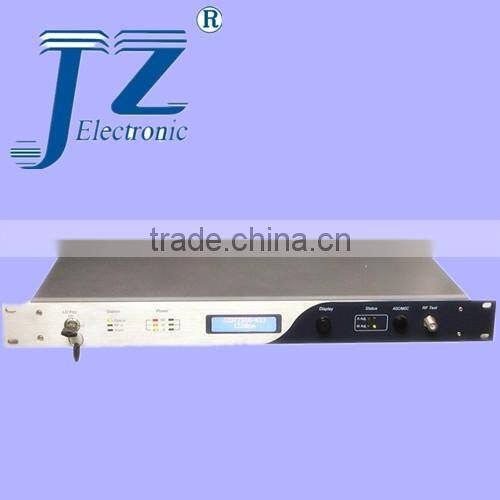

Products Photos:
Our factory' advantage:
1. We are "The Best Cooperation Partner" awarded by NXP Company; "Golden Customer" by American ORTEL Company.
2. We have imported top-level NXT, Samsung, Omron automaticly flow production line and imported detecting equipments such as Agilent,Tektronix,EXFO, etc.
3. We have exported products from 2004,our international market extends all over the word
Our services:
1.Your inquiry related to our products or prices will be replied within 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM, any your customized requirements we can try to help you realize.
4.Protection of your sales area ,ideas of design and all your private information.
5. 1 years warranty.
