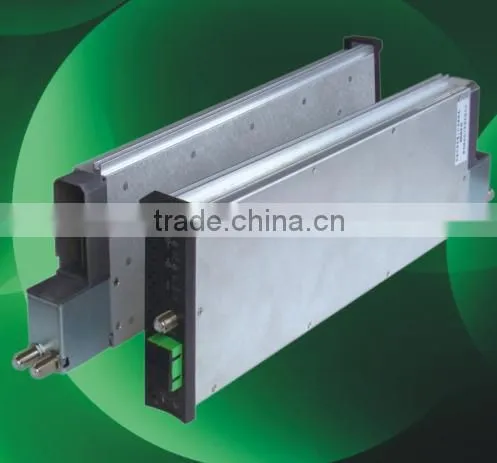

FTX Optical Module For Optical Platform
Functional characteristics:
1) It adopts original imported DFB laser with high-linearity, optical isolution and thermoelectric cooler.
2) This transmitter module has four models of artificial AGC, artificial MGC, pre-configured AGC and pre-configured MGC. Manually control reange is -6~+4dB
3) It is controled by front panel of module or CMM unit or network management system.
4) It has dual input port which quarantee high-isolation specification.
5) The laser has ATC and APC function, which guarantees the module has pre-distortion function.
6) Aluminum casing improves machine’s reliability.
Technical parameters:
Item |
Unit |
Functional Parameter |
Optical Wavelength |
nm |
1310 + 20 |
Frenquency range |
MHz |
47~862/1000 |
Output optical power |
mw |
2~24 |
Nominal input RF level |
dBμV |
75±5 |
Flatness in Band |
dB |
+ O.75 |
RF Input Reflection Consumption |
dB |
≥16 |
RF Input resistance |
75 |
|
RF Input Reflection Consumption |
dB |
≥45 |
C/CTB |
dB |
≥67 |
C/CSO |
dB |
≥62 |
C/N |
dB |
≥52 |
Power loss |
w |
Less than 15 |
Isolation of AB port |
|
≥45/≥30 |
Size |
mm |
31 * 129.5 * 420 |
Our factory' advantage:
1. We have imported top-level NXT, Samsung, Omron automaticly flow production line and imported detecting equipments such as Agilent,Tektronix,EXFO, etc.
2. We have exported products from 2004,our international market extends all over the word.
Payment and Delivery
30% deposit should be paid by T/T and balance 70% paid before delivery.
Delivered by air sea or wail.
Our services:
1.Your inquiry related to our products or prices will be replied within 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM, any your customized requirements we can try to help you realize.
4.Protection of your sales area ,ideas of design and all your private information.
5. 1 years warranty.
