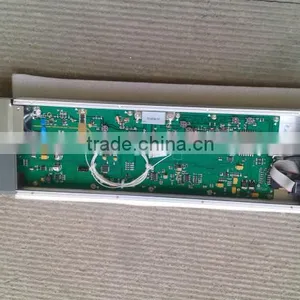

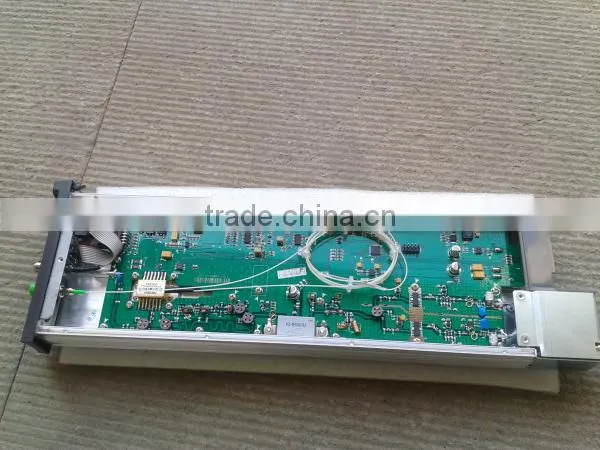

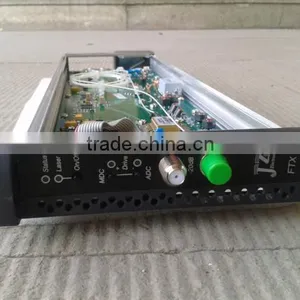

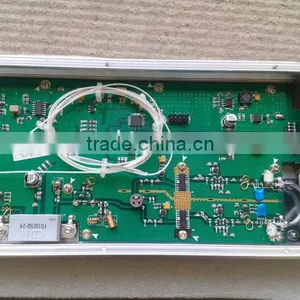

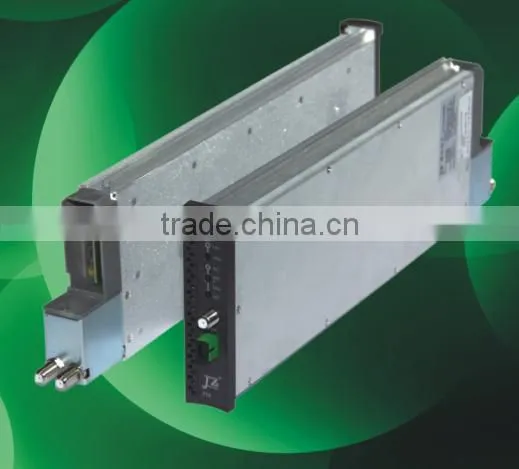

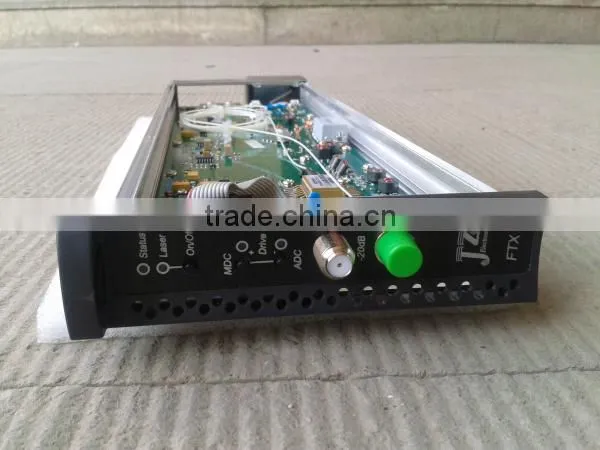

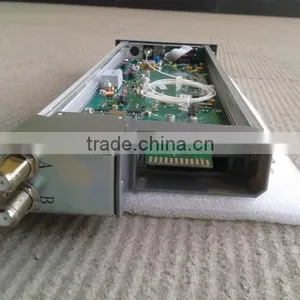

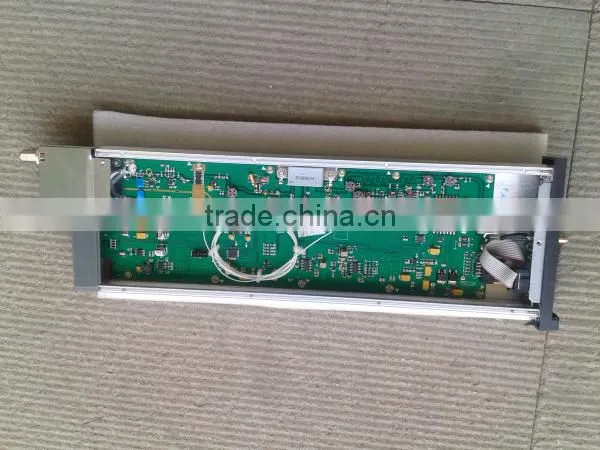

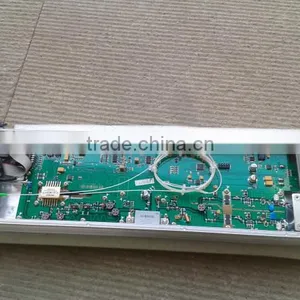

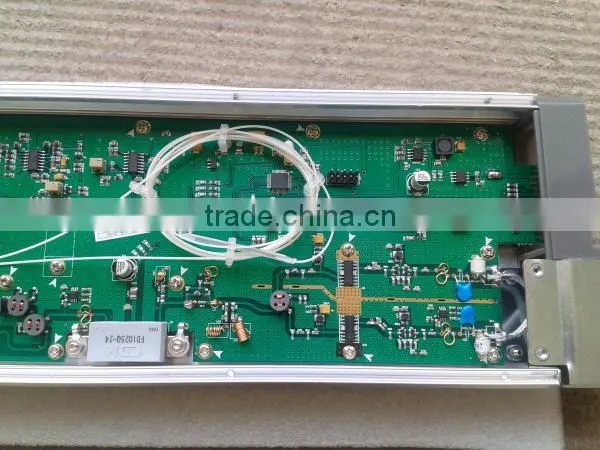

CATV FTX Optical Transmitter PCB Module
Usage:
It is applied for broadband CATV signal transmission system.
Functional characteristics:
1) It adopts original imported DFB laser with high-linearity, optical isolution and thermoelectric cooler.
2) This transmitter module has four models of artificial AGC, artificial MGC, pre-configured AGC and pre-configured MGC. Manually control reange is -6~+4dB
3) It is controled by front panel of module or CMM unit or network management system.

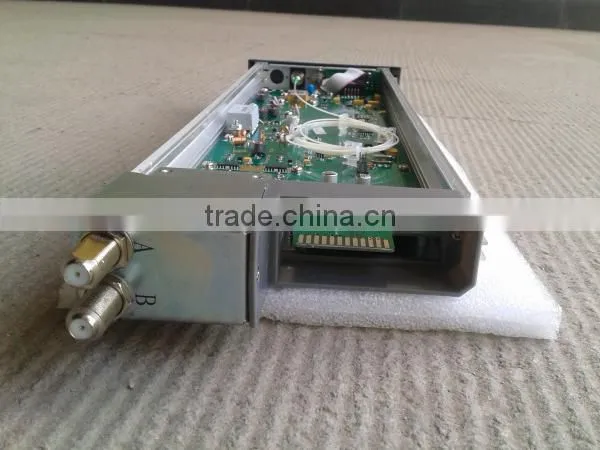

4) It has dual input port which quarantee high-isolation specification.
5) The laser has ATC and APC function, which guarantees the module has pre-distortion function.
6) Aluminum casing improves machine’s reliability.
Main technical parameter:
Item |
Unit |
Functional Parameter |
Optical Wavelength |
nm |
1310 + 20 |
Frenquency range |
MHz |
47~862/1000 |
Output optical power |
mw |
2~24 |
Nominal input RF level |
dBμV |
75±5 |
Flatness in Band |
dB |
+ O.75 |
RF Input Reflection Consumption |
dB |
≥16 |
RF Input resistance |
75 |
|
RF Input Reflection Consumption |
dB |
≥45 |
C/CTB |
dB |
≥67 |
C/CSO |
dB |
≥62 |
C/N |
dB |
≥52 |
Power loss |
w |
Less than 15 |
Isolation of AB port |
|
≥45/≥30 |
Size |
mm |
31 * 129.5 * 420 |
Our factory:
Our service:
1.Your inquiry related to our products or prices will be replied within 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM, any your customized requirements we can try to help you realize.
4.Protection of your sales area ,ideas of design and all your private information.
5. 1 years warranty.
