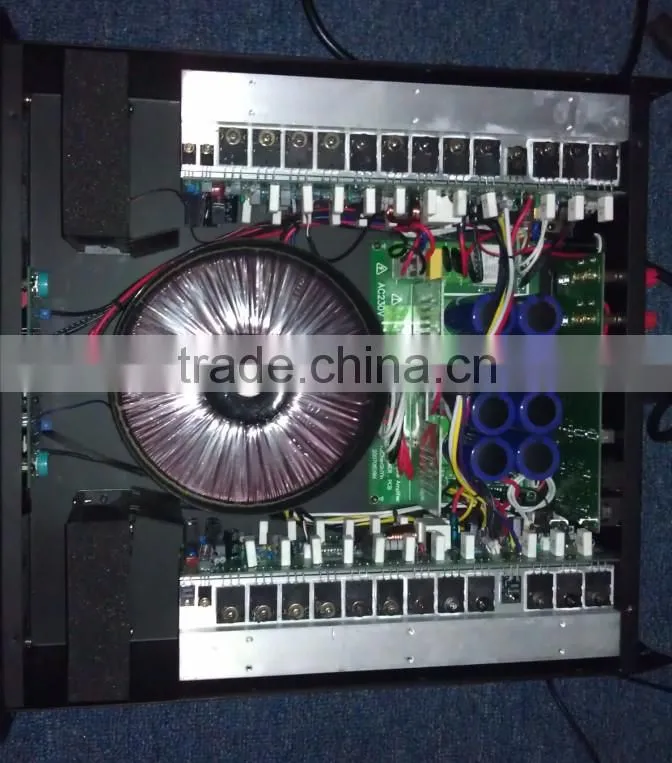

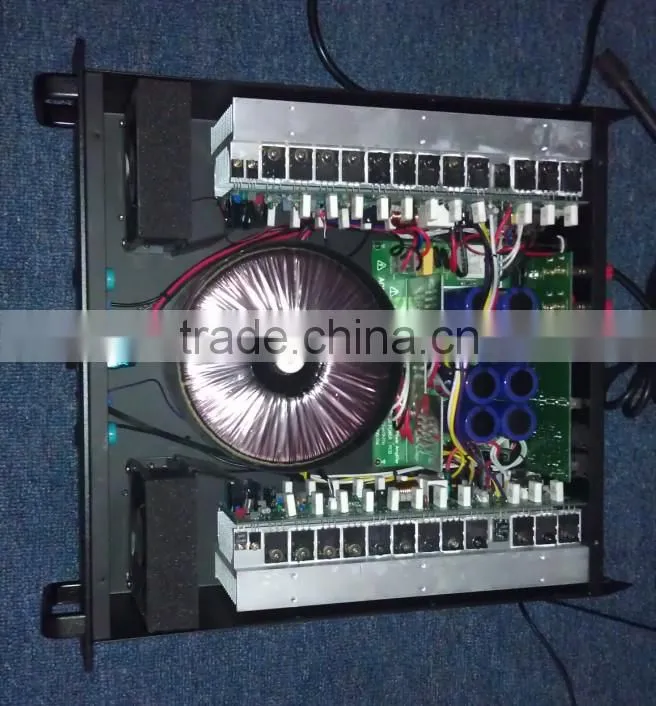

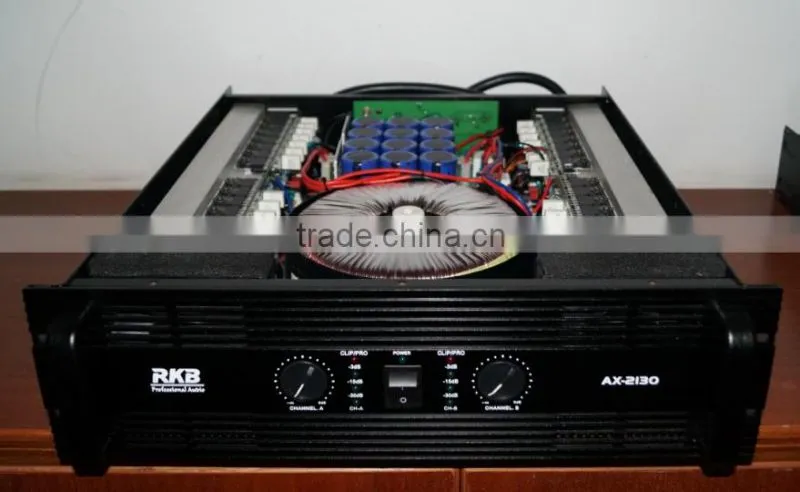

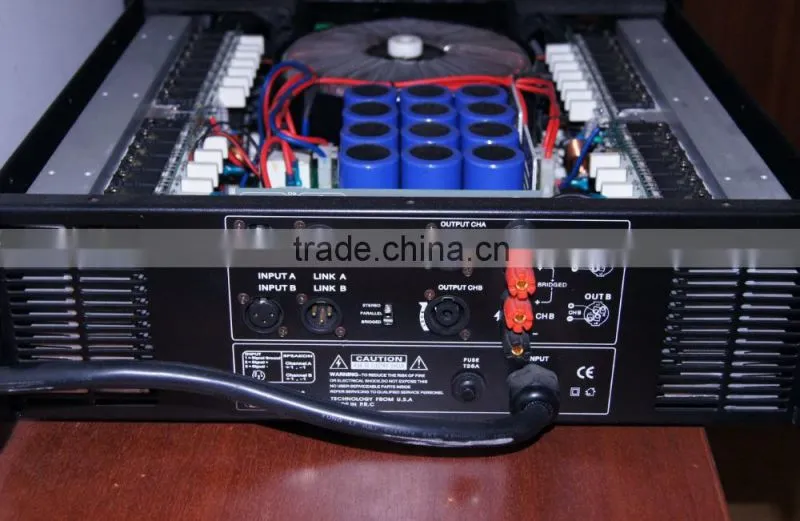

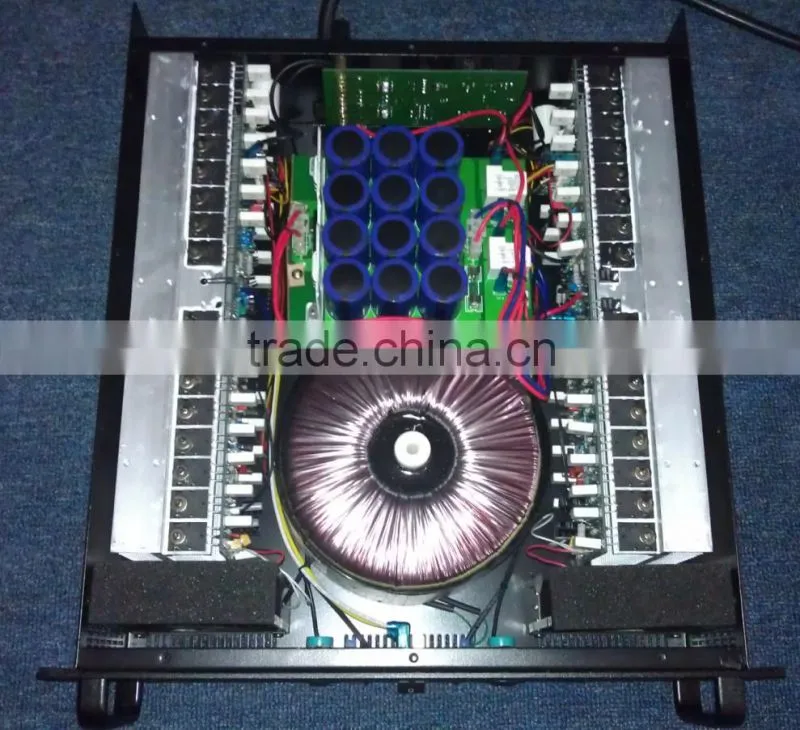

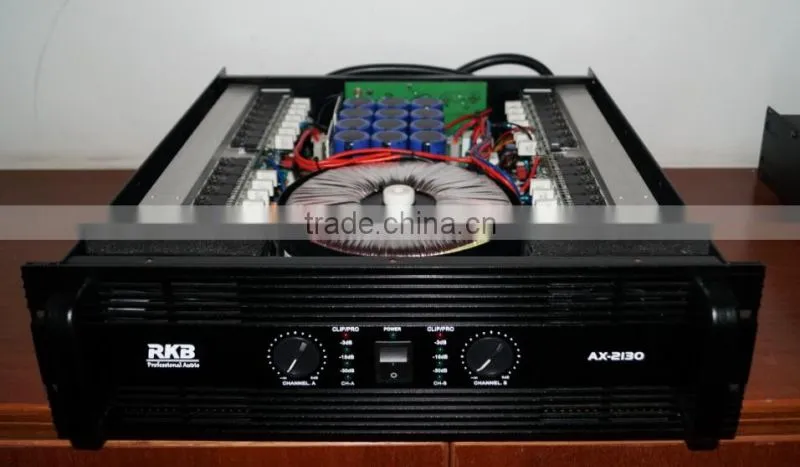

AX-230/300W Two Channels Professional Power Amplifier

US$ 1 - 1,000 MOQ: 1 Piece

Key Specifications

Place of Origin:

Guangdong, China

Brand Name:

RKB

Model Number:

AX-230

Guangzhou Hongxiang Audio Equipment Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Guangzhou

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Guangdong, China

Brand Name RKB

Model Number AX-230

We also supply:Pro audio speaker,live sound speaker,line array speaker,full range speaker,subwoofer,loudspeaker,

KTV speaker ,OEM/ODM, 300W Two channel Professional Power amplifier-AX-230, high power amplifier, Pro audio system

AX series professional audio power amplifiers are with high performance and high efficiency. Its excellent audio resolution

and extraordinary stability is highly recognized by all users. It adopts high integrated circuit parallel design, greatly reduces

the failure rate. The advanced cooling system and low noise design, enables it to protect the power amplifier from overloading

and overvoltage; ensures the speaker equipment working stable and safely under difficult circumstance.

Applications:

*Gymnasium, Large Performance, Disco

*Pub, Nightclub, Club, KTV room etc.

Features:

*With switch buffer protection of overheating, clipping, overcurrent, overload, short circuit.

*Separation of grounding switch

*Working mode conversion ( stereo, mono bridged and connected )

*Input sensitivity selection

*The 30Hz high-pass filter

*Protecting status indication ( overheating / clipping / overcurrent / overload / short circuit )

*With soft clipping process, ensure quality of sound.

*Excellent sound quality and strong power output

*Adopting high integrated parallel circuit design, greatly reduces the breakdown rate

*Advanced cooling system and low noise design

*Professional input and output terminals

Model	AX-230
8Ω Stereo Power	300W x2
4Ω Stereo Power	450W x2
2Ω Stereo Power	/
8Ω Bridged Power	700W
4Ω Bridged Power	/
Damping factor	>400
Slew rate	60v / us
S/N Ratio	>103dB
Total Harmonic Distortion(THD)	<0.01%
Intermodulation	<0.01%
Frequency Response	20Hz-20kHz,±0.1dB
Input Sensitivity	0.775v /1.0v / 1.55v
Input Impedance	20kΩ Balanced,11kΩ Unbalanced
Input connectors	XLR Plugs
Stereo/Mono	Stereo, mono bridged and connected
Protection	Overheating, clipping, overcurrent, overload, short circuit.
Power Supply	AC 220v/50~60Hz
Dimensions(W×D×H)	483x418x88 mm/2U
Net W.	16kg
