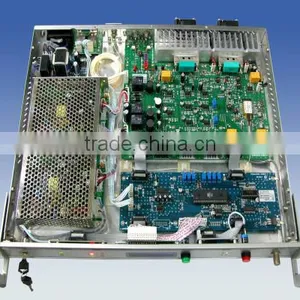

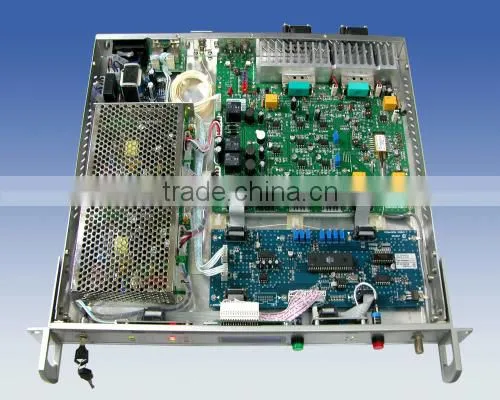

1310 Optical Transmitter / 1550nm Made In China

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

Model Number:

JZOT83**-KII

Shaanxi Jizhong Electronics Scien-Tech Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Ningbo/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name JZ

Model Number JZOT83**-KII

1310nm optical transmitter with Imported DFB laser ( XESTON/AOI/ORTEL/chinese high quailty DFB laser)

wavelength: 1310nm+/-20

output power is 2~31mw, transmission range is within 45km

Frequency/bandwidth: 47~86/1000mhz

CTB>=65db

CSO>=61db

1550nm optical transmitter with LiNbO3 Extrnal Modulator

Wavelength: 1550+/- 5nm (ITU-T)

SBS: 13~18 continously adjustable

output power is 2 x 7dbm and 2 x 9dbm

long distance fiber optical signal transmission

CTB>=65db

cso>=65db

input level: 75~85dbuv

Function characteristics:

1. Adopting original inported DFB laser(ORTEL, XESTON, AOI,ETC.) with excellent high linearity, optical isolation, thermoelectric cooler.

2. There are two RF input interface to input signal: meeting the simulation, figures input separately and local input requirement.

3. RS-232 computer interface and two RS 485 industrial standard interface are available for managing

and monitoring local and long distance network.

4. Adopting 1U19” standard dimensions.

5. Excellent switch power to suit for voltage in AC110-260V.

6.4 function modules: RF processing unit, laser DBF, control and warning protection circuit and power module.

Main technical parameter:

Items	Unit	Technical Parameter
Output Optical Power	mW	4~31
Optical Output Wave Length	nm	1310± 20
Optical Connection Type		FC/APC or SC/APC
Frequency Range	MHz	47-862/1000
Link C/N	dB	≥52
Link C/CTB	dB	≥65
Link C/CSO	dB	≥61
Output optical return loss	dB	>45
Input level	dBμV	75±5(main input port inputs RF signal)
Input level	dBμV	-10(auxiliary input interface inputs RF signal)
RF Flatness In Band	dB	±0.75
RF Input Return Loss	dB	≥16
Voltage	V	AC110-265(50Hz)
Power Loss	W	≤24
Operating Temperature	°C	0-45
Dimension	mm	483× 355 ×44(19” × 14” ×1.75”)
