FTX Optical Transmission Module Using Ortel Laser
USD $300 - $490
/ Set
1 Set(Min.Order)
- 6000 Set / Sets per Month
- Shenzhen/Shanghai/Tianjing/Nanjing
- T/T Credit Card PayPal
You May Like
- ZTE 5928E, RS-5928E, RS-59EC-PWR-AC10, RS-59EC-PWR-DC10, 24 GE RJ45 + 1 expansion card ZTE ZXR10 5928E 5952E 5916E RS-5916E RS-
- ZTE 2952E, RS-2952E-AC, RS-2952E-DC, 48 FE RJ45 4 GE SFP ZTE ZXR10 2952E 2928E 2918E 2910E
- ZTE 3950-28TM, RS-3950-28TM-AC, 24 FE RJ45 + 2 GE SFP + 1 expansion card slot ZTE ZXR10 3950
- ZTE 2950-18TC, RS-2950-18TC-AC, 16 FE RJ45 + 2 GE Combo ZTE ZXR10 2950
- ZTE S2XF48A, 48-port 10GE SFP+ optical interface ZTE ZXR10 8902E 8905E 8908E 8912E RS-8902E RS-8905E RS-8908E RS-8912E
- ZTE 5250-28PM-H, RS-5250-28PM-H, 20 GE RJ45 (POE/POE+) + 4 GE Combo ports + 1 expansion card ZTE ZXR10 5250
Product Details
Place of Origin: | Shaanxi, China | Brand Name: | Jizhong | Model Number: | FTX--SC |
Product Description

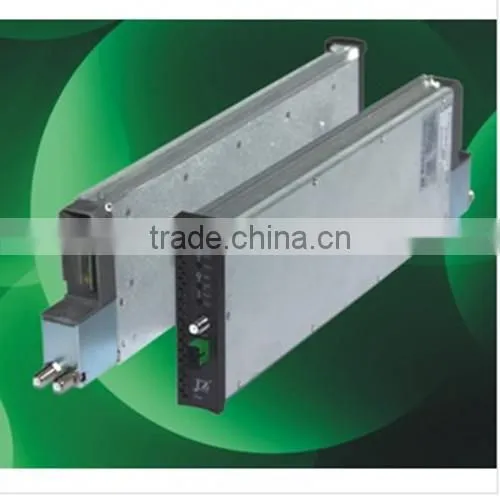

FTX Optical Transmission Module Using Ortel Laser
General information
·Selects the imported high quality high linear, light isolation, The thermoelectric refrigeration , Distributed feedback (DFB) laser
· With artificial AGC, artificial MGC. Preliminary intelligence AGC four patterns, artificial control - 6 ~ + 4 db
· The front panel control module, the CMM unit control or network management software control
· Double input port, can be selected high isolation specification
· Laser ATC and APC function, gather predistortion function
· Aluminum chassis as a whole and duct design greatly improve the machine reliability
Technical parameter:
Frequency range: 47~862/1000MHz
optical wavelength: 1310±20nm
Output optical power: 2~24mW(optional)
Nominal input RF: 75±5 dBμV
In-band flatness: ±0.75 dB
RF input reflection loss : ≥16dB
Input impedance:75Ω
Output optical reflection loss:≥45dB
Link C/N :≥52dB
Link C/CTB:≥67dB
Link C/CSO:≥62dB
Power consumption:<15 W
Appearance Size(Width x Height x Deepness): 31x129.5x420mm
AB port isolation: ≥45,≥30,optional
