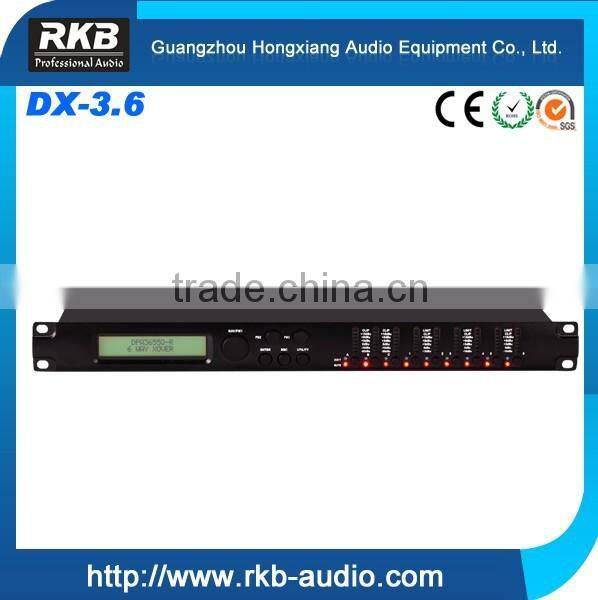

Model: DX-3.6 audio processor sound system
RKB PROCESSOR - DX-3.6
Function of: Equalizer/Crossover/Limiter
This is a 3 input + 6 output Speaker Processor. The 3 input levels are displayed byrows of 6 level leds + 1 clip led, The 6 output levels
are displayed by rows of 5 level leds +1 clip led + 1 Limiter led. The unit has 3 analog inputs, a stereo digital input, and 6 analogoutputs.
Each input has 5 parametric filters and each output has 7 parametric filters. Both input and output filters can be selected to be Bell or
Shelving filters. On the outputs a Hp and a Lp filters up to 24dB/Oct. Output Limiter is working on the RMS value of the limiter's input.
The Limiter's THR can range up to -30dBu. Each input and output channels have delays up to 850ms, with steps of 22usec.Linking
functions between inputs and linking functions between outputs are available. A function is allowing to have ramps closing the output
level on parameter changes, when the unit is used as installation unit; this functioncan be excluded when the unit is used live
and it is necessary to perform small changes to the set parameter...on the fly. The Pc SW for the remote control is
allowing to connect in net up to 32 units.
Specifications of DX-3.6 audio processor sound system
Inputs: XLR balanced
Outputs: XLR balanced, TCPIP connection
Minimum Load: 150ohm
User memories: 24
Recall memories: 24
VU metering: 7 led for Inputs [-20dBu up to +15dBu; Clip]
7 led for Outputs [-20dBu up to +15dBu; Clip; Limit]
Output Leds can be used for displaying the Output
level OR the Limiter activity
THD+N: 0.001% at 1kHz 0dBu
S/N: >110dB
Frequency Response: 20Hz – 20kHz ; -0.5dBu at 20Hz and 20kHz
A/D and D/A Resolution: 24bits
Process Resolution: 24x32 bit for filtering process; 96 bits resolution on
intermediate computation results
Display: Graphic 2x20 characters
Size: 19"X(1U)
Process: up to 24dBu/Oct HP/LP, +-15dB gain Bell and
Shelving filters, RMS compressor/limiter
[Attack time from 5ms up to 200ms (1ms resolution up
to 20ms, then 10ms resolution up to 100ms and 20ms
resolution up to 200ms), Release time from 0.1 sec up
to 3 sec (0.1sec resolution)], delay on Inputs and
Outputs up to 848.998ms with 21us increment steps.
Limiters Threshold: from 20dBu up to -10dBu
Attack time: Attack time from 5ms up to 200ms (1ms resolution up
to 20ms, then 10ms resolution up to 100ms and 20ms resolution up to 200ms)
Release time: Release time from 0.1 sec up to 3 sec (0.1sec resolution)
High pass and Low Pass Filters
Frequency(HPF): from 1st order (Butterworth -6dB/Oct) up to 4th Order
(Butterworth, Linkwitz or Bessel -24dB/Oct)
Frequency(LPF): from 1st order (Butterworth -6dB/Oct) up to 4th Order
(Butterworth, Linkwitz or Bessel -24dB/Oct)
Filter's setting step: 1/24th of octave
Delay & Gain
Maximum Delay: 848.998ms by 21us increment/decrement step, oneach Input and Output channel
Spdif input gain(Digital): 0dBu on RCA connector
Parametric Equalization: 5 filters on each input assignable as Bell or Shelving
7 filters on each output assignable as Bell or Shelving
Filters: symmetrical Bell or High/Low Shelving up to second order
Filter gain: or Bell and Shelving the gain is ranging from -15dBu upto +15dBu by 0.5dBu resolution steps
Centre frequency: selectable with a 1/24th of octave resolution steps from20Hz up to 20kHz
Filter Q/BW: Q from 0.05 up to 3 by 0.05 resolution steps
