Specifications
1. Factory direct price2. Imported optical receiving module
3. RF in
4. OEM & ODM

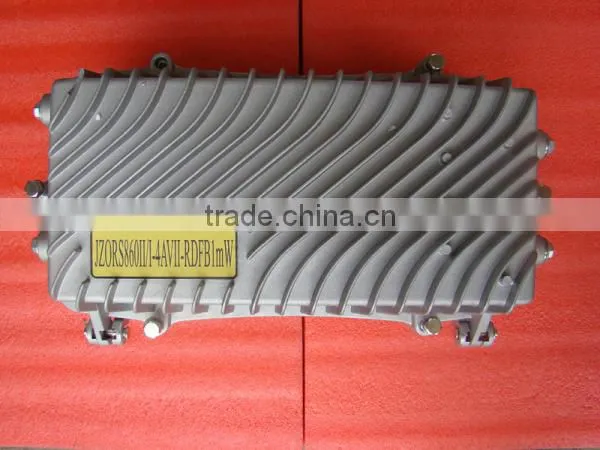

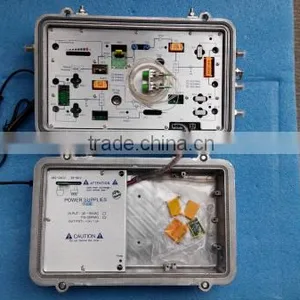

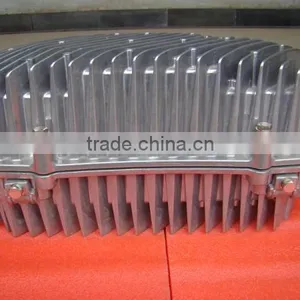

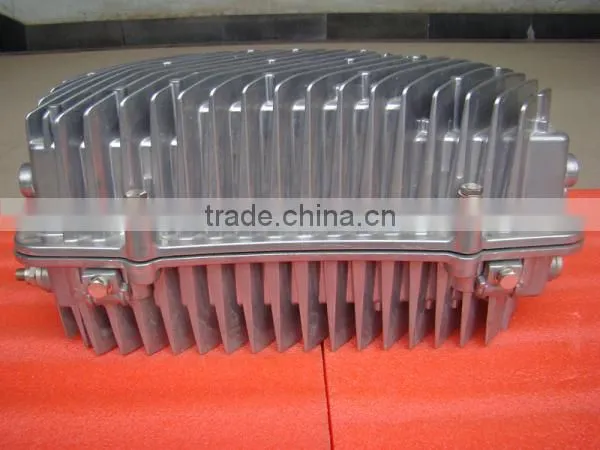

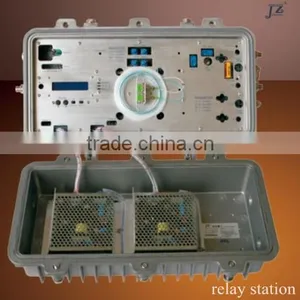

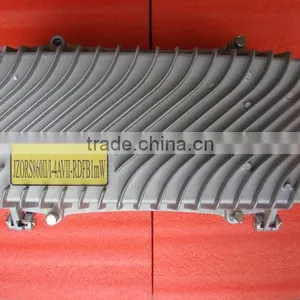

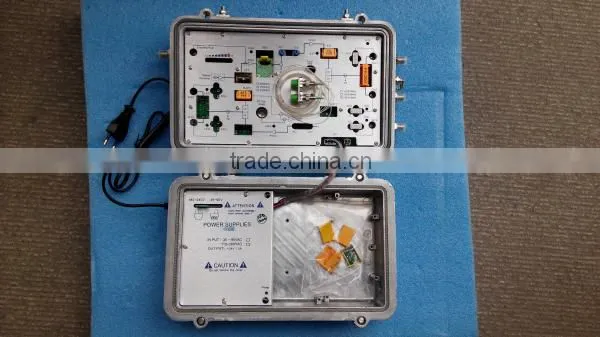

Optical Relay Station In The Fiber Transmission System
Main application:
- Extending fiber transmission distance of analog or digital signal.
- Applied for 1550nm/1310nm fiber transmission system.
Product advantages:
- Adopting PHILIPS special optical receiving module with low noise and low distortion receiving,
Built-in six-sectioned input optical power indicator precisely display input optical power
In relay transmitter part, it adopts the original import DFB laser (ORTEL, AOL, XESTON).
Seting up the separated RF input interface, which has the local input function and also can be used as Outdoor Optical Transmitter.
Specs:
Receiving part specs |
Unit |
JZOR860R II |
Frequency Range |
MHz |
47~750/860 |
Optical Input Power |
dBm |
-4 ~ +2 |
Optical Receiving Wavelength |
nm |
1290~1660 |
Equivalent Noise Current |
PA Hz |
8 |
RF Output level |
dBμV |
108 |
Flatness in band of RF |
dB |
+ 0.5 |
RF Reflection Loss |
dB |
≥ 16 |
Channel Loading Data |
|
84 PAL-D |
C/N |
dB |
>51 |
C/CSO |
dB |
>61 |
C/CTB |
dB |
>65 |
Transmitting part specs |
Unit |
OTDFB--mW |
Optical Receiving Wavelength |
nm |
1310 + 20 |
RF Input level |
dBmV |
15 ~ 25 |
RF Input level |
dBmV |
25 ~35 |
C/CTB |
dB |
>65 |
C/CSO |
dB |
>61 |
C/N |
dB |
>51 |
Optical Connector Type |
FC/APC or SC/APC |
|
Power Voltage |
|
60VAC or 220VAC (Optional) |
|
RF input level is for independent outside optical transmitter RF input level is for local input port | ||
|
Transmitting Optical Power |
mw |
4~5 |
6~7 |
8~9 |
10~11 |
12~13 |
14~15 |
16~17 |
18~19 |
20~21 |
|
Transmission Optical Link |
dB |
7 |
9 |
10 |
11 |
12 |
13 |
14 |
15 |
16 |
Necessary order information:
- RF bandwidth: 750mhz / 860mhz/1000mhz
- DFB laser: Ortel / xeston / AOI / etc.
- Output power: 4~30mw
- Number of power supply: 1 or 2

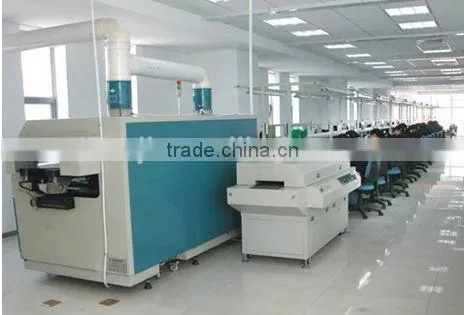

Our factory:
Our service:
1.Your inquiry related to our products or prices will be replied within 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM, any your customized requirements we can try to help you realize.
4.Protection of your sales area ,ideas of design and all your private information.
5. 1 years warranty.
