Fiber Optic Video Transmitter Receiver

Shaanxi Jizhong Electronics Scien-Tech Co., Ltd.

Negotiable MOQ: 1 Set (Price negotiable depending on order volume and customization)

Key Specifications

Place of Origin:

Shaanxi, China

Brand Name:

Model Number:

JZOR1000RI-2CSIV

Payment & Shipping

Payment Methods:

Port of Shipment:

Shanghai/Shenzhen/Beijing/Tianjin

Delivery Detail:

Delivery time depends on order quantity.

Place of Origin Shaanxi, China

Brand Name JZ

Model Number JZOR1000RI-2CSIV

fiber optic video transmitter receiver

Product Function:

2 way optical input, which guarantees reliablity of the network.
Eoc Is optional.
We are manufacture, offering lowest price and guarantees excellent quality.
5~1000MHz optimized circuit design, User can customize their desired bandwidth.
Digitally display input optical power.
High sensitivity PIN photoelectric conversion. High working reliablity.
Advanced optical AGC control, Input optical power (7~+2dBm). When input optical power has a change, no change for output level.
Excellent C/N ( ≥ 51db), C/CSO ( ≥ 60db), C/CTB index ( ≥ 65db).
High output level 104dBuV.
60V independent feeding port, 15A over-current ability, all feeding port have over-current indicate.
Multi-protect of power supply and effective lighting avoid treasure, make equipment safety and reliable.
New aluminum die casing, baking or passivation surface, can work in severe outdoor for a long time.

Main technical parameter:

Item	Unit	Specification	Note
forward working bandwidth	MHz	47/87 ~ 862	optional
Input optical power	dBm	-6~+2
optical working wavelength	nm	1200 ~ 1600	dual windows
optical reflection loss	dB	>50
equivalent input noise current	PA √ Hz	≤ 8
RF flatness in band	dB	±0.75
output reflection loss	dB	≥16(47~550MHz) / ≥14(550~862MHz)
Link C/N	dB	≥ 51
Link C/CSO	dB	≥ 60
Link C/CTB	dB	≥ 65
classic output level	dBμV	104	AGC controling range: -6~+2dBm
LF frenquency	MHz	5 ~ 65 or 5 ~ 42	optional
Power loss	W	≤15
Dimention	mm	290 x 205 x 120

Ordering information:

frenquency/ bandwidth : 47~862mhz or 47~1000mhz optional
Output port: 2 port or 4 port optional
Module/Ic used: NXP or NEC or Chinese Ic optional or other
Return transmitter wavelength request: 1310nm or 1530nm or 1550nm or 1570nm or other optional
Return transmitter output power: 0.5~4mw optional
power supply request
Other features that customer's request

Export area: America, Brazil, Thailand, India, Bangladesh, Pakistan, Nepal, European contries, and Russia, etc..

Delivery: Within 15 workdays after 30%tt payment.

By air or by sea or by any international express.

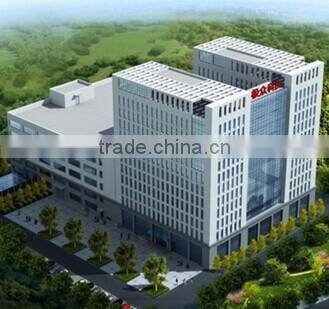

Our factory shows:

JZ is a leading manufacturer of fiber optic equipment in China.

Our service:

1.Your inquiry related to our products or prices will be replied within 24hours.

2.Well-trained and experienced staffs to answer all your enquires in fluent English.

3.OEM & ODM, any your customized requirements we can try to help you realize.

4.Protection of your sales area ,ideas of design and all your private information.

5. 2 years warranty.
