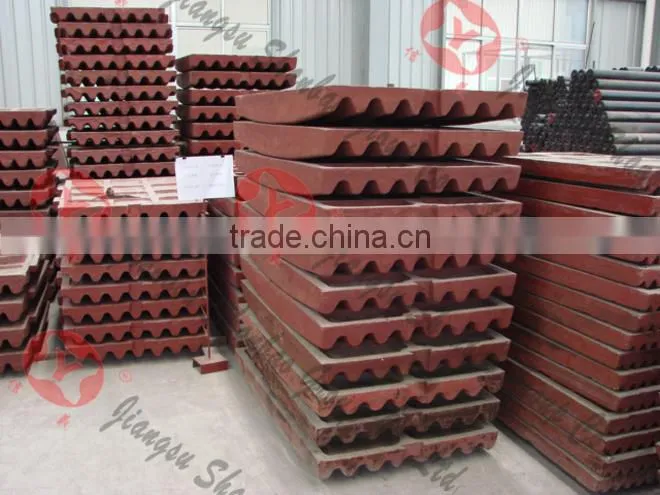

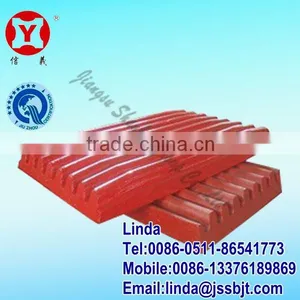

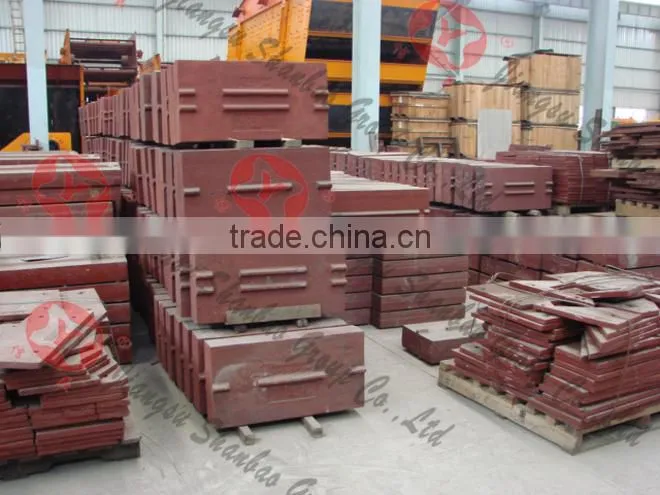

Jaw crusher plate
Fixed jaw and moving jaw crusher broken parts,Both materials are of high manganese steel ZGMn13.
Fixed jaw plate through the press block of iron or trapezoidal bolt with side guard plate fixed on the wall in front of the shell.

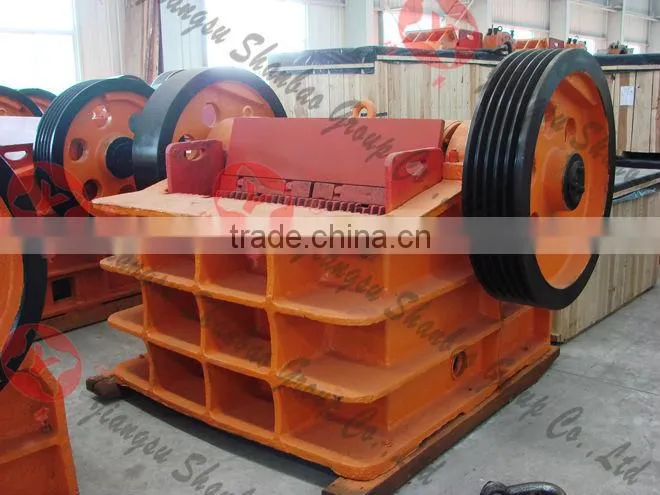

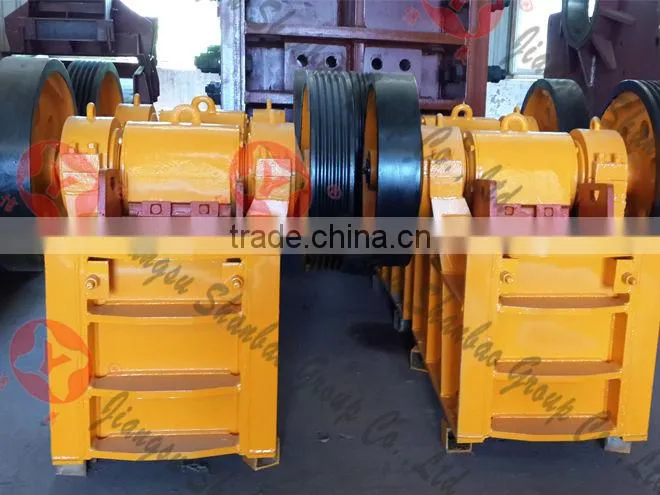

Jaw crusher
1. Main use
The jaw crusher manufactured by the company represents the most leading crushing technology and manufacturing standard in the fields of primary crushing II crushing among the same industry in China.
PE jaw crusher parts are manufactured with high manganese steel anti-wear materials, light weight, high intensity and rigidity. This crusher greatly reduces the equipment running cost, and also has big feeding granularity with homogeneous granules. It represents the most advanced technology in the field of primary crushing in China.
PEX jaw crusher can satisfy all the demands of customers among the industries of mine, metallurgy, building material, water conservancy and chemical, with its low rotation speed, high stability, large production and low equipment running cost. PEX jaw crusher is taking an unshakable leading role in the field of II crushing in China.
2. Advantages
a. Most classic design, excellent manufacturing technology and materials, highly durable
b. Perfect cavity design
c. Convenient and flexible to adjust the discharging outlet
d. Various jaw plates
e. Most durable bearings
f. High-quality forging steel movable jaw assembly
The processing capabilities listed in the form shall vary according to different working conditions.
3. Main technical data
| Model | Feeding Opening (mm) | Max. Feeding Size(mm) | C.S.S (mm) | Capacity (t/h) | Electric motor power(kw) | Weight(t) (excluding electric motor) |
| PE-150×250 | 150×250 | 130 | 10-40 | 0.96-4.8 | 5.5 | 0.8 |
| PE-250×400 | 250×400 | 210 | 20-80 | 5-20 | 15 | 2.8 |
| PE-400×600 | 400×600 | 340 | 40-100 | 16-64 | 30 | 6.5 |
| PE-500×750 | 500×750 | 425 | 50-100 | 45.6-100 | 55 | 10.3 |
| PE-600×900 | 600×900 | 500 | 65-160 | 48-120 | 55/75 | 15.5 |
| PE-750×1060 | 750×1060 | 630 | 80-140 | 51-208 | 110 | 27.8 |
| PE-800×1060 | 800×1060 | 650 | 100-200 | 136-228.8 | 110 | 30.1 |
| PE-870×1060 | 870×1060 | 670 | 200-260 | 288-384 | 110 | 30.5 |
| PE-900×1200 | 900×1200 | 750 | 100-200 | 144-304 | 132 | 45 |
| PE-1000×1200 | 1000×1200 | 850 | 195-265 | 315-500 | 132 | 48 |
| PE-1200×1500 | 1200×1500 | 1020 | 150-350 | 500-1000 | 220 | 88 |
| PE-1500×1800 | 1500×1800 | 1200 | 220-350 | 600-1200 | 355 | 122 |
| PEX-150×750 | 150×750 | 120 | 18-48 | 8-25.6 | 15 | 3.5 |
| PEX-250×750 | 250×750 | 210 | 25-60 | 12.8-35.2 | 22 | 5.1 |
| PEX-250×1000 | 250×1000 | 210 | 25-60 | 16-51.2 | 37/30 | 6.5 |
| PEX-250×1200 | 250×1200 | 210 | 25-60 | 20-60 | 37 | 7.7 |
| PEX-300×1300 | 300×1300 | 250 | 20-90 | 10-104 | 75 | 11 |
