Product advantages:
- 3-slot modulated structure: pump module; power module; network management module.
- original 980nm /1480nm pump laser (JDSU, Bookham, FITEL)
- Typical light path and modular design
- high output power and good noise figure
- stable optical output power
- longer working life of laser
- 2~4 way spliter and support 1~4 output port
- Swappable web managing module has advanced network managing function.
Main technical parameter:
Item |
Unit |
Functional Parameter |
Optical Wavelength |
nm |
1530 ~1560 |
Output Optical Power |
dBm |
13~24 |
Input Optical Power |
dBm |
-3~10 |
Optical Connection Type |
FC/APC, SC/APC |
|
Optical Reflection Consumption |
dB |
≥60 |
Noise Figure |
dB |
≤5.0 (output optical power <20dbm) |
dB |
≤5.5(output optical power >20dbm) |
|
Power Voltage |
V |
220VAC or 48VDC |
Dimension |
mm |
(19″×15″×1.75″) 483×385×44 |
Operating Temperature |
℃ |
0~ +50 |
Storage Temperature |
℃ |
-20 ~ +65 |
Input optical power:-3 ~ +10dbm
Input Optical Power |
dBm |
7 |
6 |
5 |
4 |
3 |
2 |
1 |
0 |
Optical Link Carrier Of Noise Ratio |
dB |
52.5 |
52.4 |
51.9 |
51.6 |
51.2 |
50.8 |
50.3 |
49.7 |
Order required information:
- output power: 13~24dbm,
- output port: 1 port, 2 port, 3 port, 4 port
- number of pump: 1 or 2
- number of power supply: 1 or 2
Delivery time: 10 workdays after 30% tt payment.
Or by sea or by air or by train

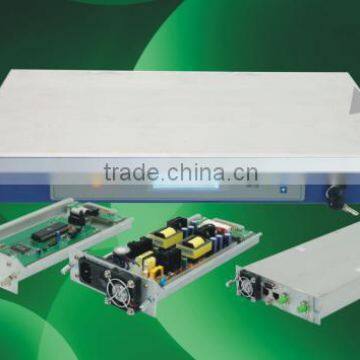

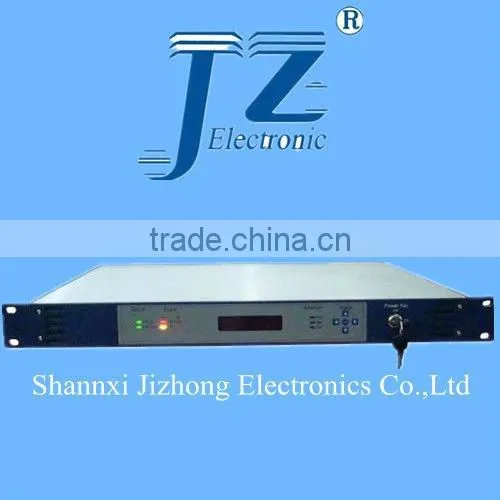

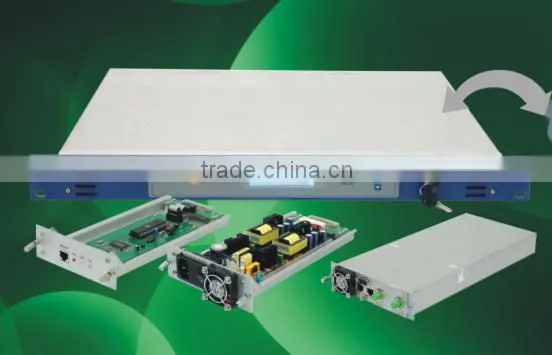

Product shows:

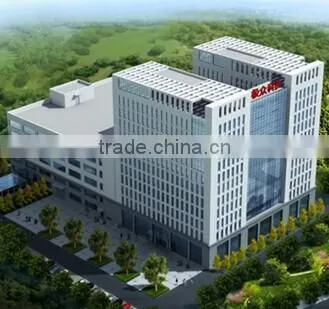

Our factory:
Our service:
1.Your inquiry related to our products or prices will be replied within 24hours.
2.Well-trained and experienced staffs to answer all your enquires in fluent English.
3.OEM & ODM, any your customized requirements we can try to help you realize.
4.Protection of your sales area ,ideas of design and all your private information.
5. 3 years warranty.
