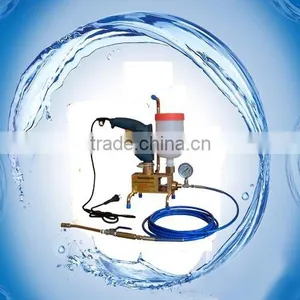

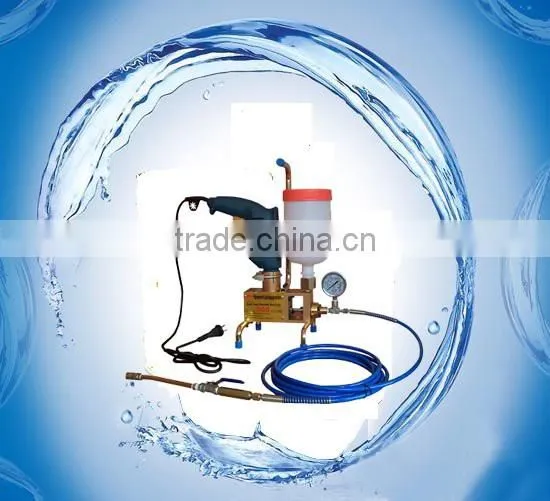

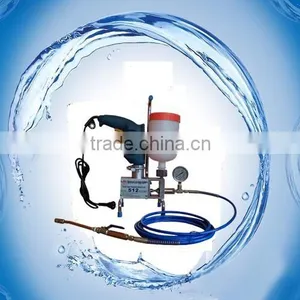

"Red letter" HX-512 high-pressure grouting machine is summarize and absorb the international multidisciplinary advanced technology, insulation material combinations developed a new micro mechanical, including hydraulic technology, mechanical technology, chemical materials and technologies such as multidisciplinary composite technology and new products. HX-512 high pressure grouting machine is the construction engineering, underground engineering, water conservancy project, environmental protection engineering, subway, tunnel, culvert works stoppage leakage stoppage, best mechanical equipment.
Mechanical features:
1 ring: good mechanical performance, no noise, no pollution.
2 simple: small size, light weight, easy to carry, simple operation.
3 high efficiency: advanced technology, save time, effort, and efficiency.
4 safety: technology, reasonable structure, safe use.
5 high pressure: the grouting pressure 0-10000, the concrete structure inside the micro gap, micro gap, micro pores, capillary fill plug.
6: direct mounting structure nondestructive Grouting grouting waterproofing concrete cracks on the needle, not tick groove, not buried pipes for nondestructive structure.
7 with water plugging of various gap leakage, honeycomb leakage, underground water gushing, directly with water grouting.
8 sets: the use of material range: polyurethane, epoxy, acrylic, etc..
9 power: one machine, plugging grouting, consolidation grouting, filling grouting, pressure grouting.
10: simple maintenance, convenient maintenance, durable, easy to wash.
Four, the standard parts of the machine:
Fuselage one
Material cup one
Five meters high pressure tube one
High-voltage switch one
Perfusion butter head a
A 220V drill
Maintenance Kit
Seal a cup cover
One of the filters
HX-512 high-pressure grouting machine troubleshooting
Operation of electric drill and electric drill from the fixed seat
Reason: drill running direction error, on the contrary.
Methods: drill adjustment to R (forward) position, re drill carefully installed back drill fixing seat, confirm electric drill and electric drill seat is fixed internal gear engagement right, lock the screw can be.
Drill the fixed seat and the fuselage joints loose
The reason: high pressure pouring machine for working environment, leading to vibration body operation, the drill fixed seat screw loose.
Methods: the drill out, to universal clamp fixed axis, remove the drill is fixed inside the base counter gear, then the drill fixed seat screw locking can be.
