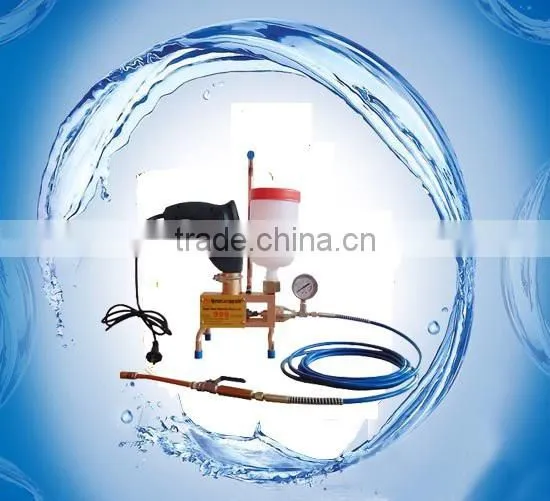

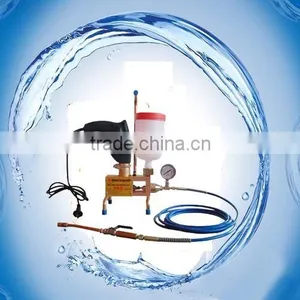

HX-999 high pressure grouting machine
Shanghai red letter HX-999 high-pressure grouting machine inherited the precision machinery and light and convenient characteristics, exclude the shortcoming of the past more than minor defects, play fast pressure, large flow, rapid assembly and disassembly, easy maintenance, convenient cleaning with ultra high pressure does not need air pressure source and light weight, can solve the construction carry the inconvenience of stupid heavy machinery, Shanghai red letter HX-999 high-pressure grouting machine is professional waterproof construction were the best choice. Gear lifetime warranty, pump and pressure box are made of alloy, durable, use for long, Shanghai red letter HX-999 high pressure grouting machine is currently the most front end of the new product.
Electric plugging machine
One, product principle
High-pressure grouting plugging is the use of mechanical pressure power (high pressure pouring machine), the chemical grouting material into the cracks in the concrete, when slurry encountered cracks of concrete moisture will spread rapidly, emulsification, expansion and consolidation, such consolidation of elastic concrete filled the cracks will flow completely jam at the outside of the concrete structure in order to achieve the purpose of leak stoppage.
Two, product features
1, environmental protection: good mechanical performance, no noise, no pollution.
2, portable: small volume, light weight, easy to carry, easy to operate.
3. High efficiency: can reach 0~80MPa in a few seconds. Advanced technology, save time, effort, efficiency.
4, security: technology, reasonable structure, safe use.
5, the pressure continued: continuous high pressure can effectively make the concrete structure of the micro gap, micro cracks, micro pores, capillary fill plug.
6, structure: Nondestructive Grouting grouting nozzle of concrete crack is directly installed, do not tick groove, not on the structure of buried pipe, nondestructive.
7, with water plugging: for various gap leakage, honeycomb leakage, underground water gushing, directly with water grouting. The slurry can be effectively injected into the crack depth.
8, supporting the use of a wide range of materials: polyurethane, epoxy resin, acrylic resin, such as no granular low viscosity slurry material can be used.
9, multi function: a machine with more, plugging grouting, consolidation grouting, crack filling grouting.
10, resistance to use: the maximum pressure of 80Mpa when the body parts without distortion. Simple maintenance, convenient maintenance, durable, easy to clean.
Three, applicable scope
1, all kinds of buildings and underground concrete construction cracks, expansion joints, construction joints, structural cracks sealing sealing.
2, geological drilling engineering drilling wall plugging reinforcement.
3, water conservancy and Hydropower Project reservoir dam grouting, water diversion tunnel cracks, leakage, seepage, dam body concrete cracks of the anti seepage reinforcement.
4, high-rise buildings and railway, high grade highway subgrade reinforcement and stability.
The water tunnel wall 5, coal mining and other mining engineering, such as broken roof reinforcement layer.
6, bridge foundation reinforcement and bridge body crack reinforcement.
7, has been building deformation reinforced concrete structures, such as towers, water gap reinforcement and prevent subsidence.
8, soil improvement, soil surface protection and stability, etc..
Four, supporting plugging grouting material
Water soluble polyurethane sealing agent, oil soluble polyurethane sealing agent, epoxy resin reinforcing material
Note: perfusion, please wear protective equipment, such as gloves, masks, goggles, avoid direct contact with the skin, such as stained slurry please promptly rinse with water, eyes to MIS touch this product should first rinse with plenty of water immediately rushed to the hospital.
Machine trouble shooting
Operation of electric drill and electric drill from the fixed seat
Reason: drill running direction error, on the contrary.
Methods: drill adjustment to R (forward) position, re drill carefully installed back drill fixing seat, confirm electric drill and electric drill seat is fixed internal gear engagement right, lock the screw can be.
Drill the fixed seat and the fuselage joints loose
Reason: filling machine for working environment, leading to vibration body operation, the drill fixed seat screw loose.
Methods: the drill out, to universal clamp fixed axis, remove the drill is fixed inside the base counter gear, then the drill fixed seat screw locking can be.
Machines can not be pressurized
Cause: 1 set of material barrel obstruction.
2 pump residual foreign body.
3 axis pump wear.
Method: 1 exclusion of the material barrel obstruction.
At the end of the 2 joint release pump, pump and can remove the foreign body ball spring.
3 renewal axis pump.
Cause: when the butter is poured into the butter.
Method: the head of the butter in the rubber pad wear, butter head to open, the rubber pad for new, after the completion of the re - pack back.
Reason: when the butter nozzle and the perfusion head loose, unable to engage.
Method: butter, or four - jaw wear, with a new head of butter.
The machine can not rotate
The reason: the 1 body gearbox grout hardening blockage.
Method: the fuselage on both sides of the cover screw loose, remove, clean the residual oil, the new solid lubricant, packed with the completion of the reorganization of the cover.
2 piston with slurry residue lump.
Methods: the piston residue clean lumps.
Cause 3 power contact
Method: check the plug and switch and wire extension line is short, please connect the short-circuit point or replace the extension line.
* above the machine repair if not, please return to the company, has a professional repair personnel to serve you.
