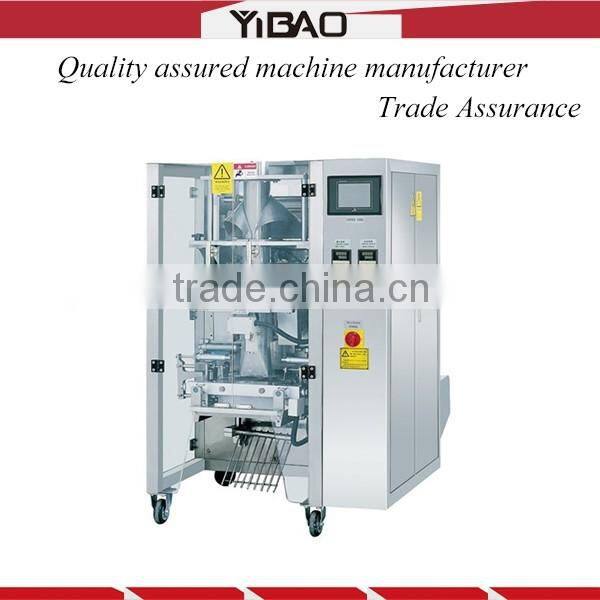

Automatic vertical form fill and seal bagger
1. Main technical parameters:
Model |
YB-320 |
YB-420 |
YB-520 |
YB-720 |
Film width |
Max. 320mm |
Max. 420mm |
Max. 520mm |
Max. 720mm |
Bag length |
50-200mm |
50-300mm |
80-350mm |
100-420mm |
Bag width |
50-150mm |
80-200mm |
90-250mm |
110-350mm |
Film roll diameter |
Max. 320mm |
|||
Packing speed |
25-80 bags/min |
15-80 bags/min |
10-70 bags/min |
10-50 bags/min |
Range of measurement |
150-500ml |
150-1500ml |
150-2000ml |
150-4000ml |
Film thickness |
0.04-0.10mm |
|||
Air consumption |
0.3m3/min, 0.6MPa |
0.4m3/min, 0.6MPa |
0.4m3/min, 0.6MPa |
0.8m3/min, 0.8MPa |
Power |
220V, 50-60Hz |
|||
Machine size |
1300x820x1400mm |
1400x970x1700mm |
1430x1200x1700mm |
1780x1350x2000mm |
Machine weight |
250kg |
450kg |
650kg |
800kg |
2. Main features:
1) Automatic finish bag forming, filling, sealing, cutting, date printing, counting, etc.
2) Famous PLC control system and color touch screen.
3) Servo motor to driving the film, double belt pulling film.
4) Full 304# stainless steel cover.

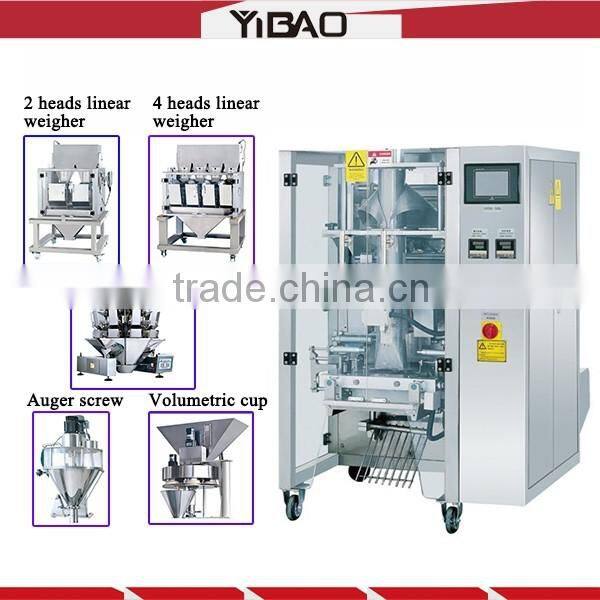

The vertical form fill and seal bagger equipped with different measuring system, such as linear weigher, multihead combination weigher, auger screw, volumetric cup or piston pump, can complete packaging system.
Payment terms: 1. 30% T/T as deposit, the balance 70% paid after inspection before shipment.
2. Trade Assurance through Alibaba.
3. Western Union.
Delivery time: 25 days for automatic vertical form fill and seal bagger after bag sizes confirmed.

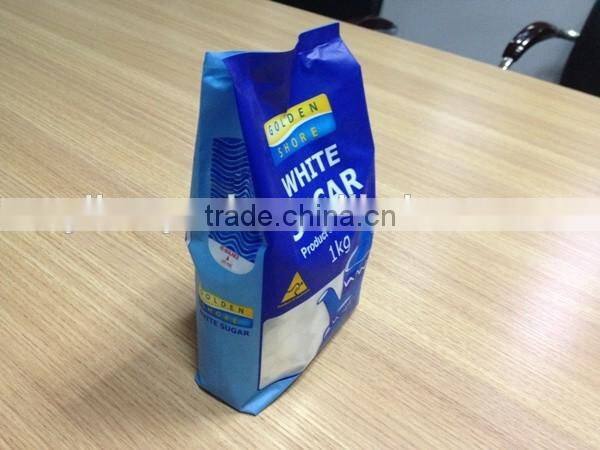

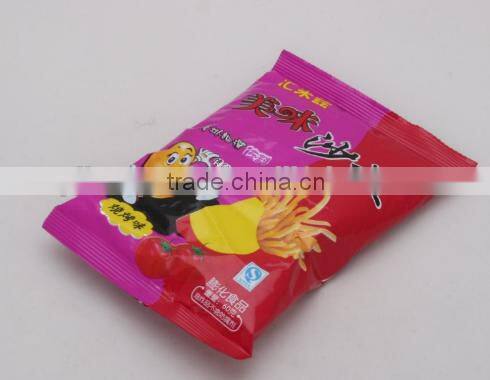

Pouch format:
Gusset bag
Pillow bag
Certificate:
After-sale service:
1. Warranty for machine is 12 months and lifelong maintence.
2. Free usage training before delivery at our factory.
3. Overseas available for our engineers to install the machine and training for your staff.
Contact:
Allen Ni
Mobile: +86 138 1911 2630 (WhatsApp & Viber)
Skype: allan.ni89
Email: allen (at)
Thank you for send us your inquiry with requirements (such as product, packing weight per bag, bag dimension or film artwork, etc), then we will provide machine layout and solutions for your choose.
We believe we will be your best partner for packaging solution specialist.
