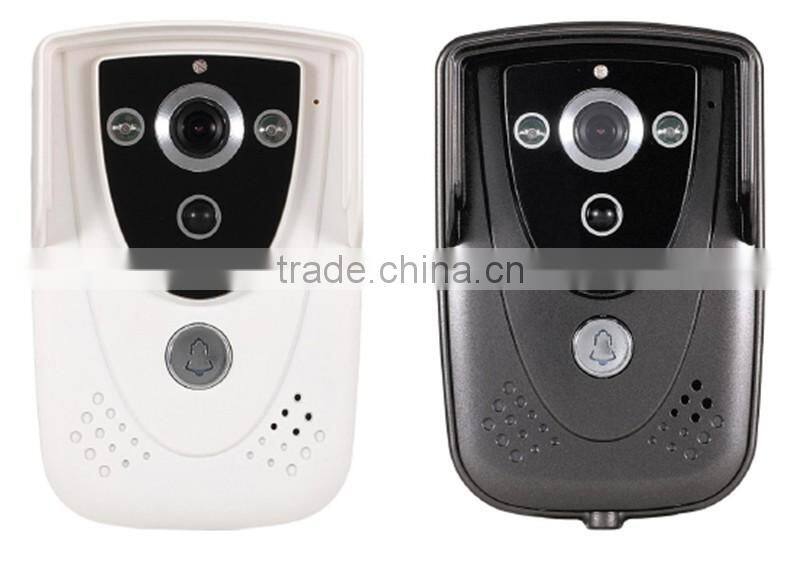

Help Center720P PIR Motion Sensor WiFi Visual Intercom Doorbell With IR Night Vision
Related Products
-
Network WIFI ip Video Doorbell for Home Security With HD Camera Motion Sensor Night VisionUS$ 50 - 70MOQ: 1 Piece -
Wifi Video Doorbell With Free App for Ios&android Video Calling and RecordingUS$ 50 - 70MOQ: 1 Piece
-
Home Security 2.4G Wireless Video Door Phone Real Time Video Intercom Wifi DoorbellUS$ 50 - 70MOQ: 1 Piece
-
Ring Wi-Fi Enabled Video Doorbell For Home Security Global Wireless DoorbellUS$ 50 - 70MOQ: 1 Piece
-
10m Night Vision 720P Smart WIFI Video Doorbell See Talk With Visitor Anywhere AnytimeUS$ 50 - 70MOQ: 1 Piece

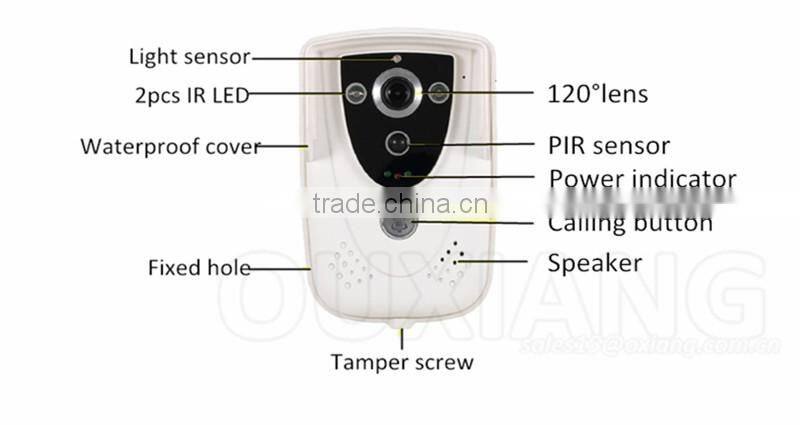

WIFI video doorbell connects to network via wireless router or network cable.Mobile devices include smart phone or tablet,could connect to the doorbell;After the visitor rings,mobile devices could interact with doorbell via real time video and audio,user can view the visitor,then decide to whether intercom or open the door etc.
Specification
1. With touch calling button;
2. With rain-proof cover,waterproof level IP55.

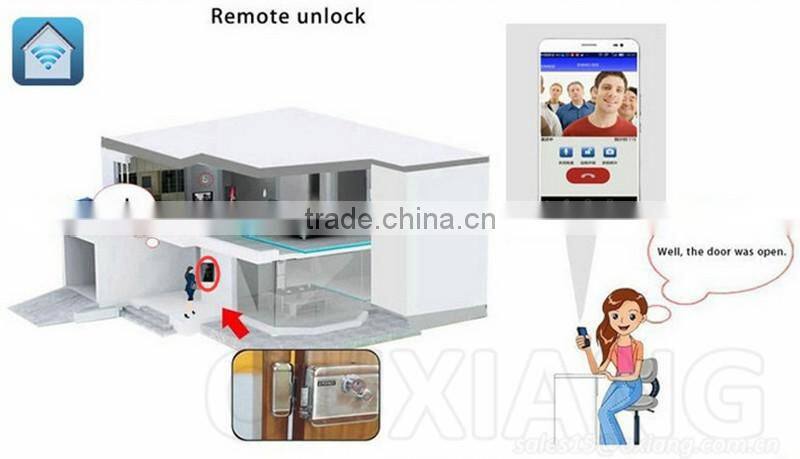

3. With unlock function
4. With GSM function,insert SIM card,when the device is offline,the doorbell can call the user’s mobile phone,only can support one SIM card.
5. One doorbell can support max to 8 mobile devices
6. One mobile device can support max to 4 WiFi doorbells
7. With intercom function,voice loudly.
8. Support motion detection
9. With IR night vision
10. Support monitor function through mobile device.
11. Can take photo by manually
12. Can take video(the video file will store on the mobile device or sever)
13. P2P cloud service could push messages of visitor calls,visitor photos and motion detect alarm to mobile device.
14. Network setting is very easy.
15. With 3 million pixel camera.
Details
| hardware attributes | attribute |
| main chip | MTK Cortex-A7,dicaryon 1.3GHz |
| memory | 4GbROM 2GbRAM |
| Internet | WIFI Enabled or Wired Router |
| WIFI | WIFI 802.11.a/b/g/n |
| camera | 500W camera (or USB camera);chip : OV5640;120 wide-angle |
| Signal | support CVBS signal in |
| TF card | UP to 32G TF card |
| night vision | 850 length (infrared lamp) |
| indicator | Suppurt LED indicator for working |
| buttons | Power,Reset,Call |
| Unlock | remotely unlock door |
| power consumption | Standby,:1mA(heart-braek:50mA) Working: 500-600mA(including 200mA for camera and 300mA for 7inch panel), |
| battery | 6000mAh lithium battery,support three monthes in standby status |

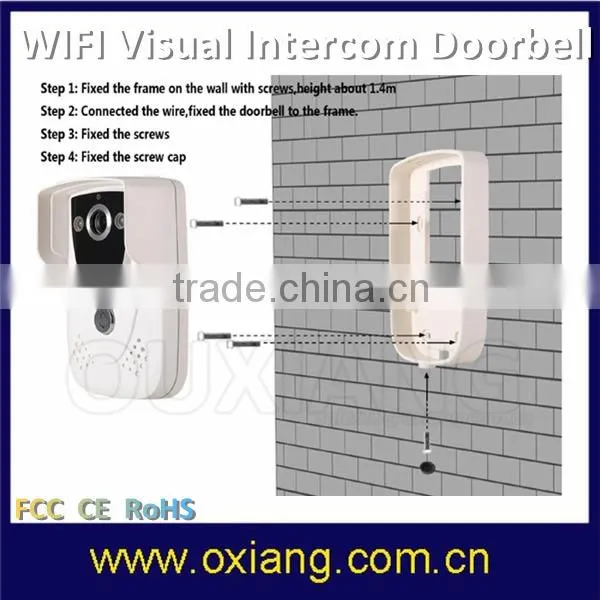

Installation

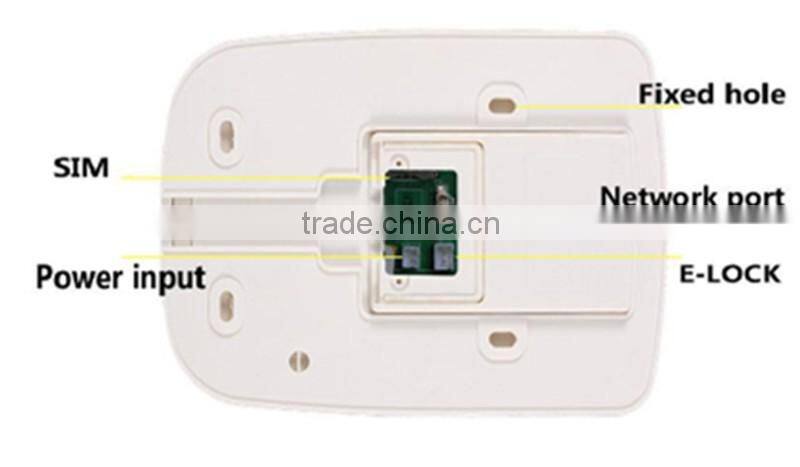

1.Back Cover installation wire diagram:

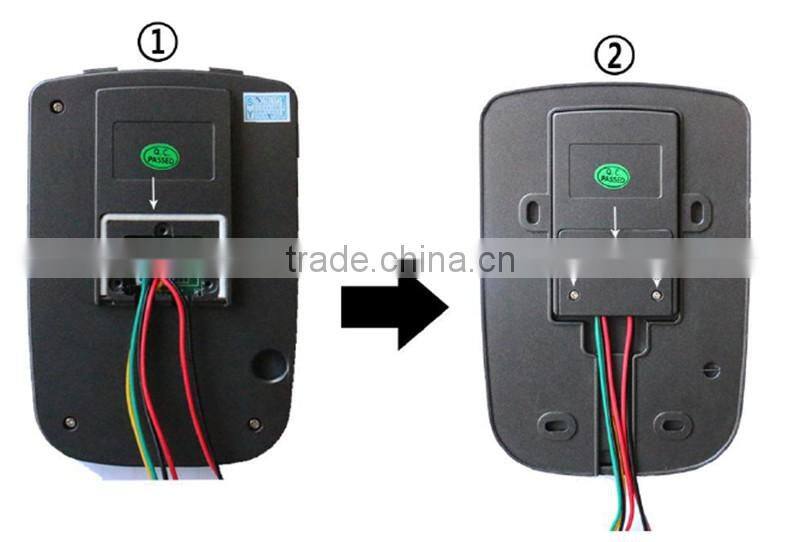

Step1: Connect wire,then install the waterproof sponge
Step2: Install the waterproof cover and screws

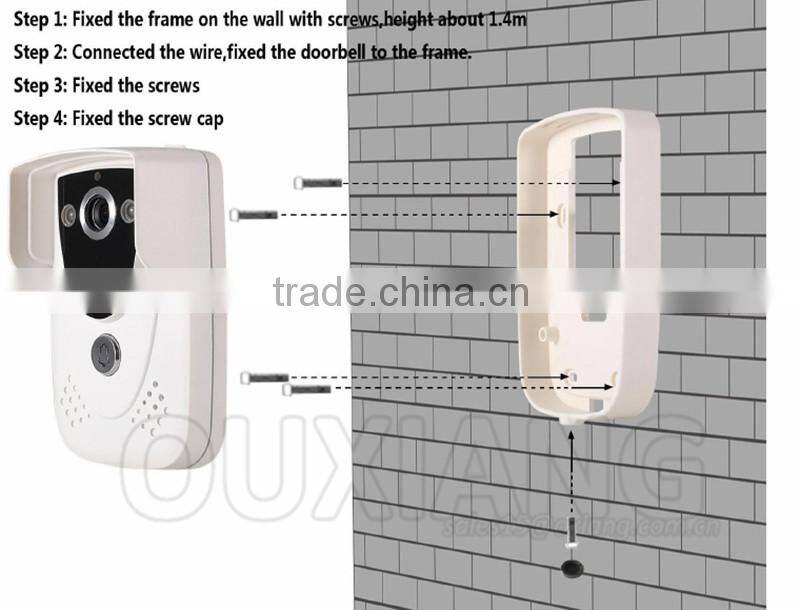

2.Outdoor unit recommended location:
A: Height: about 1.4 meter
B. near to wifi router

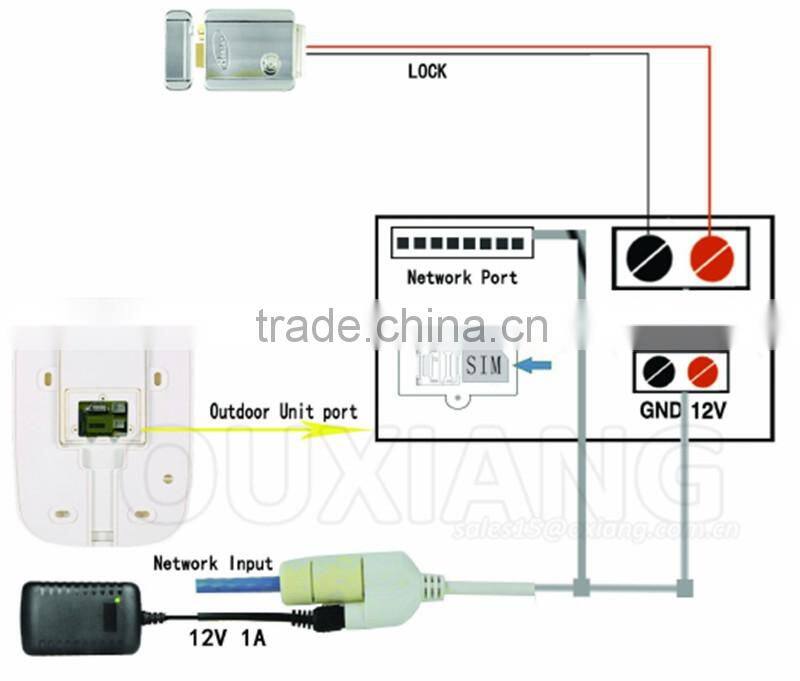

E-lock Wire Diagram
How to Use

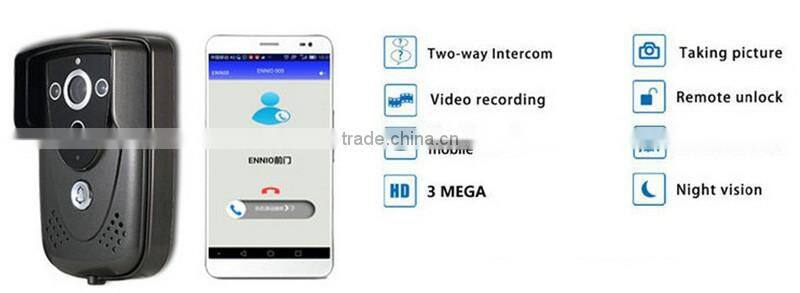

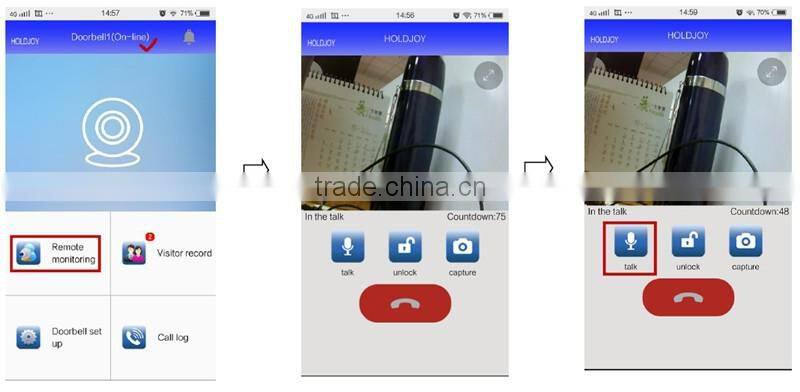

APP functions(both for IOS and Android)
Visual talkback
Visitor Record
Doorbell Set up
Call Log
......
Device:
Smartphone or tablet above Android 4.2 version,IOS 8.0 version.
Home network above 2M,with wireless wifi router.
Mobile Phone network 2G,3G,4G.
Can insert SIM card:GSM WCDMA
2G:GSM 850/900/1800/1900
3G:WCDMA 850/900/1900/2100

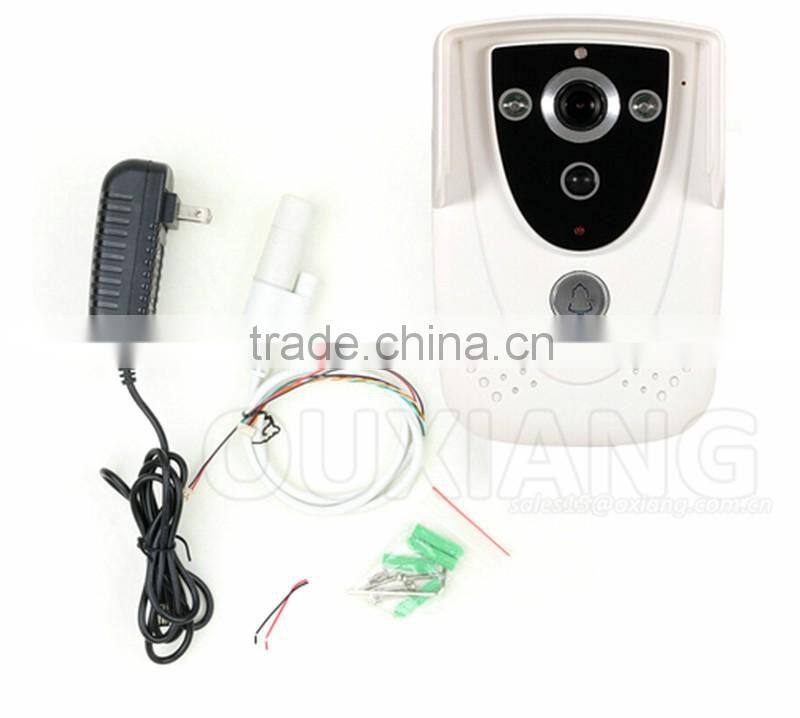

Accessories
12V1A Power Supply*1
WIFI Outdoor camera*1
terminal wire*1
unlock wire*1
Screws*1
Tools*1
Packaging Box
Gift box size: 25.5*20.5*7.2cm;
Outside box size: 55.2*38.7*30cm;Including 12pcs
Company information
Shenzhen Ouxiang Electonics Co., Ltd.,Was borned in the Chinese biggest Electronics Industries City -Shenzhen,.Which is a high-tech corporation was founded in Sep of 1998, with 100 staffs, and a factory of 2000 quare meters We are professional on Security Product.
Our products have sold to over 80 countries and areas. Approved CE, Rohs, FCC, UL, ISO9001, CCC etc. Stable quality and professional service have won kinds of long time cooperation agents and distributors.
Welcome to visit our company and our factory!
- Your inquiry related to our product & price will be replied within 24hours
- Well-trained & experienced staff are to answer all your inquiries in English of course.
- Working time: 9:00am ~6:00pm, Monday to Saturday(UTC+8).
- OEM & ODM projects are highly welcomed. We have professional team here to help you
Other models for your choosing,welcome to send inquiry to ask the price list!
