Product Parameters:
H.264 1/3" Color CMOS Sensor 1,000k Pixels
Support 1,4 and 9Ch image display and full screen view on web browser
Suport QR Code Scanning.
Maximum support 32GTF Card
High image & video quality,Two-way audio monitoring
P2P(Plug&Play)technology
Mechanical IR-Cut device offers outstanding day/night performance, great color;
Mobile Monitor: iPhone(APP Store),Android
(1280*720) Pixels 720P/D1/VGA/QVGA/QCIF,dual stream
Allow remote viewing & record from anywhere anytime
Wi-Fi compliant with wireless standards IEEE 802.11b/g/n
Support TCP/IP, ONVIF ,RTSP ,P2P SMTP, HTTP, FTP, PPPoE and other Internet related protocols;
Certification: TELEC CE,FCC,ROHS
Power:DC 5V2

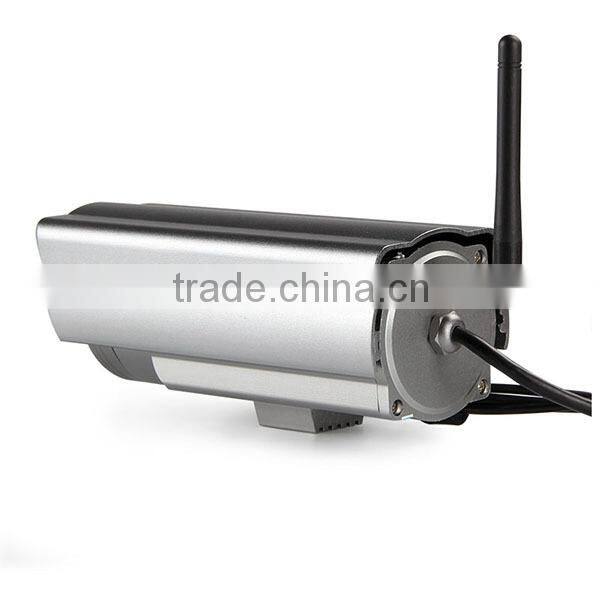

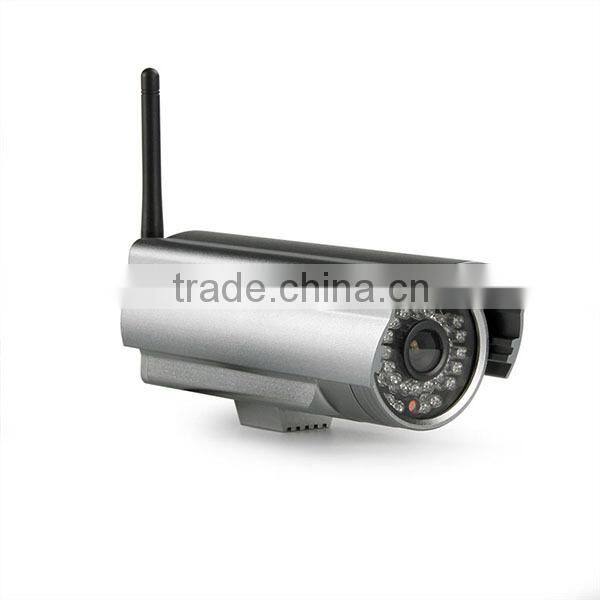

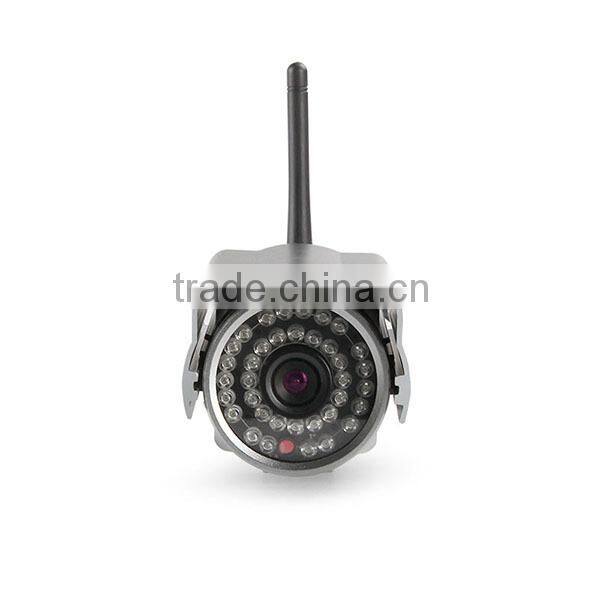

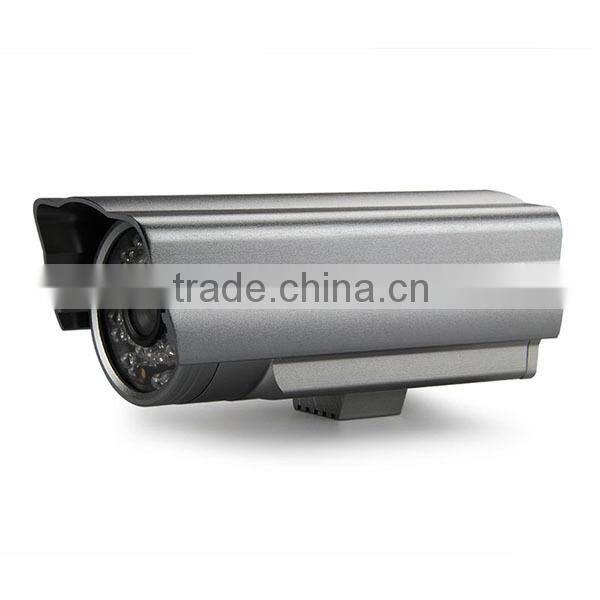

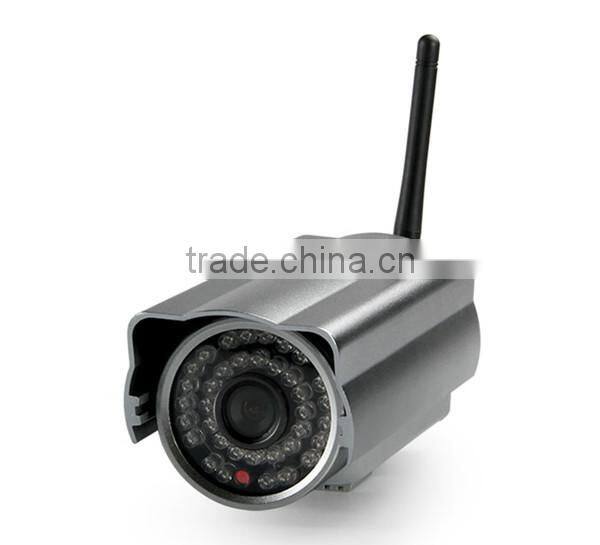

Pictures:
Specification:
| Model | ||
| Features | System security | Account, password authority management |
| Free DDNS | Free DDNS, supports dynamic IP. | |
| View by phone | Support HD pic IOS, Android mobile view (iOS 4.3,Android OS 2.3 above) | |
| Local Storage | support up to 32GB MicroSD card,24-hour loop recording. | |
| Monitor Advantage | Support PC computer monitoring, smartphone multi-pic view. | |
| PnP | Plug & Play,99% penetration rate, Easy to setup: 1. connect the network cable and power adapter, 2.install APP, scan UID code to add camera. 3,Click online camera to view the camera. |
|
| QR Code Scanning. | UID scan technology applied, easy to operate, and highly confidential. | |
| Super Client | 1,4,9,16,25,36, 64,81-channel central management software, no user number limitation , centralized surveillance, remote record and playback, alarm email ect. |
|
| System | OS | Embedded Linux OS |
| Control protocol | ONVIF 2.0 protocol, high interoperability | |
| Video coding | Multi stream:720P@30fps+VGA@30fps+QVGA@30fps+720P @1fsJPEG capture | |
| Bit Rate | CBR/VBR, output bit rate range:128~4096kbps | |
| Processor | Hi processor, built in ARM926 @Max. 440MHz and high-speed video co-processor | |
| Video | Compression Format | H.264 baseline profile@levels:3.1/Motion-JPEG |
| Frame rate | 30fps/24fps(720p) | |
| Resolution | 720P(1280*720), VGA(640*480), QVGA(320*240) | |
| Sensor | 1/4 720p Progressive CMOS sensor | |
| Minimum illumination | 0.8Lux/F1.4(colourful model ),0.3Lux/F1.(B&W mode) | |
| SNR | ≥39dB | |
| IR control | IR turned on: night vision view enabled, infrared Ray, ICR auto detect.IR turned off: night vision disabled, infrared ray off, ICR stay in day view mode. |
|
| Electronic shutter | 1/50s(1/60s)-1/100, 000s | |
| CMOS | support AWB, AGC, BLC | |
| Lens/viewing angle | 3.6mm/ F1.4/56.14 | |
| Night Vision | Night vision | Dual IR-CUT Filter auto switch, 12pcs 850nmΦ5mm LED,10m IR distance |
| Audio | Compression format | ADPCM/32kbps |
| Input | 1 Channel Line in (3.5mm phone jack) &1 Channel Internal -48dB Microphone | |
| Output | 1 Channel Line out (3.5mm phone jack)&Internal speaker(8Ω1W) | |
| Preset Postion | suppor up to 15 preset postions | |
| network interface | 10Base-T/100Base-TX Ethernet interface | |
| Network Protocol | TCP/IP,HTTP,TCP,UDP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPnP,RTSP,P2P,etc. | |
| wireless network security | WPS encryption | |
| Online visitor | Support 4 online visitors simutaneoursly | |
| IP address | Dynamic IP and static IP address | |
| WIFI | WIFI 802.11 b/g/n | |
| Others | housing material | engineering plastics |
| Application environment | Indoor | |
| Rated Voltage | DC5±0.3V | |
| Temperature | -10~50 °C | |
| Power consumption | rated power:3.5W(IR opening )/maximum power:7W(P/T working ) | |
| Package size | 179×120×200mm (L×W×H) | |
| Weight | Gross Weight :755g(Note: in kind prevail) | |
| Accessories | Power adapter, user manual, warranty card, mounting bracket, screws. | |
| Alarm | Motion Detection | Support motion detecting |
| System Requirement | System configuration | Win98 SE/ME/2000/XP,Vista,iPhone iOS4.3,The android version 2.3 or higher |
| Certificate | Certificate | TELEC FCC CE RoHS |
| Only for reference | ||

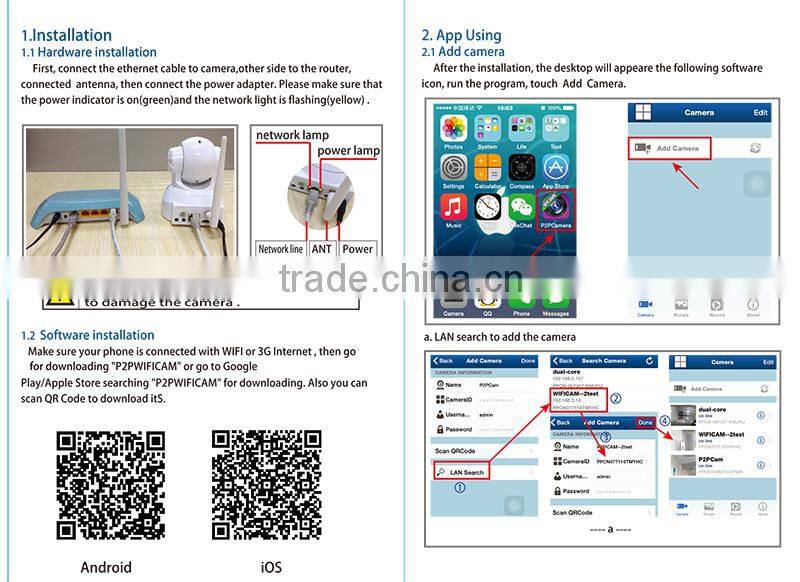

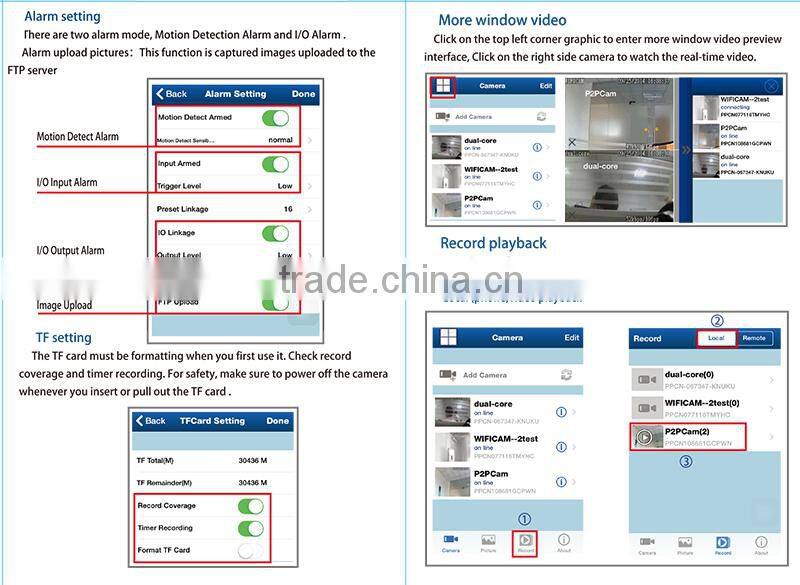

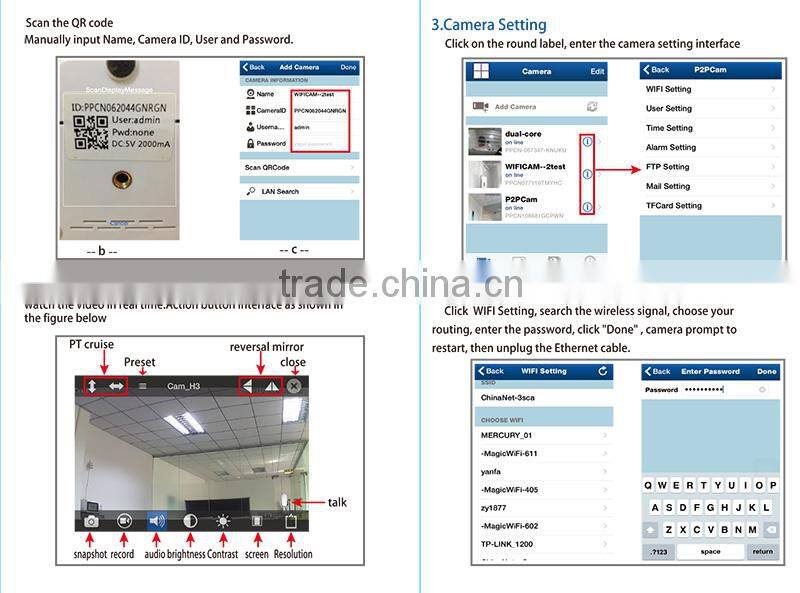

Installation:
Packing:
Package size:179×120×200mm(L×W×H)
Weight:660g (Note: in kind prevail)
Carton size:62x41.5*36.5CM (Qty:20pcs) (Weight: 13.2kg)
Ouxiang International Limited is a professional manufacturer of consumer electronic products. Our first U.S. cell phone plant was established in 1996. With the development of electronic commerce market, we continue to expand very quickly. Until 2009, Ouxiang has already had five factories, which mainly concentrate in rearview mirror ,Bluetooth car kits,Solar multifunction generator,and GPS tracker positioning systems.and Ouxiang team can develop, design, produce and sell at the same time.
Products:
Mini Sport DV,PIR Camera&Recorder,Police DVR Recorder,Wireless Baby Monitor,Wireless Monitor Receiver Kit,GPS tracker ,BlueTooth Rearview,Bluetooth Car Kit,Car Parking Sensor,Car DVD GPS,Headrest Monitor etc.
If you want to know more about us, Please feel free to contact with me.
- Your inquiry related to our product & price will be replied within 24hours
- Well-trained & experienced staff are to answer all your inquiries in English of course.
- Working time: 9:00am ~6:00pm, Monday to Saturday(UTC+8).
- OEM & ODM projects are highly welcomed. We have professional team here to help you.
Welcome to contact us for more details,thanks for your attention,have a nice day!
