• CNPC Supplier
As a main pipe fittings supplier for CNPC (China National Petroleum Corporation), ENN and Chongqing Gas, we implemented more than 50% oil and nature gas projects in China. |
|
• Industry Reputation
Our factory rewarded as a professional manufacturing base for PE pipe and fittings by CIATA (China Industry Anticorrosion Technology Association) and CCEMA (China Chemical Enterprise Management Association) in 2009. |
|
• Quality Control
Our factories are conformity with quality management system standard ISO9001:2008, ISO14001:2004 and Safety regulations (EU) No 305/2011 & Construction Products Directive 89/106/EEC etc. |
HDPE Pipe Applications:
1. Drinking water supply system
2. Nature Gas supply system
3. Food and chemical industry
4. Replacement of cement pipes and steel pipes
5. For Mine, argillaceous silt/mud transportation
6. Irrigation and garden green pipe networks and sewage treatment
HDPE Pipe Advantages:
1.Non-toxic, apply to drinking water supply widely.
2.Green Initiative , PE is a recycled material, environment friendly.
3.Corrosion resistance: PE belongs to inert materials, can resistance to various chemical media.
4.Long working life. Minimum 50 years life under normal conditions.
5.Low system cost, less maintenance costs, reduce the cost for the project.
6.Good flexibility, high resistance to impact. Resistance to earthquake and twisting.
7.Non-leakage, PE pipe be connected by Electric welding.
Testing Report
| PROPERTIES OF HDPE MATERIALS | ||||
| No | Items | Units | Parameter | Test Value |
| 1 | Density | kg/m3 | ≥930 | 23℃ |
| 2 | Melt Flow Rate | g/10min | 0.2~1.4 | 190℃, 5kg |
| 3 | Thermal Stability(OIT) | min | >20 | 200℃ |
| 4 | Volatile Matter Content | mg/kg | ≤350 | |
| 5 | Moisture Content | mg/kg | ≥300 | ASTM D4019:1994a |
| 6 | Carbon Black Content | % | 2.0~2.5 | |
| 7 | Carbon Black Dispersion | Grade | ≤3 | |
| 8 | Gas Proof Components | h | ≥20 | 80℃, 2MPa |
| 9 | Resistance To Slow Crack Growth (en≥5mm) |
h | 165 | 8℃, 0.8Mpa 80℃, 0.92Mpa |
Specification
| HDPE100 Water Pipe | |||||
| Standard: GB/T13663-2000 ISO9001-2008 Thickness:mm | |||||
| PN | 0.6MPa | 0.8MPa | 1.0MPa | 1.25MPa | 1.6MPa |
| SDR | SDR26 | SDR21 | SDR17 | SDR13.6 | SDR11 |
| DN(mm) | thickness | thickness | thickness | thickness | thickness |
| 16 | 2 | ||||
| 20 | 2 | 2.3 | |||
| 25 | 2.3 | 3 | |||
| 32 | 2.3 | 2.4 | 3 | ||
| 40 | 2.3 | 2.3 | 3 | 3.7 | |
| 50 | 2.3 | 2.9 | 3.7 | 4.6 | |
| 63 | 2.3 | 2.5 | 3.6 | 4.7 | 5.8 |
| 75 | 2.9 | 3.6 | 4.5 | 5.6 | 6.8 |
| 90 | 3.5 | 4.3 | 5.4 | 6.7 | 8.2 |
| 110 | 4.2 | 5.3 | 6.6 | 8.1 | 10 |
| 125 | 4.8 | 6 | 7.4 | 9.2 | 11.4 |
| 140 | 5.4 | 6.7 | 8.3 | 10.3 | 12.7 |
| 160 | 6.2 | 7.7 | 9.5 | 11.8 | 14.6 |
| 180 | 6.9 | 8.6 | 10.7 | 13.3 | 16.4 |
| 200 | 7.7 | 9.6 | 11.9 | 14.7 | 18.2 |
| 225 | 8.6 | 10.8 | 13.4 | 16.6 | 20.5 |
| 250 | 9.6 | 11.9 | 14.8 | 18.4 | 22.7 |
| 280 | 10.7 | 13.4 | 16.6 | 20.6 | 25.4 |
| 315 | 12.1 | 15 | 18.7 | 23.2 | 28.6 |
| 355 | 13.6 | 16.9 | 21.1 | 26.1 | 32.2 |
| 400 | 15.3 | 19.1 | 23.7 | 29.4 | 36.3 |
| 450 | 17.2 | 21.5 | 26.7 | 33.1 | 40.9 |
| 500 | 19.1 | 23.9 | 29.7 | 36.8 | 45.4 |
| 560 | 21.4 | 26.7 | 33.2 | 41.2 | 50.8 |
| 630 | 24.1 | 30 | 37.4 | 46.3 | 57.3 |
| 710 | 27.2 | 33.9 | 42.1 | 52.2 | - |
| 800 | 30.6 | 38.1 | 47.4 | 58.8 | - |
| 900 | 34.4 | 42.9 | 53.3 | ||
| 1000 | 38.2 | 47.7 | 59.3 | ||
| 1200 | 45.9 | 57.2 | 70.6 | ||

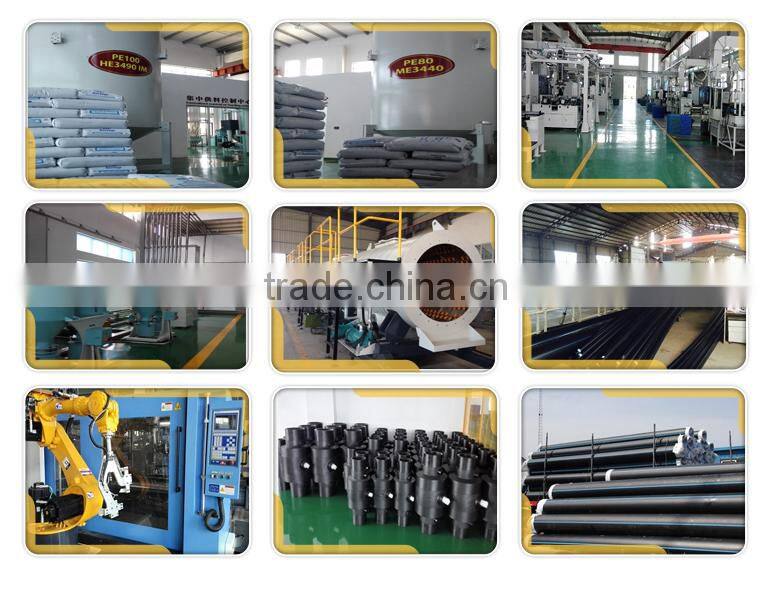

• Storage for Raw Material
(Clean and orderly to ensure the raw material has been well keeped, no quality issue in this stage)
Equipments and Workshops
(Uptodate testing equipments and production machines to make sure the high quality and production capacity)
Our factories has certificates including ISO9001:2008, ISO14001:2004, CE, TS etc.
Certificate of Material Supplier---PE Pipes and Fittings
• CNPC: China National Petroleum Corporation, Fortune 500
• China Tianlun Gas Holding Limited; ENN Energy Holding Limited; Order Group
An example of Testing report form one of our client, Mike said our product have a great performance and met their requirements on high quality.
Lepipe could provide one stop pipeline construction solutions for you including pipe, pipe fittings and weilding machine, and helping clients on resoucing other related qualified products or accessories, to save your time and energy.
|
|
|
| View Pipe | View Pipe Fittings | View Weilding Machine |
