WiFi Baby Monitor With Smart Phone Viewing

WiFi Baby Monitor With Smart Phone Viewing thumbnail-1
WiFi Baby Monitor With Smart Phone Viewing thumbnail-2
WiFi Baby Monitor With Smart Phone Viewing thumbnail-3
WiFi Baby Monitor With Smart Phone Viewing photo-1
WiFi Baby Monitor With Smart Phone Viewing photo-2
WiFi Baby Monitor With Smart Phone Viewing photo-3
US$ 36 - 52 MOQ: 100 Sets
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
OEM/ODM
Model Number:
OX-IPC2
Contact Supplier Request Quote Chat Now
Shenzhen Ouxiang Electronics Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name OEM/ODM
Model Number OX-IPC2

We care anywhere,we care anytime!  Monitor the baby all the time! With IP Camera Video Monitoring!

.

WiFi baby monitor with smart phone viewing









Feature:
1.IP Camera function

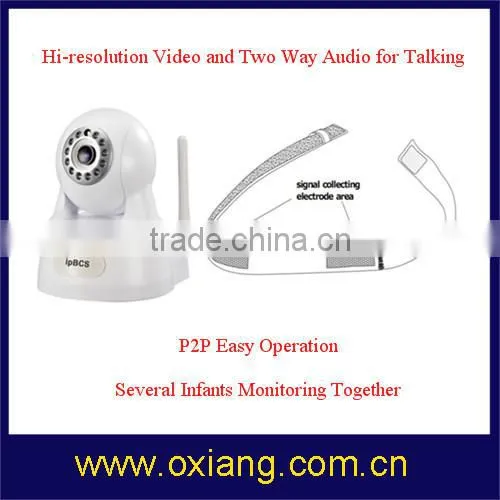

2.Hi-resolution video and two way audio for talking
3.Heart rate and temperature monitoring

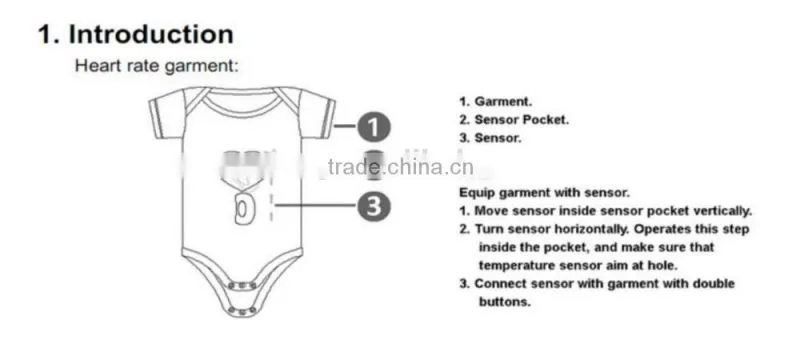

4.Soft textile ECG Garment
5.Medical Accuracy Infrared Thermometer sensor
6.Several infants monitoring together
7.P2P easy operation
8.Andriod and IOS App remotely monitor anywhere,anytime



Advantage:

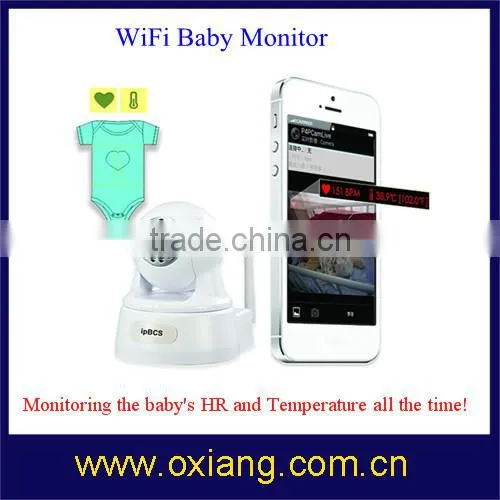

1).Monitoring the baby's HR and temperature all the time!
2).Show the accurate date,never mistake.

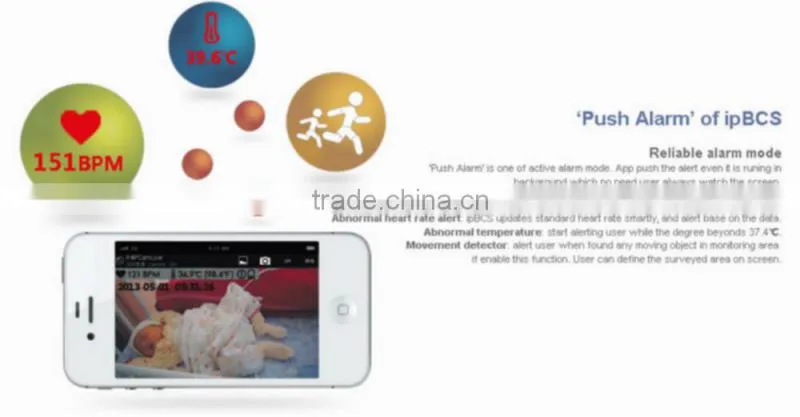

3).It will alarm(Buzzer inside) in monitor when the HR,temperature are higher or lower.
4).No need to handle thermometer everytime.Convenient!



Specification:



ITEMS
Garment Heart rate Accuracy: ±3 BPM
Temperatuer sensor Infrared medical grade sensor
Material Pure cotton and soft textile
Size Suitable for 0~12 months infants

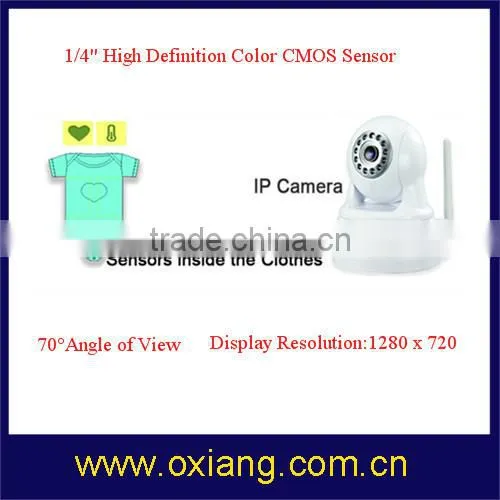

Image Sensor Sensor 1/4" High Definition Color CMOS Sensor
Display Resolution 1280 x 720 (1Megapixels)
Min. Illumination 0 Lux (With IR Illuminator)
Lens Lens Type Glass Lens
focal length f:2.8mm
Aperture F2.4
Angle of View 70°
Video Image Compression H.264
Image Frame Rate 30fps maxmium, downward adjustable
Resolution 720P(1280 x 720), VGA(640 x 480), QVGA(320 x 240)
Data Stream dual stream
Image adjustment The hue, brightness, contrast, saturation, sharpness are adjustable
Flip image flip and mirror
Infrared mode Automatic or manual
Pan/Tilt Angle Horizontal:300° & Vertical: 120°
Night visibility 11pcs IR-LEDs, night vision range up to 8 metres
Audio Input/Output Supports two-way audio
Built-in Mic & Speaker
3.5mm audio jack for external Mic & Earphone
Audio Compression PCM/G.726
Network Ethernet One 10/100Mbps RJ45 port
Wireless Standard WiFi IEEE802.11b/g/n
Data Rate IEEE802.11b: 11Mbps(Max.);
IEEE802.11g: 54Mbps(Max.);
IEEE802.11n: 150Mbps(Max.).
Wireless Security WEP, WPA, WPA2
WPS Supports WPS one button push wireless connection
P2P Supported
Network Protocol IP,TCP,UDP,HTTP,HTTPS,SMTP,FTP,DHCP,DDNS,UPnP,RTSP,WPS
PC System Requirements Operating System Microsoft Windows 2000/XP, Vista, 7, 8;
Mac OS
iOS,Android
Browser Microsoft IE6 and above version or compatible browser;
Mozilla Firefox;
Google Chrome;
Apple Safari.
Other Features Motion Detection Alarm via E-Mail, upload alarm snapshot to FTP
Privacy Zone Set privacy zone manually
User Accounts Three levels user role
Firewall Supports IP Filtering
Storage SD card, Max 32G
Reset Reset button is available
Power Power Supply DC 5V/2.0A
Power Consumption 7.5 Watts (Max.)
Physical Dimension(LxWxH) 117(L)*114(W)*129(H) mm
Gross Weight 680.7g
Net Weight 312.5g
Environment Operating Temperature -20° ~ 55°C (-4°F ~ 131°F)
Operating Humidity 20% ~ 85% non-condensing
Storage Temperature -20°C ~ 60° (-4°F ~ 140°F)
Storage Humidity 0% ~ 90% non-condensing
Certification CE, FCC, RoHS
Warranty Limited 1-year warranty



Accessories Including:



1.IP CAMERA,1 pc;

2.Pure Cotton Garment,1pc;Heart rate belt is optional

3.Heart Rate and Temperature Sensor 1pc,

4.WIFI Antenna 1 pc;

5.Power Charger 1pc;



WiFi baby monitor with smart phone viewingWiFi baby monitor with smart phone viewingWiFi baby monitor with smart phone viewing
