New Design Good Price Competitive Peanut Roasting Chopping Processing Line

Peanut Roasting Chopping Processing Line

Raw materials: peanut, almond, cashew nut

Capacity: 0.5-2t/h Finished Product: chopped peanuts

Peanut powder Application: Peanut cleaning, peanut roasting, peanut blanching, peanut sorting, peanut chopping, chopped peanut packing Shipping

Introduction of  Peanut Roasting Chopping Processing Line

Peanut roasting and chopping can provide substantial value addition to the raw groundnuts. China is one of largest peanuts country on planting & consumption & processing & exporting, in the past years, peanut manufacturers mainly export raw peanuts, with or without shell, such condition causes manufacturers enter low profit margin and face to high crisis on international business. Following the rising demand on many snacks manufacturers, confectionary within the country and oversea market, most of local peanut manufacturers begin to enter the further processing on peanuts.

Processing purpose

Peanut roasting & chopping line begins from raw peanuts through destoning, roasting, split blanching, sorting, chopping and packing, chopped peanuts are packed in bulk for sell.

It contains below steps

I.Peanuts Roasting: for satisfying chopping lien processing purpose, it should adopts multifunctional peanut roaster, this roaster can alter low or high temperature by means of electrical control system, the working temperature range is 90-170 Degree Celsius, roasting time is 25-30minutes. The thickness of peanuts will depend on different processing demand.

II.Peanut Split Blanching: roasted peanuts come from vibrating discharge device, through bucket conveyor, are feed into split blancher, under the rotating and friction of rubber rollers, peanuts are cracked, the red skin peels off and fall down with peanuts, at the mouth of blancher, red skin is collected by the air cyclone, split blanched peanuts will fall down to sorting conveyor.

III.Peanut Sorting: This section can be designed into two types, one is sorting by manual, another is sorting by mechanical. Un-blanched, imperfect, minor defects, damaged kernels, foreign material will be sorted out.

Metal detector: it is mainly designed to pick out the metal impurities among split blanched peanuts, in order to protect the cutter and keep purity of finished chopped peanuts.

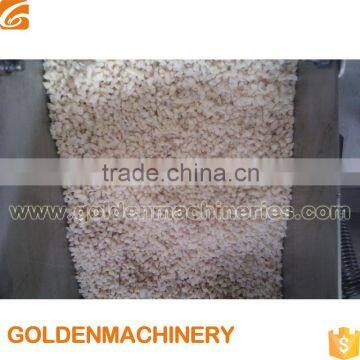

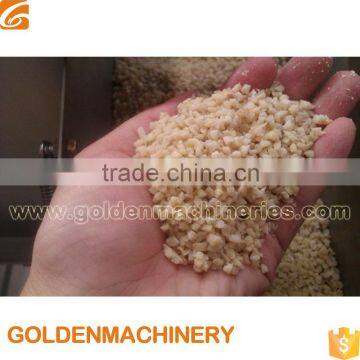

IV.Peanut Chopping: it has two times chopping process, when split blanched peanuts are feed into chopper via vertical conveyor, material is chopped into coarse grain by 1st chopping device, then flow into 2nd stage chopping and become mixing granulators. With the function of vibrating sifter, it is sorted into 4 uniform specifications. Generally the chopped size is divided into 5-8, 8-10, 10-12mesh, below 12mesh is powder texture.

V.Chopped Peanut Packing: chopped peanuts are packed into 2-10kg or in bulk. They are ready for going next step process.

Flow Chart of Peanut Roasting Chopping Processing Line

Our Strength

Based on the rule of Customer-orientated, we provide a comprehensive range of service

Initial consultation by call, email or on-line messenger

Project design, make the budget and feasibility analysis

On scene research and practical discussion

Advanced professional manufacturing, strict testing system

Trial operate the line till customer’s satisfaction

Timely delivery and ship organization

Guide installation, debugging and trial running

Monitor operating, train workers how to use and daily maintenance

1 year warranty period

Ongoing technical supporting and upgrading our equipment

Availability spare parts service and fast dispatching

Machine Configuration

 Gallery

Peanut Chopping Machine

Multifunction Roaster

Split Blancher

Peanut Roasting Chopping Production Line

1.We obey the rule of Customer-orientated
2.Initial consultation by email or on-line messenger
3.Timely delivery and ship organization
4.Guide how to use and daily maintenance
5.Provide a comprehensive range of after-sale service
6.Availability spare parts service and prompt dispatching

Our Customer

Experienced Installation & Training

If you are interested in our machine,please feel free to contact us!
