Home > Consumer Electronics > Mobile Phone & Accessories > Power Bank > 5V/1A 3600mAh Mosquito Disperse Rechargeable External Battery Charger Mobile Phone

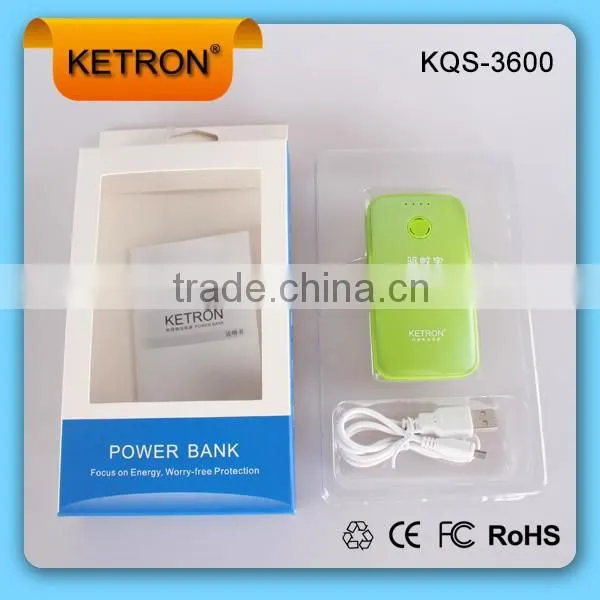

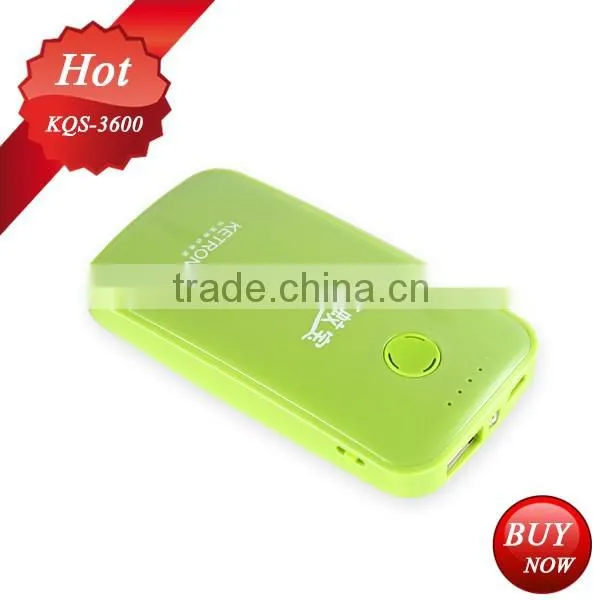

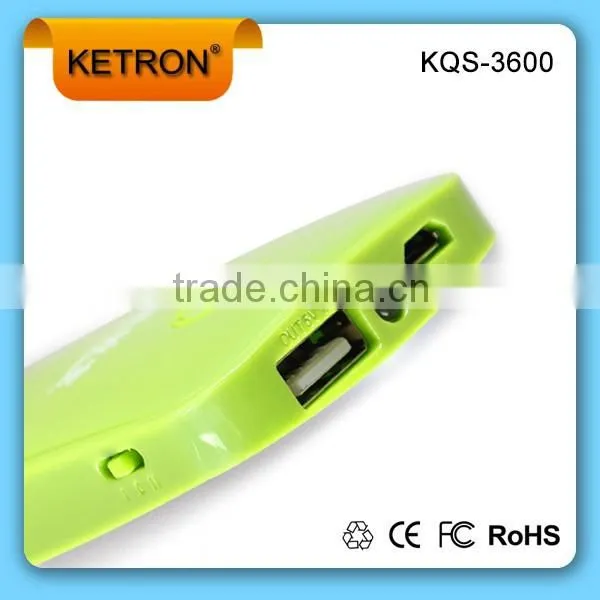

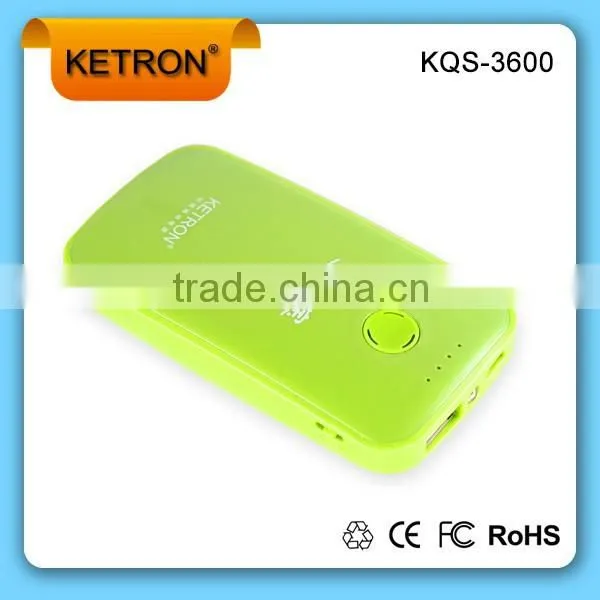

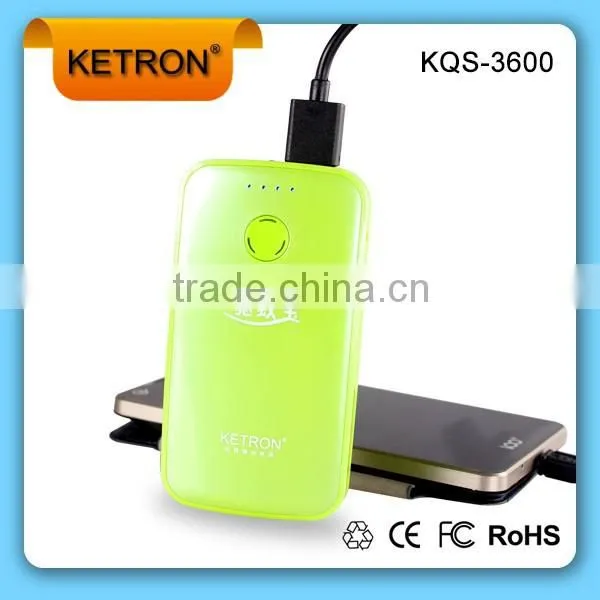

5V/1A 3600mAh Mosquito Disperse Rechargeable External Battery Charger Mobile Phone
US$ 3 - 5
MOQ: 1 Piece
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
KETRON
Model Number:
KQS-3600
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo or Shenzhen
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
5V/1A 3600mAh Mosquito Disperse Universal External Laptop Battery ChargerUS$ 3 - 5MOQ: 1 Piece -
5V/1A 3600mAh Mosquito Disperse 50000mah External BatteryUS$ 3 - 5MOQ: 1 Piece
-
5V/1A 3600mAh External Battery PackUS$ 3 - 5MOQ: 1 Piece
-
5V/1A 3600mAh Universel+chargeur+externe+de+batterie+d'ordinateur+portableUS$ 3 - 5MOQ: 1 Piece
-
Mosquito Drive 3600mah Power BankUS$ 3 - 5MOQ: 1 Piece
Place of Origin
Zhejiang, China
Brand Name
KETRON
Model Number
KQS-3600
Dimension
100*54*17mm
Weight
80g
Capacity
3600MAH, 3600mAh
Outport
5V/1A
Input
5V/1A, 5V/1A
Socket Type
USB
5V/1A 3600mAh mosquito disperse rechargeable external battery charger mobile phone
Why choose us?
1) We are factory: Good price & fast delivery.
2) We only do private tooling, A-grade polymer batteries, high quality materials & exquisite details.
3) Reliable quality with patent, CE, RoHS, FCC, C-Tick certificates.
4) OEM/ODM, customers design is welcome.
5) Excellent service, fast reply.
6) Sample order or trail order for test is acceptable.
| Capacity | 3600mAh |
| Input | 5V/1A |
| Output | 5V/1A |
| Warranty | 12 monts |
| Certification | FCC,CE,ROHS |
| Socket type | Unversial USB |
| Delivey detail | 7-14 days |
| Self charging time | 5-6 hours |
| Life time | >500 |
| Printing Logo | Free |
Company Information
KETRON was founded in 1995 and has been dedicating in assemled battery. Twenty-year technological accumulation makes us have the ability of good industrial resource integration and builds top-ranking product quality of KETRON. It is used as purpose of enterprice to provide clients fast and responsible service, ensure every client’s confidence on mobile power of KETRON with powerful service management and establish KETRON into high-quality brank of global battery industry carefully.
KETRON ensures each of products in the market only after strict multiple tests and tries its best to reduce maintenance opportunity based on quality philosophy of “quality service is the largest one”.
We selcect the high-quality components supplier,inspect each of stored equipments strictly and assure quality of KETRON at the sourse.
Each of our products stands up standard performance examination and operation of every technical process is in conformity with standard system of ISO9001.
Factory Photos 2015
|
Inspection Protocol
INSPECTION PROTOCOL AND QA FOR LITHIUM BATTERY
| No. | unit | min | type | max | remark | |
| charge | ℃ |
0 | 25 | 45 | ||
| discharge | ℃ |
-20 | 25 | 65 | ||
| storage | ℃ |
-20 | 25 | 45 | 1 month | |
℃ |
-20 | 25 | 35 | 6 months |
Before storage, batteries should be charged to 40%-65% of full capacity
Characteristics testing:
| item | test method | Requirements |
| Charging/Cut-off Voltage | 4.20±0.01V | |
| Discharge/Cut-off Voltage | 3.00±0.01V | |
| Standard Charge | Charge the battery at constant current of 0.2C to reach 4.2V. Then charge the battery at constant 4.2V voltage until , the charging current decreasing to 0.01C. | Charging time≤8h |
| Standard Discharge | After the standard charging,rest for 1 hour then discharge, to 3.0V 0.2c | |
| Rate Discharge | After the standard charging,rest for 1 hour then discharge, to 3.0V 0.5C | Discharging time≥102Min |
| High Temperature Characteristics | Fully charging, store them at (55±2)℃ for 2 hours, then discharge to 3.0V @0.5C | Discharging time ≥102 Min , No transform, no explosion,no fire,no leakage |
| Low Temperature Characteristics | Full charging, store them at (-10±2)℃ for 16-24 hours, then discharge to 3.0V @0.2C | Discharging time ≥255 Min, No transform, no explosion,no fire,no leakage |
| Capacity retention | Fully charging, store them at (20±2)℃ for 28 days, then discharge to 3.0V 0.2C | Discharging time ≥255 Min, No transform, no explosion,no fire,no leakage |
| Cycle Life 25℃ | Charge the battery @0.5C to reach 4.2V. Then charge the, battery at constant 4.2V voltage until the charging current, decreasing to 0.01C. Rest for 10 min. discharge to 3.0V 0.5C and rest for 10 min. Continue the charge/discharge cycles until discharge capacity lower than 80% of rated capacity | Cycle life ≥500 |
| Storage | Charge the battery to 40%~65% of its rated capacity using, standard charging mode, then keep it in an 20℃±5℃, humidity 45%~85% room for 12 months. Discharge it 0.2C until voltage down to 3.0V | Discharge time ≥240Min |
Environment Characteristics:
| Item | Testing Method | Requirements |
| Hot & humidity testing | Full charging, store it at 40±2℃ with 90%~95RH% for 48 hours. Then put the battery at room temperature 20±2℃ for 2 hours. Then discharge to 3.0V 0.5C | Discharging time ≥72 Min no transform, No erosion, no explosion,no fire,no leakage |
| Vibration | After Standard Charging,fixed the battery to vibration table,then subjected to vibration test for 30 minutes per axis of XYZ axes | No explosion,no fire, no leakage. Voltage≥3.7V. |
| Shock test | After Standard Charging,test condition Acceleration :100m/s2 Crash time per min: 40-80 times, Pulse lasting time : 16ms , Shock times : 1000±10times | No explosion, no fire, no leakage. Voltage≥3.7V. |
| Drop Test | After standard charging , drop the battery from 100cm, height onto a 18mm~20mm thick hardwood. Two sides of X,Y,Z directions each (total 6 times) After the drop test, discharge the battery 0.5C to 3.0V Then charge it 0.5C to full capacity. Continue the test within 3 times the battery should reach the target once | Discharging time ≥102 Min No erosion, no explosion,no fire,no leakage |
Safety Performance
| Overcharge protection test | After standard charging. Apply a 7.4V stable Voltage and 1C stable current to the battery for 8 hours | No fire, no explosion |
| Over discharge protection test | After discharged to the cut-off voltage,the battery shall be subjected to a short-circuit condition with a load of resistance less than 30Ω for 24 hours | No fire, no explosion |
| Short circuiting protection test | After standard charging,the battery shall be subjected to a short-circuit condition with a wire of resistance less than 100mΩ for 1 hour. Cut off the circuit, Charge the battery with constant current at 1.0C for 5s | No fire, no explosion, Voltage≥3.7V |
| Impact Test | After standard charge,Place the battery on a flat surface. A 9.1 kg article is to be dropped from a height of 100cm onto the sample. The battery is allowed to transform | No fire, no explosion |
| Heating Test | After standard charging,a battery is to be heated in an oven convection or circulating air oven. The temperature of the oven is to be raised at a rate of 5±2℃/min to a temperature of 130±2℃ and last for 30 minutes. | No fire, no explosion |
| Over charge | After standard charging, put the battery in fume hood. Add constant voltage & current 4.8V 3C to the battery. Charging it until the battery reaches 4.8V, charging current decreases to almost 0A. Record the temperature curve of the battery. When the battery temperature decreases to about 10℃ lower after reaching the peak temperature. End the test. This test is performed without PCM | No fire, no explosion |
| Short circuiting test | After standard charging, put the battery in fume hood. Connect the Negative Pole and Positive pole directly. (the wire’s resistance should below 50mΩ. Record the battery’s temperature curve during the test. When the battery temperature decreases to about 10℃ lower after reaching the peak temperature. End the test. This test is performed without PCM | No fire, no explosion |
| Production Machinery: | ||||
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
| SMT Machine 1 | JUKI KE-2010M | 2 | 7 | Acceptable |
| SMT Machine 2 | JUKI FX-1 | 2 | 5 | Acceptable |
| Semi-automatic Printing Machine | EW-3288 | 2 | 3 | Acceptable |
| Reflow Soldering Machine | EW-WP8800-LF | 1 | 3 | Acceptable |
| Ultrasonic Welding Machine | JX-2015A | 1 | 4 | Acceptable |
| Silk Screen Machine | GF-100 | 4 | 4 | Acceptable |
| Color Printing Machine | STYLUS PRO 4880C | 1 | 3 | Acceptable |
| USB Duplicator | Vinpower Digital 1/15 | 1 | 2 | Acceptable |
| ACF Bonding M/C | SK-ACF | 3 | 1 | |
| Testing Machinery: | ||||
| Machine Name | Brand & Model No. | Quantity | Number of Year(s) Used | Condition |
| Capacity Testing Computer | ASUS | 16 | 3 | Acceptable |
| LCR Bridge Meter | REK & RK2811C | 2 | 2 | Acceptable |
| Composition Inspection System | NEWAR & BFGS-8512 | 3 | 2 | Acceptable |
| DC Power Supply | LONGWEI TPR-3010D | 3 | 2 | Acceptable |
Send Inquiry to This Supplier
Business Type
Manufacturer, Trading Company
Year Established
1995
Factory Size
30,000-50,000 square meters
Total Employees
101 - 200 People
