SMD 3528 Led Strip (60 Pieces per Meter)

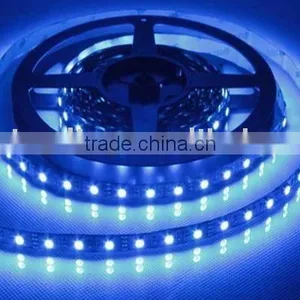

SMD 3528 Led Strip (60 Pieces per Meter) thumbnail-1
SMD 3528 Led Strip (60 Pieces per Meter) photo-1
US$ 4 - 8 MOQ: 500 Meters
Key Specifications
Get Latest Price
Place of Origin:
Zhejiang, China
Brand Name:
Mingding
Model Number:
MD-S3
Contact Supplier Request Quote Chat Now
Ningbo Mingding Optoelectronic Technology Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Ningbo
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Zhejiang, China
Brand Name Mingding
Model Number MD-S3

Specifications

SMD 3528 led strip
1.12V DC voltage
2.120 degrees Viewing angle
3.Energy saving,more than 50,000hours
4.Rich in color

SMD 3528 led strip (60 pieces per meter)



Specification:



Item Number Color led Qty Color Temperature Wavelength(nm) Illuminance(lm) PCB Size Voltage Power Beam Angle waterproofness Packing
3528 paster  DC12V  8mm yellow   60pieces/meter
  Nonwaterproof
MD-3528R-30A080-E12 Red 60/m   620-630 44-54 500*8*0.22mm DC12V 4.8w/m 120° IP64 5m/reel
MD-3528Y-30A080-E12 Yellow 60/m   585-595 44-54 500*8*0.22mm DC12V 4.8w/m 120° IP64 5m/reel
MD-3528B-30A080-E12 Blue 60/m   455-470 30-36 500*8*0.22mm DC12V 4.8w/m 120° IP64 5m/reel
MD-3528G-30A080-E12 Green 60/m   510-525 76-96 500*8*0.22mm DC12V 4.8w/m 120° IP64 5m/reel
MD-3528P-30A080-E12 White 60/m 6000-7000K   180-220 500*8*0.22mm DC12V 4.8w/m 120° IP64 5m/reel
MD-3528W-30A080-E12 Warm White 60/m 3000-3500K   180-200 500*8*0.22mm DC12V 4.8w/m 120° IP64 5m/reel
Epoxy waterproofing
MD-3528R-30B080-E12 Red 60/m   620-630 44-54 500*8*0.22mm DC12V 4.8w/m 120° IP65 5m/reel
MD-3528Y-30B080-E12 Yellow 60/m   585-595 44-54 500*8*0.22mm DC12V 4.8w/m 120° IP65 5m/reel
MD-3528B-30B080-E12 Blue 60/m   455-470 30-36 500*8*0.22mm DC12V 4.8w/m 120° IP65 5m/reel
MD-3528G-30B080-E12 Green 60/m   510-525 76-96 500*8*0.22mm DC12V 4.8w/m 120° IP65 5m/reel
MD-3528P-30B080-E12 White 60/m 6000-7000K   180-220 500*8*0.22mm DC12V 4.8w/m 120° IP65 5m/reel
MD-3528W-30B080-E12 Warm White 60/m 3000-3500K   180-200 500*8*0.22mm DC12V 4.8w/m 120° IP65 5m/reel
Waterstrong
MD-3528R-30C080-E12 Red 60/m   620-630 44-54 500*8*0.22mm DC12V 4.8w/m 120° IP66 5m/reel
MD-3528Y-30C080-E12 Yellow 60/m   585-595 44-54 500*8*0.22mm DC12V 4.8w/m 120° IP66 5m/reel
MD-3528B-30C080-E12 Blue 60/m   455-470 30-36 500*8*0.22mm DC12V 4.8w/m 120° IP66 5m/reel
MD-3528G-30C080-E12 Green 60/m   510-525 76-96 500*8*0.22mm DC12V 4.8w/m 120° IP66 5m/reel
MD-3528P-30C080-E12 White 60/m 6000-7000K   180-220 500*8*0.22mm DC12V 4.8w/m 120° IP66 5m/reel
MD-3528W-30C080-E12 Warm White 60/m 3000-3500K   180-200 500*8*0.22mm DC12V 4.8w/m 120° IP66 5m/reel
Epoxy Waterproof Casing
MD-3528R-30E080-E12 Red 60/m   620-630 44-54 500*8*0.22mm DC12V 4.8w/m 120° IP68 5m/reel
MD-3528Y-30E080-E12 Yellow 60/m   585-595 44-54 500*8*0.22mm DC12V 4.8w/m 120° IP68 5m/reel
MD-3528B-30E080-E12 Blue 60/m   455-470 30-36 500*8*0.22mm DC12V 4.8w/m 120° IP68 5m/reel
MD-3528G-30E080-E12 Green 60/m   510-525 76-96 500*8*0.22mm DC12V 4.8w/m 120° IP68 5m/reel
MD-3528P-30E080-E12 White 60/m 6000-7000K   180-220 500*8*0.22mm DC12V 4.8w/m 120° IP68 5m/reel
 MD-3528W-30E080-E12 Warm White 60/m 3000-3500K   180-200 500*8*0.22mm DC12V 4.8w/m 120° IP68 5m/reel



Applications:

ve lighting

2.Architectural lights for canopy, corridor, window, archway

3.Back light or edge lighting for signage

4.DIY lights for home use

5.Path and contour marking

6.Decorative lights for holiday, event, show, exhibition
