Specifications

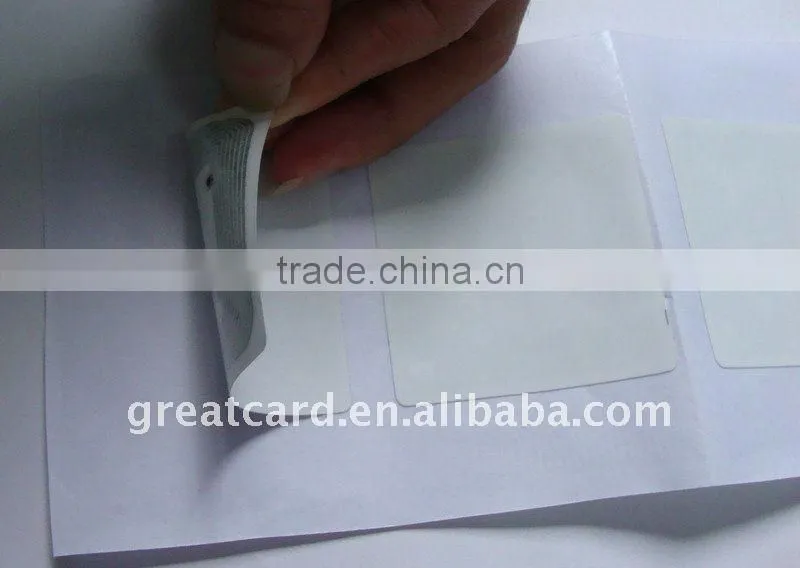

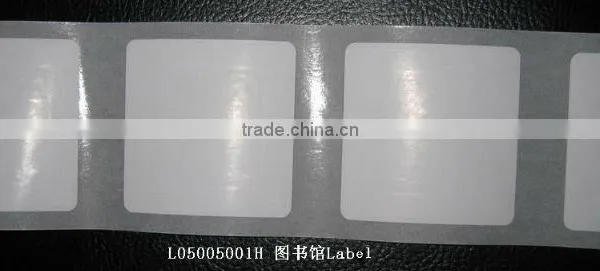

UHF library tag1.Compliant to ISO180006C
2.Operating frequency 860-960Mhz
3.Passive operation(no battery)
4.Long read range
The library features an extended 240 bit EPC number, 512 bit user memory and a 64 bit tag identifier, including a 32 bit unique serial number. It provides a unique custom command set, such as Electronic Article Surveillance (EAS), Read Protect and Calibrate. All custom commands are 32 bit access password protected.
No external power supply is required for the XCTF 8102A.
In addition, its nonvolatile memory (NVM) offers 100,000 cycle/50-year retention reliability.
Prior to delivery, the XCTF 8102A undergoes complete testing, ensuring the high quality
Conforming to EPCglobal Class 1 Gen 2 and ISO 18000-6C,
the tags shows unprecedented performance over the entire bandwidth of 902-928MHz, reliable operation in dense RF environments, and increased readability of tags within densely packed cases. It features a 96 bit EPC number and a 32 bit tag identifier (TID).
No battery is required for the tags. In addition, its nonvolatile memory (NVM) offers 100,000 cycle/50-year retention reliability.
Features
1.Compliant to EPCglobal C1 Gen 2 & ISO18000-6C
2.Operating frequency 860-960MHz
3.240-bit EPC number
4.64-bit tag identifier, including 32-bit unique serial number
5.512-bit user memory
6.Long read/write range
7.Passive operation
8.EAS (electronic article surveillance)
9.Memory read protection
10.32-bit access password, 32-bit kill password
11.Multiple tags operation
12.Compact design
Physical Characteristics
Dimensions
95 × 5.5 × 0.28mm (3.7 × 0.22 × 0.01in)
Base material
PET; Aluminum
Casing material
Adhesive
Package
5,000 inlays per roll; up to 12 rolls per carton
Core inner diameter
76.2mm (3in)
Core Width
95mm (3.7in)
Roll diameter
180±5mm (7.1±0.2in)
Weight
2.32kg ± 0.05kg/roll; 10.0kg ±0.2kg/carton (5.1±0.11lbs/roll; 22.0±0.44lbs/carton)
