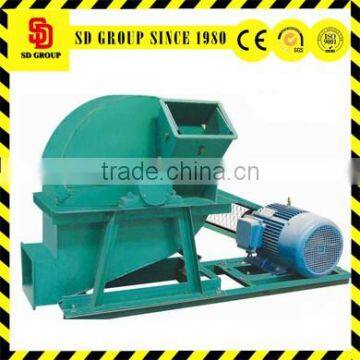

SD900 WOOD CHIPPER
Introduction:
The SD900 Wood Chipper is used to cut trees, wood material or other wood material to small chips for further using.It is mainly used for processing pine, hardwood, poplar, fir, raw bamboo, branches, grass, straw and other fibrous materials. Widely used in papermaking, MDF, fiberboard, particle board, sawdust board, mushroom, cultivation, wood particles, the mechanism of charcoal, boiler gas furnace combustion, etc...
SD900 Specification :
Model |
500 |
600 |
700 |
800 |
900 |
1000 |
Cutter diameter(mm) |
450 |
600 |
650 |
750 |
850 |
950 |
Blade number(pcs) |
4 |
4 |
4-6 |
4-6 |
4-6 |
4-6 |
Blade length(mm) |
100 |
150 |
200 |
230 |
260 |
300 |
Input sizer(mm) |
180×200 |
200×200 |
200x250 |
250x300 |
300x400 |
400x500 |
Spindle speed(r/min) |
2600 |
2500 |
2500 |
2300 |
2000 |
2000 |
Motor power(kw) |
7.5 |
11 |
15 |
22 |
37 |
45 |
Diesel (horsepower) |
15 |
20 |
28 |
32 |
45 |
55 |
Capacity(t/h) |
0.3-0.6 |
0.6-0.8 |
0.8-1.5 |
1.5-3 |
3-4 |
4-8 |
output size(mm) |
14-20 |
14-20 |
14-20 |
14-20 |
14-20 |
14-20 |
Weight(t) |
0.8 |
1.2 |
2 |
2.8 |
3.5 |
4.5 |
SD900 Working Principle:
The Wood Chipper uses the blade cutting and high-speed airflow impact, collision and double crushing function in a body, and can finish the material sorting processing operations at the same time. It has the screen mesh in the bottom, mesh size can be adjusted according to user requirements to change the final output size.
SD900 Raw material:
small diameter wood,timber harvesting(such as branches,twigs,etc.), processing residues(such as branches,twigs,planks,log cores,waste veneer,etc.), it can also be used for cutting non-wood materials(such as sugar cane,reed,bamboo,etc.)
SD900 Main features:
1.Flexible adaptability
The design of wood chipper machine avoids the application fluctuating. It is suitable for many different conditions, will not be influenced by weather and other external conditions.
2.Time saving
The drum wood chipper machine can be put into production directly, which will save much time.
3.Cost saving
The wood chipper machine has large capacity and works reliably, just need one or two persons to operate the machine.
4.Good chipping effect
It can be used to chip many different kinds of raw materials, meanwhile the output wood chips can be adjustable.

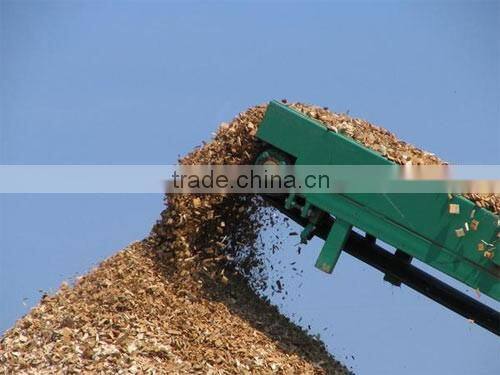

The whole set of drum chipper mainly is composed of three parts: wood log feeding structure, wood chipper machine, and wood chips discharging structure.
Application of wood chips:
mulch, composting material, fuel, walkways, decor, play area surface, erosion control......
1. Pre-sale support
We can enable them to get rich and generous returns on their investments:
1.Select equipment model;
2.Design and manufacture products according to clients' special requirement;
3.Train technical personnel for clients.
2.Services during the sale
We respect clients and always devote ourselves to improving the total value of clients:
1.Pre-check and accept products ahead of delivery;
clients to draft solving plans.
3.After-sales service support
After we signed the purchase contract and have a certain reputation guarantee, we will contact the professional group that responsible for ship bookings, commodity inspection, commercial invoices, packing list, insurance policy and so on, in order to provide you the perfect goods trading services, until the product you purchased properly to your hands.
4.Technological support
Our company insists on providing clients with overall solutions from equipment recommendation to debugging and installation, worker training, technical support and maintenance. Our company is provided with independent research and development system, our high reputed engineers and technicians can provide users with overall technical support.
Contact marketing assistant: Megan Shi
Skype: meganshie
Facebook: Megan Shi
Twitter: Megan Shi
Introduction:
Henan Yuxinsenda Heavy industry Machinery Co.,Ltd. is an international enterprise which experts on manufacturer, R&D and sales of stone crusher, power making machine, tile making machine, brick making machine, ore beneficiation machines and other machines. We have achieved CE& ISO9001:2008 Quality Management Certificate and obtained import and export rights since our foundation. Our products have been exported to more than 60 countries, such as Sigapore, Canada, Vietnam, north Korea, Middle east, afric, etc. And they earned a good reputation among our customers.

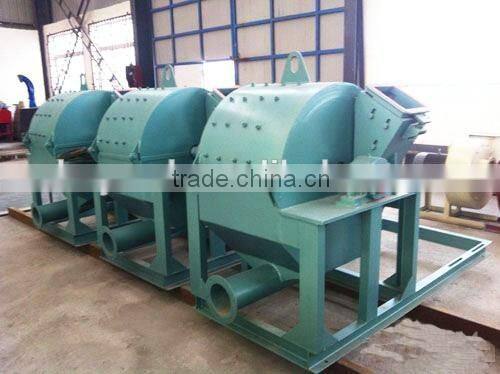

Workshop:
Customer Visit:
We are manufacturer and can design machines according to your requirements.
Welcome to visit our factory !Welcome to inquiry !
The products should be processed to be rustproof delivery.
After package, the goods are suitable for land and sea transportation.
1. Are you a factory?
Yes, we are a professional manufacture to supply you kinds of machinery. Such as:stone crusher,tile making machine, brick making machine, food making machine, and so on.
2. How long the warranty is?
100% brand new product when leaving the factory. The seller guarantee is one year from the date of trial run finish, but not to exceed 13 months from date of Bill of Lading.
3. Do you have any engineers oversea available?
Once we make the order successfully, we send our engineers to help you installation and debug if needed.
